Service - 4 Midway Amusement Games, LLC
Refer to the original equipment manufacturer’s manual for information relating to the removal and
installation of approved parts for the following components.
Power Supply Speaker Coin Meter Control Switches Rotating Base
Monitor Bezel
and Gasket
Monitor Cash Door
Assembly
Fan Assembly Power Switch or
Circuit Breaker

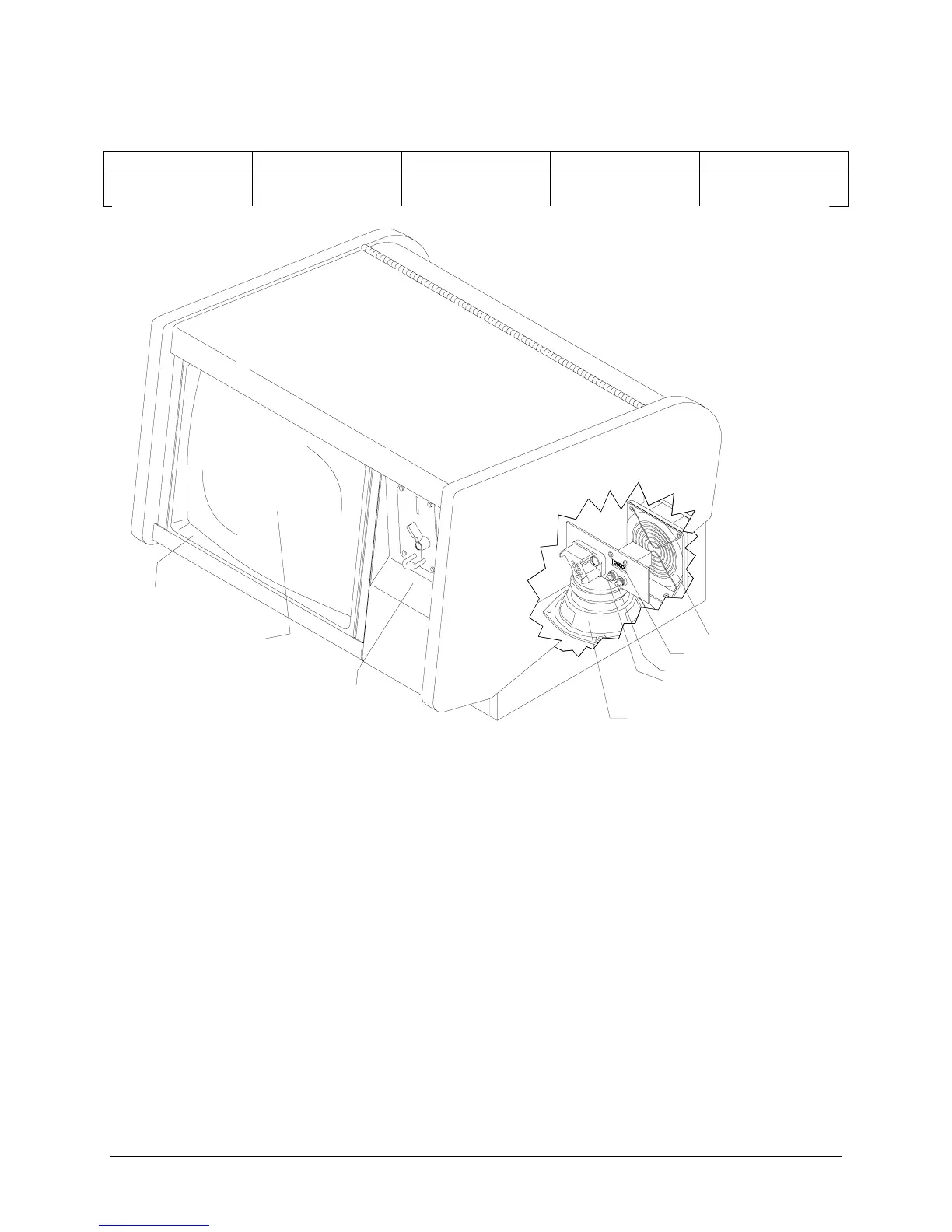

SPEAKER
COIN METER
CONTROL SWITCHES
(CALIBRATE & SETUP)
FAN ASSEMBLY
MONITOR BEZEL
AND GASKET
MONITOR
CASH DOOR
ASSEMBLY
LOCATION OF ORIGINAL COMPONENTS
♦
Signage Kit (Optional)
The original VGM sign was attached with screws to the top cover of the cabinet. If this sign is broken or
missing and an exact replacement is not available, use the optional Touchmaster
®
signage kit.
Grasp the top edge of the sign holder and pull it forward and down to free the magnet strips from the
top cover, then lift the sign up and off of the cabinet. The sign slides out at the bottom of the holder.
NOTE: Sliding may scratch the paint. Separate the magnet strips before lifting up on the sign
to avoid damage to the surface of the top cover. Clean magnets before reinstallation.
♦
Monitor Chassis Boards
Refer to the original equipment manufacturer’s manual for information about the removal and
installation of approved parts for this unit. Several different types of monitors were used in various
production runs of this device. Be certain to specify the manufacturer of your VGM’s monitor.
♦
Touchscreen Controller
Do not attempt to substitute the original Touchscreen controller for the one included in the kit.
Although they look similar, the new one has the latest software instruction set. Early devices may not
calibrate correctly or provide the highest degree of accuracy.
