Installation
*INSTALLATION*
112
Levelling and
securing the
dishwasher
To guarantee stability the dishwasher must be secured to the worktop
after levelling.

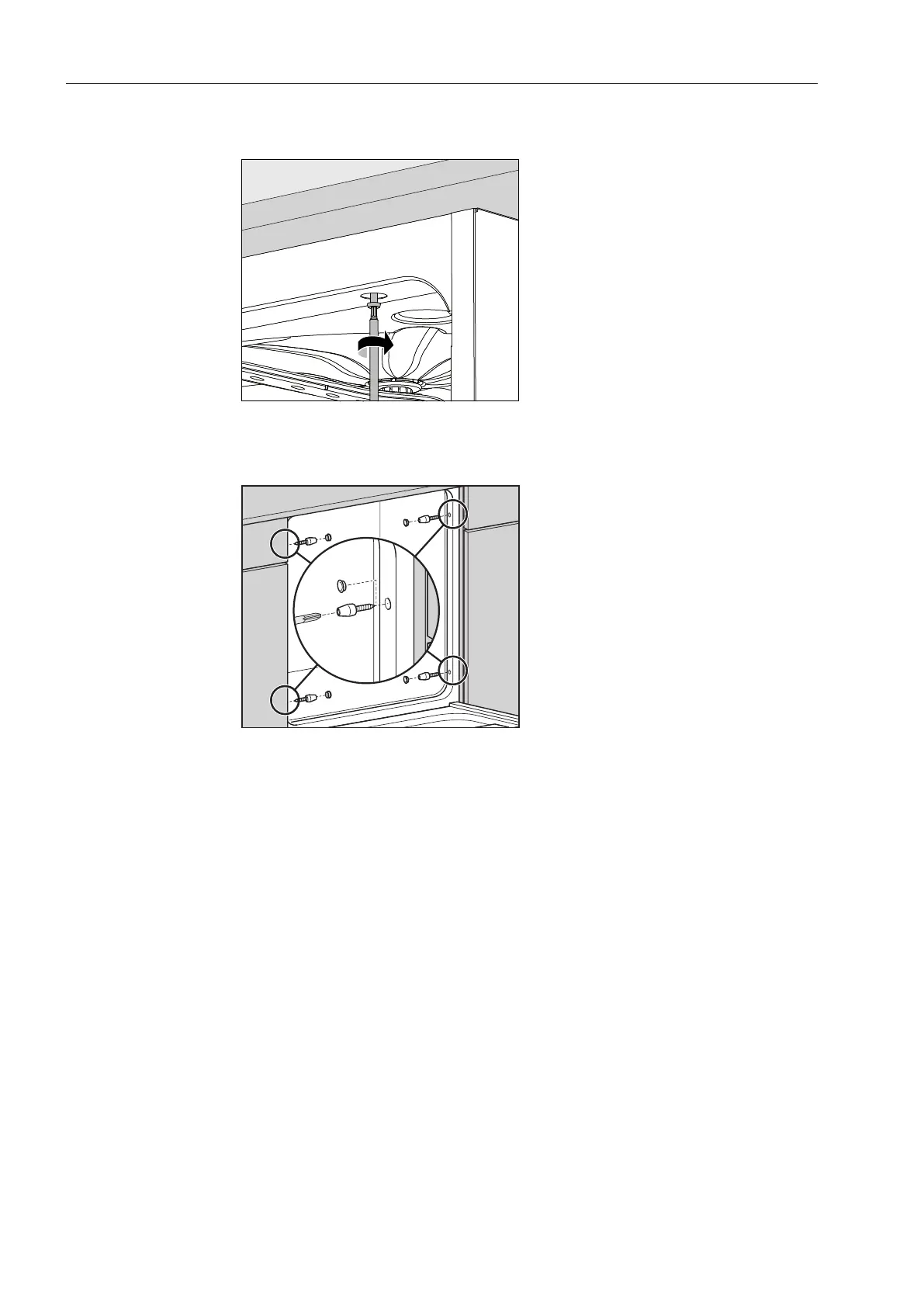

After levelling, secure the dishwasher to the continuous worktop.
With the door open, screw into the worktop through the holes in the
front trim on the left and right hand sides of the dishwasher.
With stainless steel or stone worktops the dishwasher must be
secured at the sides to the left and right adjacent cupboards with two
screws on each side.
Special screws (4x27 / TorxT20) are supplied in the accessory pack.
Holes must be drilled in the side wall in front of the door seal for this.
The gaps between built-under appliances and adjacent cabinetry
must not be filled with silicone sealant as this could compromise the
ventilation of the circulation pump.
Depending on the building-under situation, the stainless steel cover
plate supplied can be used to protect the lower edge of the worktop
against steam damage.
