Step 6: Tighten screw B in clockwise direction to fix correction rod on DEA 200.

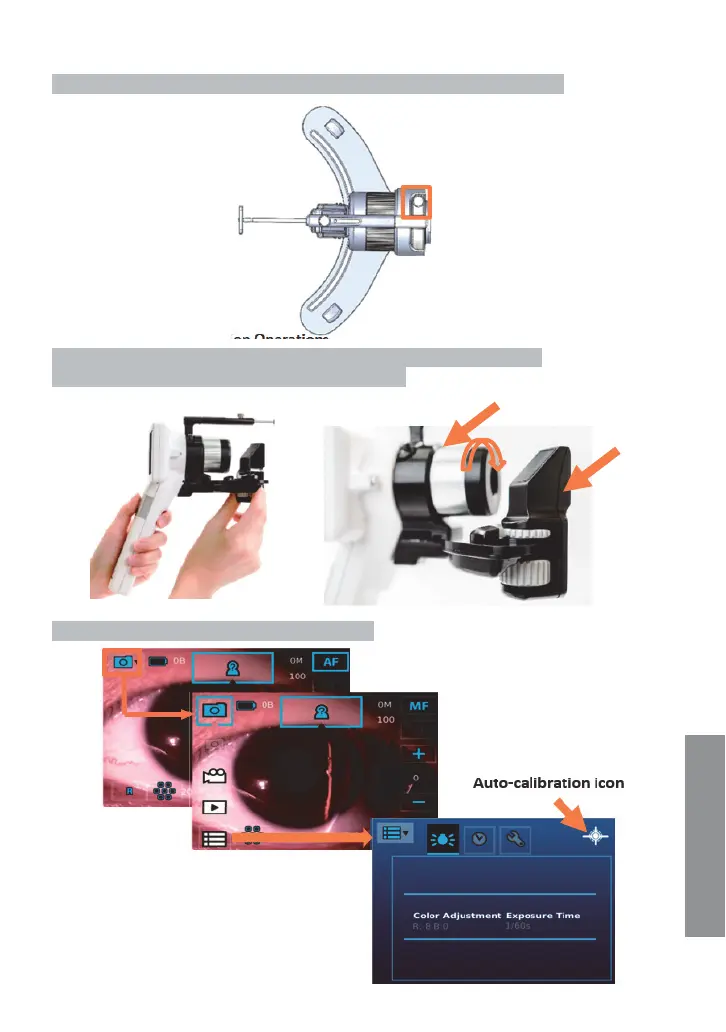

Sequence of Focus Calibration Operations
Step 1: Move Slit Module far away from Zoom lens. (more than 30 degrees)
Step 2: Rotate position of Zoom lens to Tele (16x) end.
Step 3: Enter to Auto-calibration mode by screen.
Zoom lens
Slit Module
Wide
Tele
screw B
