3. Connect M12 power cable of the solar panel to DC power connector of the device, then the
device will power on automatically.

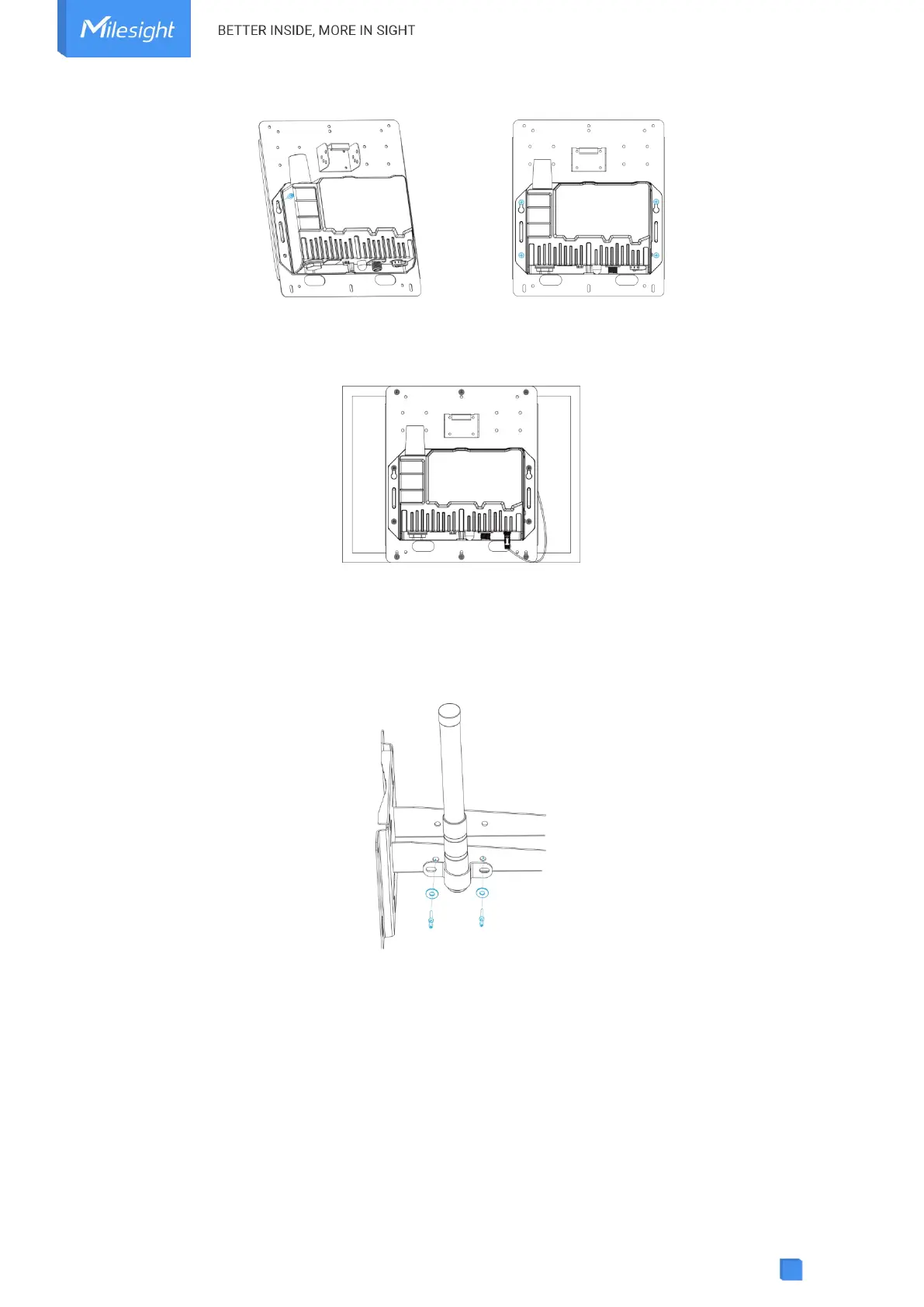

3.3.4 Antenna Installation
U-strap Mounting:
1. Pass the LoRaWAN
®
antenna through the U-strap clamp and fix the U-strap clamp to the side
of the mounting bracket using 2 flat washers and 2 screws.
2. Connect one end of the antenna coaxial cable to the LoRaWAN
®
antenna, the opposite end to
the device’s antenna connector.
