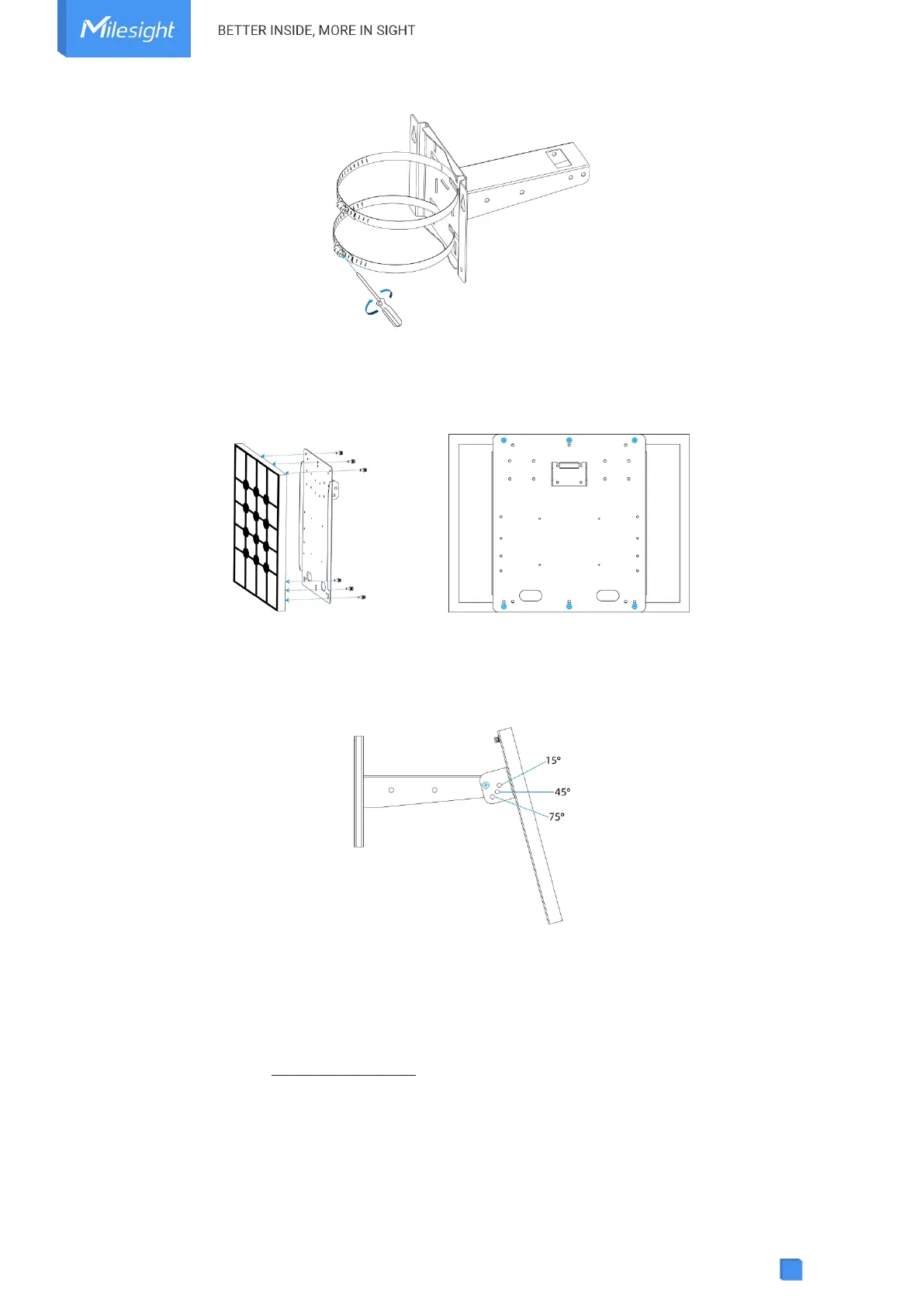

3.3.2 Solar Panel Installation
1. Fix the solar panel to the solar panel bracket using 6 fixing screws.
2. Hang the solar panel bracket onto the mounting bracket and fix both parts using 2 fixing
screws first. Adjust the angle of the solar panel bracket (15°, 45°, and 75° is optional) based on
the installation environment. Then fix the remaining two screws to the solar panel bracket.
3.3.3 Device Installation
1. Fix the device to the opposite side of the solar panel bracket using 4 screws. When
installation, it is suggested to fix the 2 screws on the top at first.
2. Install antennas as Antenna Installation chapter.
