OM-257 798 Page 56
. Hardware is common and
not available unless listed.
269 784-A
11
8
7
4
3
10
9
6
5
2
1

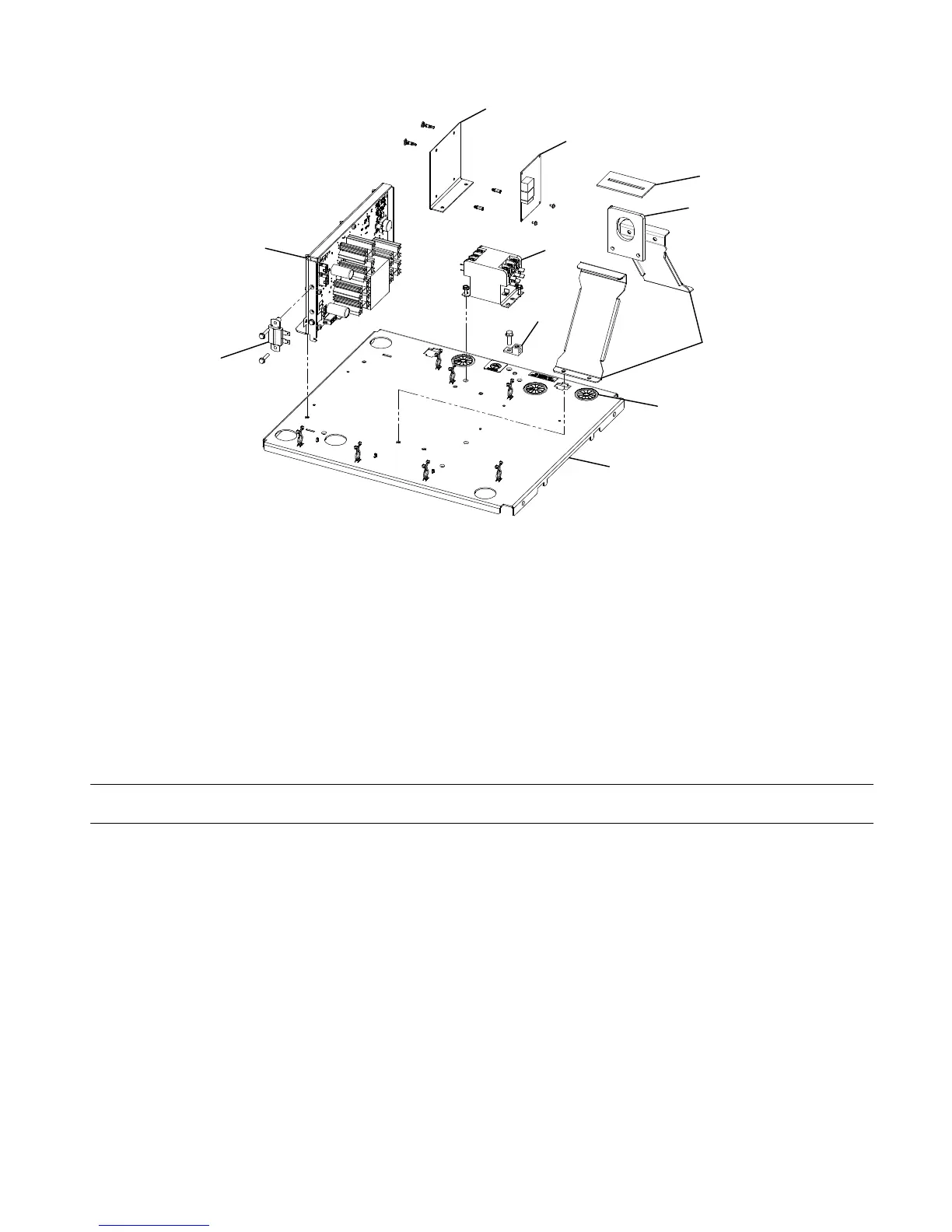

Figure 11-6. Penthouse Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 11-6. Penthouse Assembly (Figure 11-1, Item 11)
Quantity
1 245520 Bushing, Snap-in Nyl 1.062 Id X 1.500 Mtg Hole Cent 7.. .............. .. ................
2 W1 180270 Contactor, Def Prp 40a 3p 24vac Coil W/Boxlug 1.. ..... ..... .. ....................
3 145743 Lug, Univ W/Scr 600V 2-14 Wire .250 Stud 1.. .............. .. .........................
4 +265238 Panel, Upper Windtunnel 1.. ............. .. .........................................
155436 Label, Ground/Protective Earth 1................... .... ..................................
5 136076 Resistor, Ww Fxd 30 W 200 Ohm Faston Te 1.. .............. .. ........................
6 +265261 Lift Eye, Formed 2.. ............. .. ................................................
266393 Label, Warning Input Connections/Electric Shock 1................... .... ..................
7 266232 Lift Eye 1.. .............. .. ........................................................
8 256975 Seal, Lift Eye 1.. .............. .. ...................................................
9 PC19 263175 Circuit Card Assy, Wega SBC 1.. .... .... .. .....................................
10 263175 Bracket, SBC 1.. .............. .. ...................................................
11 262090 Feeder Power Board Assy (Includes) 1.. .............. .. ..............................
PC13 252512 Circuit Card Assy, Control Feeder Power Pri 1......... .... .... ......................
258016 Fuse, Mintr Cer 1 Amp 1000V AC/DC 1................... ...... ..........................
262089 Bracket, Feeder Power Board 1.................... .... ...................................
+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
