OM-257 798 Page 57
. Hardware is common and
not available unless listed.
269 785-A
12
11
2
6
4
7
10
1
5
3
14
9
17
15
13
8
16
18
19
20
21
10

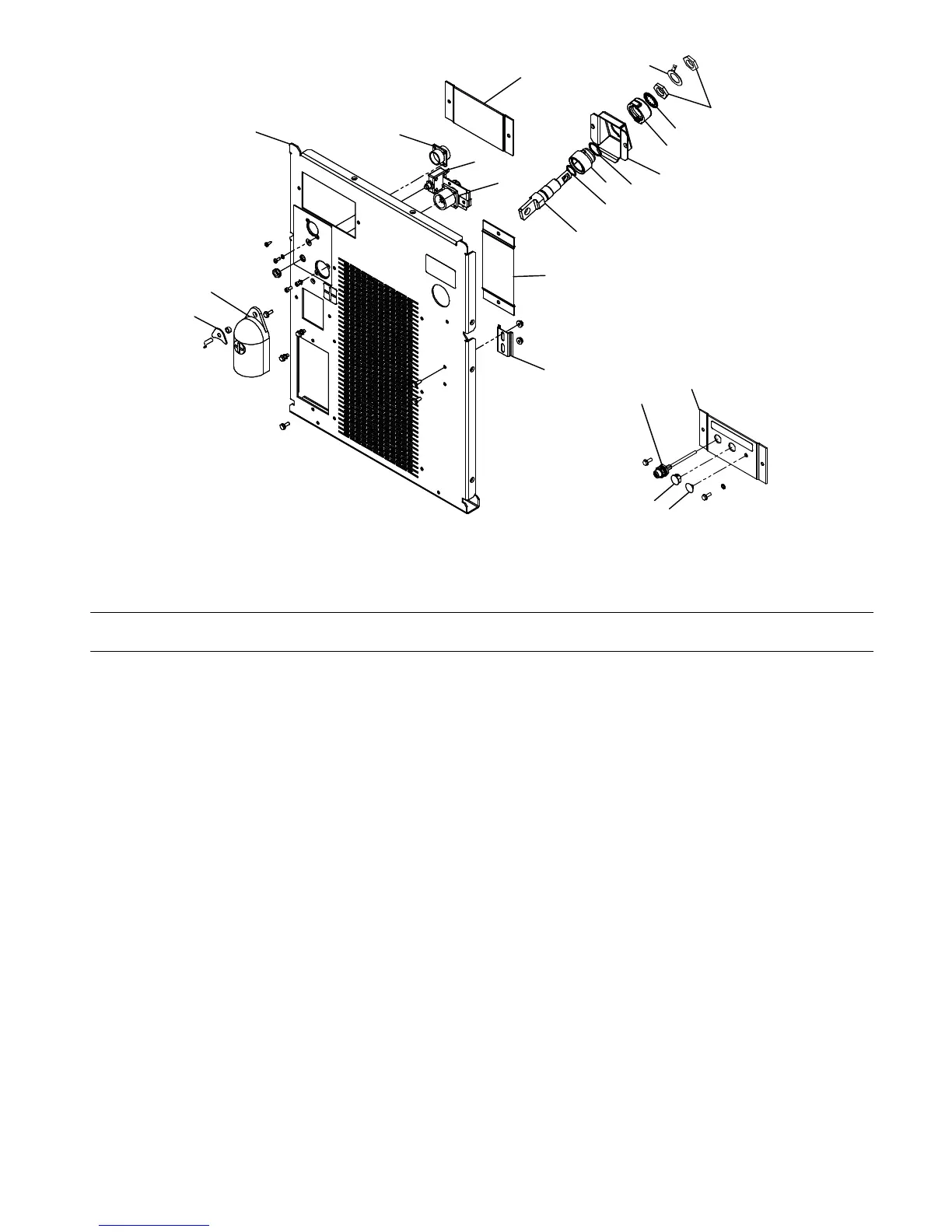

Figure 11-7. Rear Panel Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 11-7. Rear Panel Assembly (Figure 11-1, Item 5)
Quantity
1 +265244 Panel, Rear 1.. ............. .. .....................................................
258429 Label, Warning Electric Shock Can Kill 1................... .... ...........................
072154 Label, Positive (+) 1................... .... .............................................
269399 Label, Nameplate Rear Continuum 1.................... .... ..............................
269799 Terminal Pwr Assy, Output (Includes) 1.................... ... ..............................
2 250037 Insulator, Bulkhead Front .890 Od 1.. .............. .... ...............................
3 186228 O-ring, 0.739 Id X 0.070 H 1.. .............. .... .....................................
4 185718 O-ring, 0.989 Id X 0.070 H 1.. .............. .... .....................................
5 250039 Insulator, Bulkhead Rear .890 Od 1.. .............. .... ................................
6 178548 Terminal, Connector Friction 1.. .............. .... ....................................
7 260223 Terminal, Pwr Output Tabbed 1.. .............. .... ...................................
8 185714 Washer, Tooth 22mmid X 31.5mmod 1.310-1mmt Intern 1.. .............. .... ............
9 185717 Nut, M20-1.5 1.00hex .19h Brs Locking 2.. .............. .... ..........................
10 257290 Panel, Rear Blank 1.. .............. .. ...............................................
11 263536 Rail, Din 35mm X 7.5mm X 1.969in 1.. .............. .. ..............................
12 267439 Bracket, Rear Weld Conn 1.. .............. .. ........................................
13 179848 Boot, Positive Output Stud 1.. .............. .. .......................................
14 180735 Washer, Output Stud 1.. .............. .. ............................................
15 PC16 261838 Circuit Card Assy, Power Source 10 Pin Filter 1.. .... .... .. .......................
16 CB1 083432 Supplementary Pro, Man Reset 1p 10a 250vac Frict 1.. .... .... .. .................
17 269208 Plugs, W/Leads 1.. .............. .. ................................................
18 ♦257291 Panel, Blank Rear Enet 1.. ............ .. ..........................................
19 ♦259416 Blank, Snap−In Nyl .250 Mtg Hole X.700hdx.100hd Ht 1.. ............ .. ...............
20 ♦184946 Blank, Snap−In Nyl .625 Mtg Hole Black D/D 1.. ............ .. .......................
21 ♦244257 Cable Assy, Rj45 Male/M12 Female .4m Lg 1.. ............ .. ........................
♦OPTIONAL
+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
