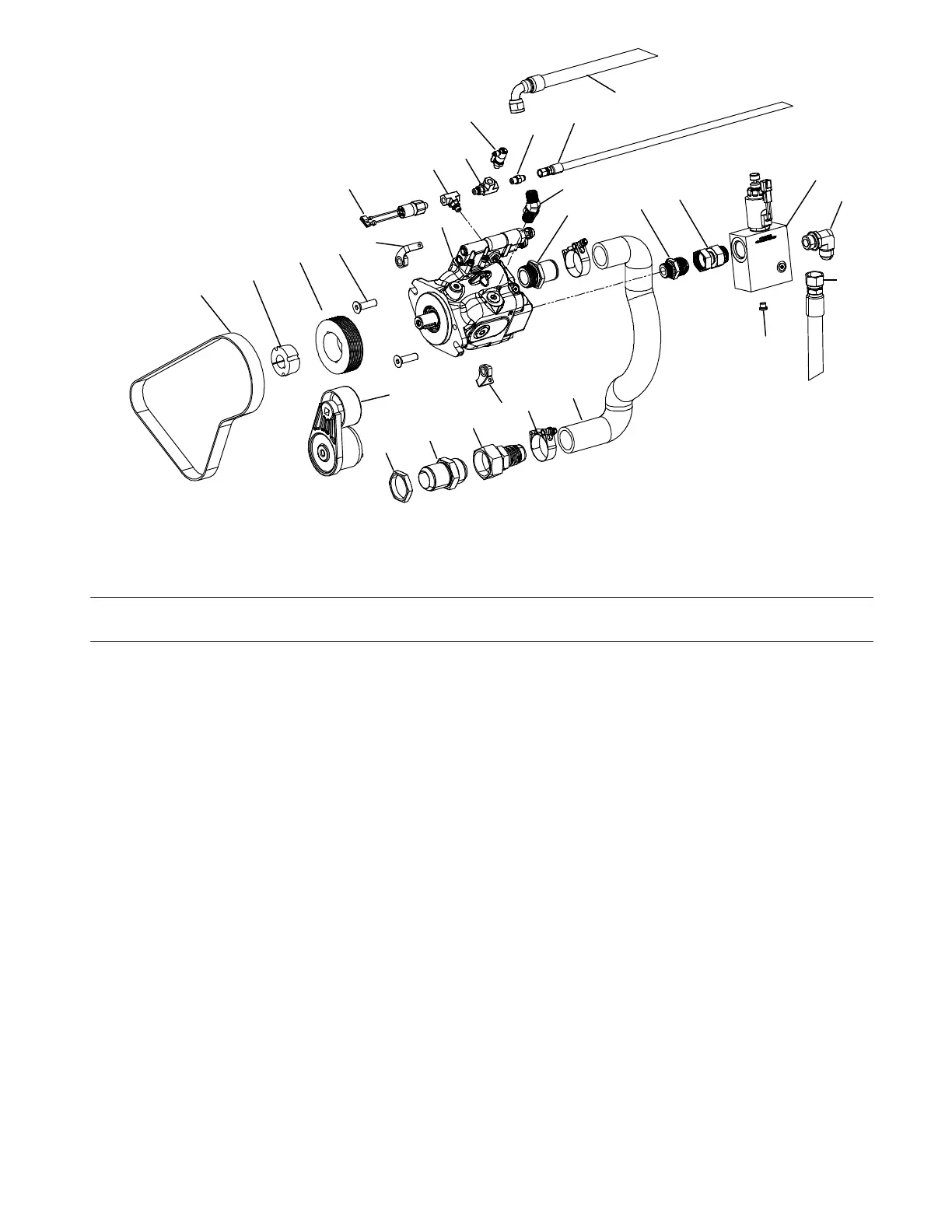

Figure 15-5. Hydraulic System Closed Center (If Equipped)
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 15-5. Hydraulic System Closed Center (If Equipped)
Quantity
1 *262560 Belt, Micro−V 8 Rib 1... .......... .. ..................................................
2 261349 Bushing, 1.000in Taper Lock 1... .......... .. ..........................................
3 261340 Pulley, Micro−V 8 Rib 4.250 Dob 1... .......... .. ......................................
4 270206 Screw, 500−13x1.75 Flathd−Soc Stl Pln 2... .......... .. ................................
5 261892 Assy, Bracket,Pump Mtg Tab 2... .......... .. .........................................
6 260996 Pump, Hyd Piston W/Load Sense Eaton 220 1... .......... .. ...........................
7 264922 Switch, Pressure Hyd 100 Psi Spst/No 1... .......... .. .................................
8 239102 Ftg, Stl Tee Sae−4(M/S) X Sae−4(F) X Sae−4(F) 1... .......... .. ........................
9 239103 Ftg, Stl Tee Sae−4(F) X Sae−4(F) X Sae−4(M/S) 1... .......... .. ........................
10 239360 Valve, Hyd Bleed 1... .......... .. ...................................................
11 239104 Ftg, Stl Sae−4(M) X Jic−4(M) 1... .......... .. .........................................
12 239108 Hose Assy, Hyd Load Sense (−4) 1... .......... .. .....................................
13 260993 Hose Assy, Hyd Case Drain (−10) 1... .......... .. .....................................
14 262086 Ftg, Stl Elbow 45 Deg Jic−10(M) X Sae−10(M/S) 1... .......... .. ........................
15 262096 Ftg, Stl Barbed 1−1/2 Hose X Sae−20(M) 1... .......... .. ..............................
16 260998 Ftg, Stl Jic−16(M) X Sae−12(M) 1... .......... .. .......................................
17 261000 Ftg, Stl Jic−16(F/S) X Sae−16(M) 1... .......... .. .....................................
18 239023 Valve Assy, Hyd Proportional 12vdc 2way Nc 1... .......... .. ..........................
19 239027 Ftg, Stl Elbow 90 Sae−12(M/S) X Jic−12(M) 1... .......... .. ...........................
20 260992 Hose Assy, Hyd Pressure (−12) 1... .......... .. .......................................
21 239106 Ftg, Stl Plug Sae-4(M) 1... .......... .. ..............................................
22 260991 Hose, Hyd Suction (−24) 1... .......... .. .............................................
23 262097 Clamp, Hose T−Bolt 1.94−2.19 2... .......... .. .......................................
24 262088 Ftg, Stl Barbed 1.500 Hose X Jic−24(F/S) 1... .......... .. ..............................
25 262094 Ftg, Stl Bulkhead Jic−24(M) X Jic−24(M) 1... .......... .. ...............................
26 262098 Nut, 1.875−12 Unf Jic−24 Bulkhead 1... .......... .. ...................................
27 239308 Tensioner, Belt W/Pulley 8 Rib 1... .......... .. .......................................
*Recommended Spare Parts.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
