Miller ENPAK - Page 93

OM-261050 Page 89
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
265 801-A
7

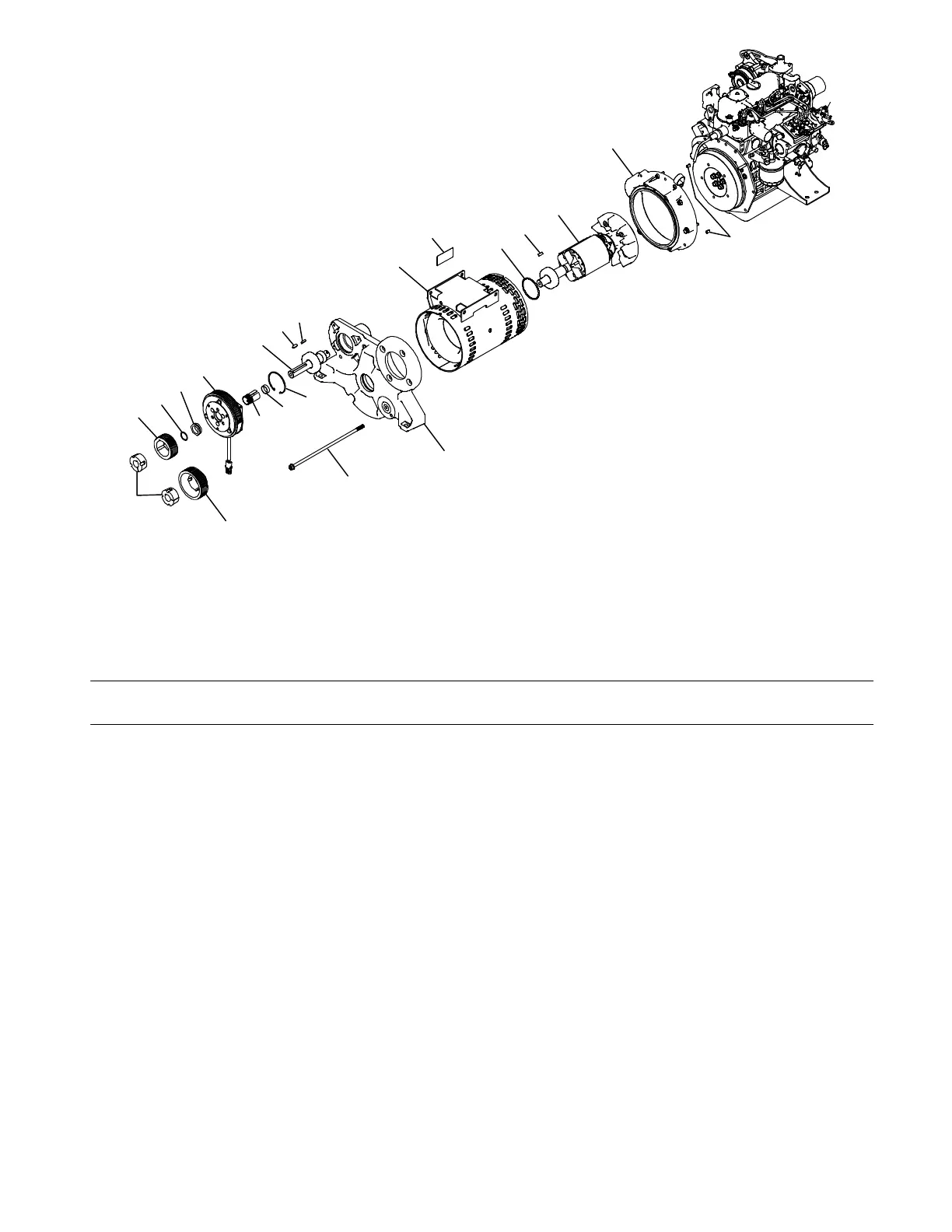

Figure 15-8. Generator Assembly
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 15-8. Generator Assembly
Quantity
1 261349 Bushing, 1.000in Taper Lock 2... .......... .. ..........................................
2 261017 Pulley, Micro−V 8 Rib 3.250 Pd 1... .......... .. .......................................
3 244933 Washer, Nylon 1.031 Id X 1.218 Od X .040 Thk 1... .......... .. ........................
4 ◊244931 Nut, Taper Clutch Bushing 1... ......... .. ...........................................
5 261014 Clutch, Electro Magnetic 12vdc W/6.25 Dia Pulley 1... .......... .. .......................
6 261573 Shaft Assy, Intermediate Clutch 1... .......... .. .......................................
7 241851 Key, Stl .250 X .250 X .750 Form A 2... .......... .. ...................................
8 244932 Key, Stl .187 X .250 X .687 1... .......... .. ..........................................
9 259651 Stator, Generator 1... .......... .. ...................................................
10 243021 Label, Warning Moving Parts Can Cause Injury 3in X 1... .......... .. ....................
11 143220 O−Ring, 2.859 Id X .139 Cs 70 Duro Viton 1... .......... .. ............................
12 260840 Rotor Assembly 1... .......... .. .....................................................
13 259254 Adapter, Engine Kubota D902 1... .......... .. ........................................
127854 Clamp, Stl Cush 1.312 Dia X .343 Mtg Hole 1................ .. ............................
14 239746 Pin, Spring Dowel Cs 8mm Odx12 2... .......... .. ....................................
15 259256 Mount, Rear Component 1... .......... .. .............................................
16 260988 Screw, 375−16 X 13.250 Hexwhd 4... .......... .. .....................................
17 189926 Ring, Rtng Int 3.006 Groove Dia X .093 Thk 1... .......... .. ...........................
18 244921 Spacer, Nylon 1.120 Od X 1.014 Id X .375 Lg 1... .......... .. ..........................
19 244930 Bushing, Stl Taper Clutch 1.000 Id 1... .......... .. ....................................
20 261016 Pulley, Micro−V 8 Rib 4.250 Pd 1... .......... .. .......................................
*Recommended Spare Parts.
◊ Use Loctite® 242 (MILLER Part No. 009 425) to secure when replacing these parts.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
