13
Installation

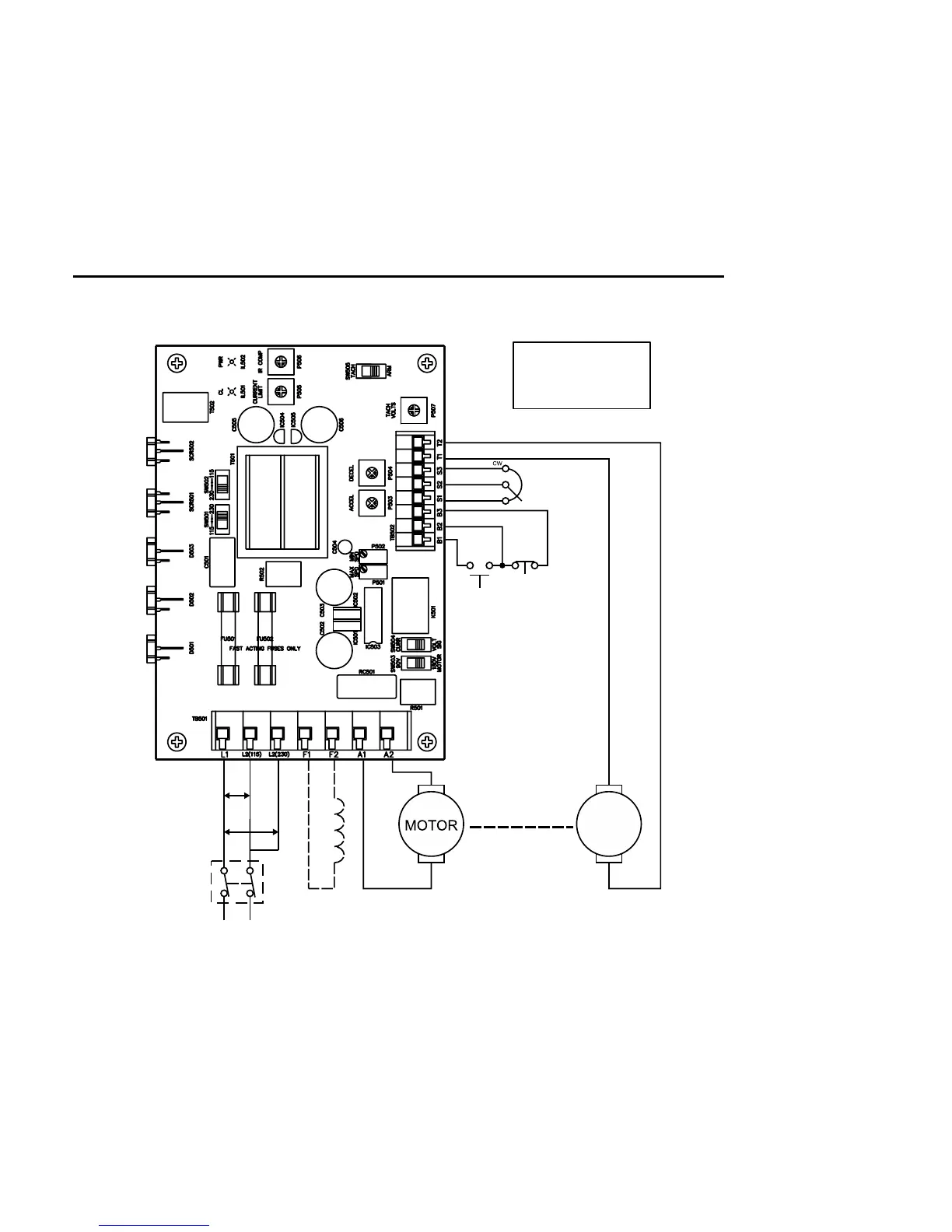

Figure 6. MM301U and MM311U AC Line, Motor and Field Connections
NOTES
1. L1 IS THE HOT TERMINAL.
2. L2/115 IS THE NEUTRAL TERMINAL FOR 115 VAC INPUT.
3. TYPICAL FIELD CONNECTIONS SHOWN. REFER TO TABLE 2 (PAGE 14)
FOR ALTERNATE FIELD CONNECTIONS.
NOTE: DO NOT make
any connections to
F1 and F2 if using a
permanent magnet motor.
AC LINE
VOLTAGE
FIELD OUTPUT
SHUNT-WOUND
MOTORS ONLY
SEE NOTE 4
SPEED
ADJUST
POTENTIOMETER
10K OHMS
N.O.
Start
N.C.
Stop
NOTE: IF PUSHBUTTONS ARE NOT
USED, CONNECT B1 TO B3.
TACHOGENERATOR
(OPTIONAL)
115
VAC
230
VAC
POWER
SWITCH
To Next Page
