Application Notes

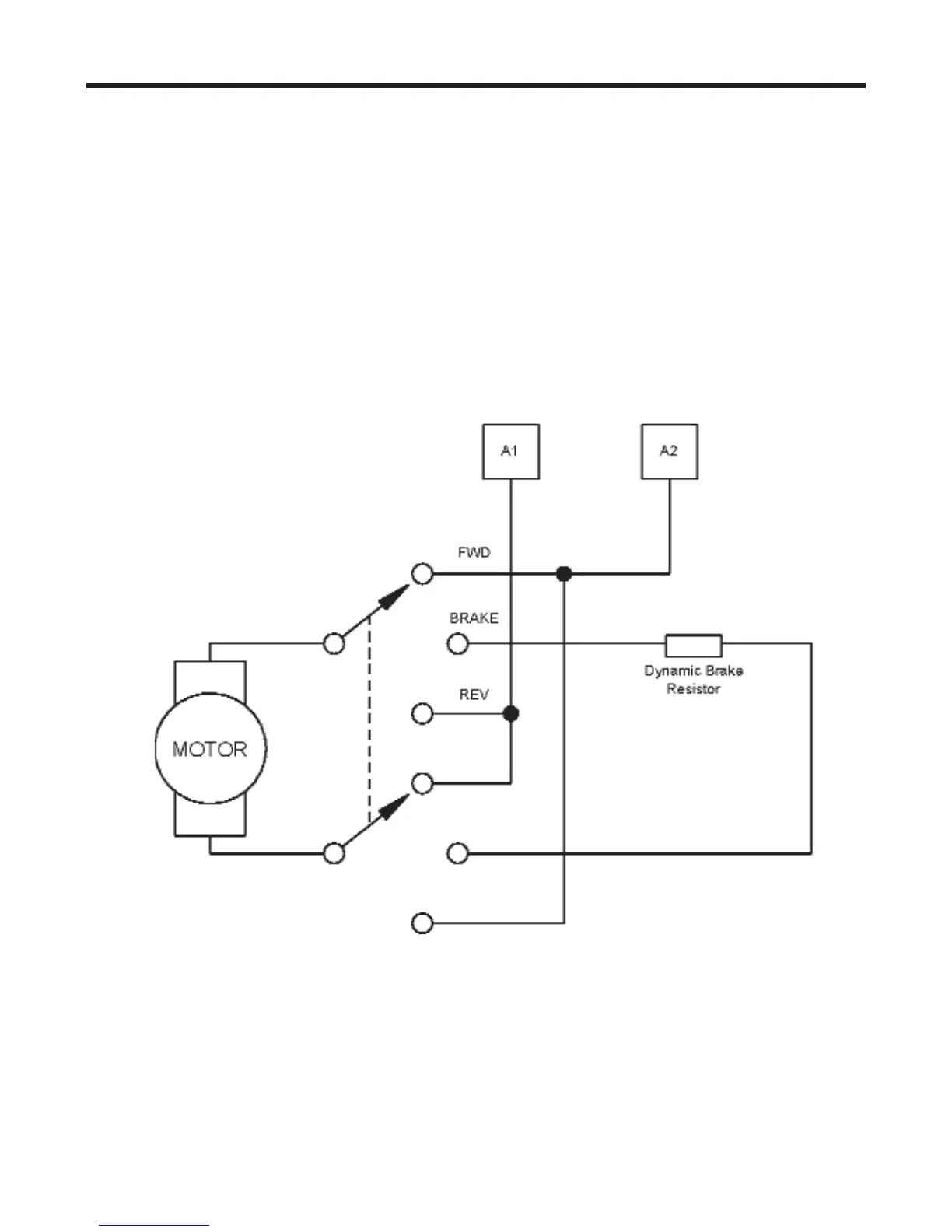

Figure 18. Reversing Circuit Connection

Reversing

A dynamic brake may be used when reversing the motor direction (Figure 18). Use a

two pole, three position switch rated for at least the maximum DC armature voltage

and maximum braking current. Wait for the motor to stop completely before switching

it to either the forward or reverse direction. See the Dynamic braking section, page

28, for sizing the dynamic brake resistor.
