Application Notes

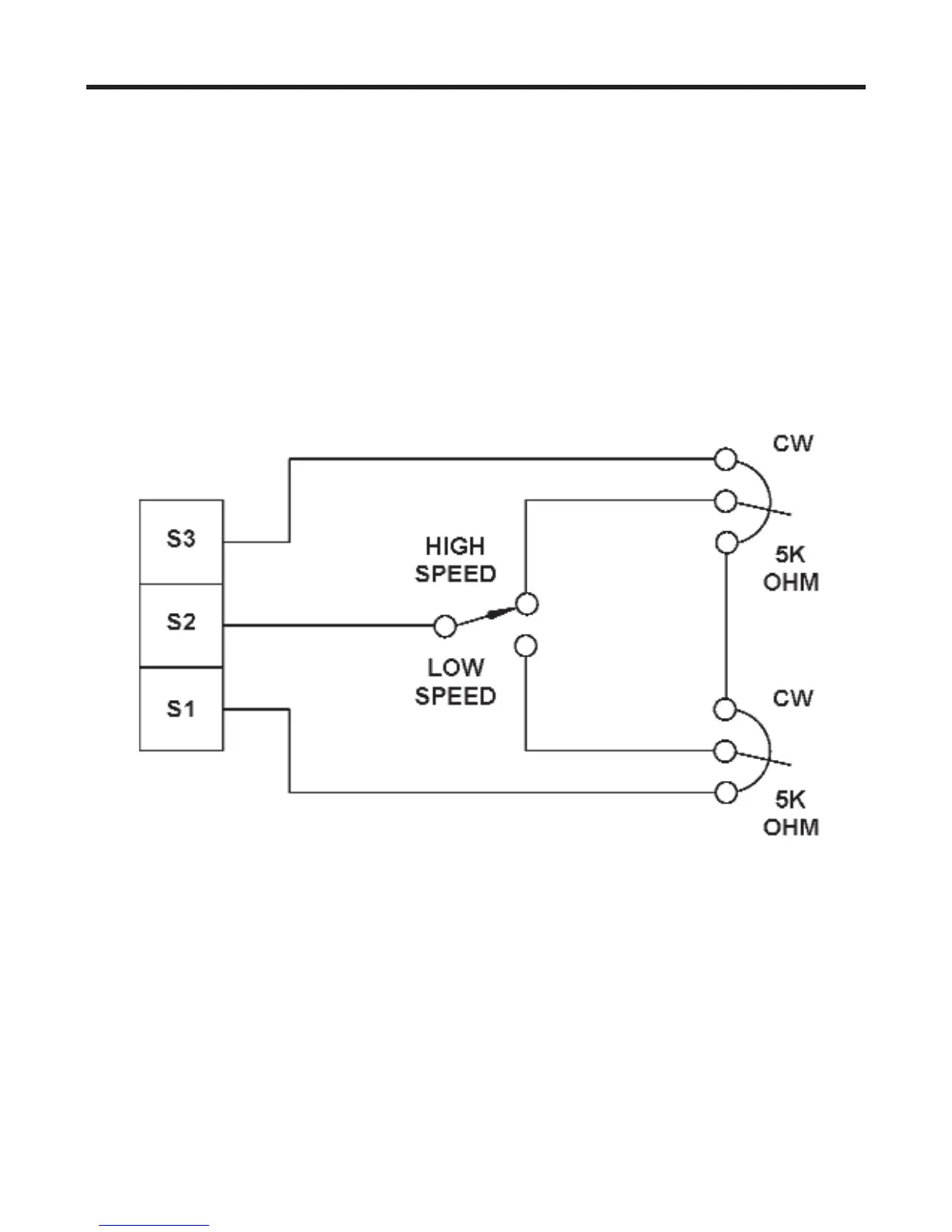

Figure 16. Adjustable Fixed Speeds Using Potentiometers in Series

Adjustable speeds using potentiometers in series

Replace the speed adjust potentiometer with a single pole, multi-position switch, and

two or more potentiometers in series, with a total series resistance of 10K ohms.

Figure 16 shows a connection for fixed high and low speed adjust potentiometers.
