Mindeo MS3690 - Dimensions

6
1-3 Dimensions

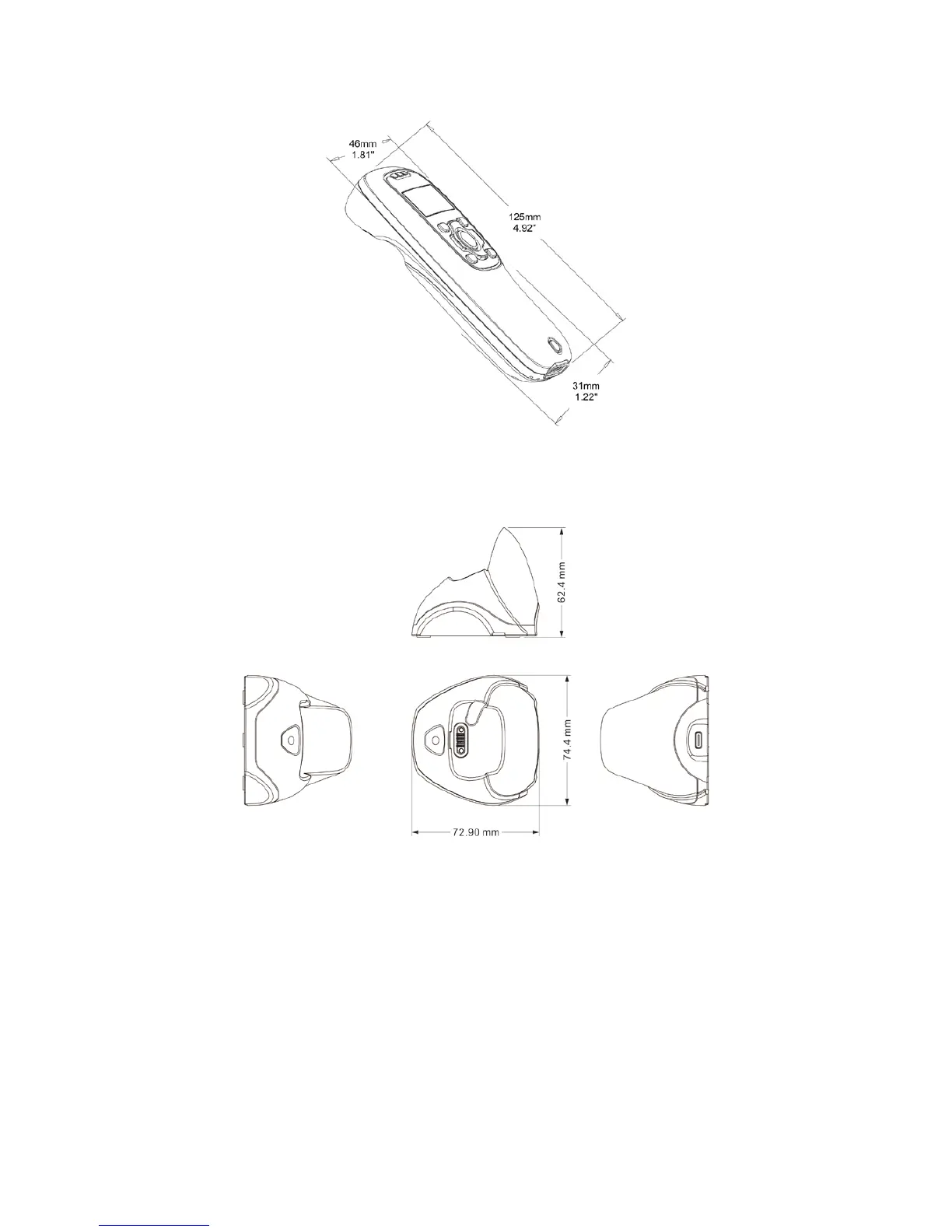

Figure 1-1 Dimensions of the terminal
Figure 1-2 Dimensions of the cradle
Note：
There are two types of cradle, one is a Bluetooth cradle, which can communicate
with the terminal for Bluetooth; the other is a charging cradle, which only supports
the charging function.
