7-2 Decode illumination and decode aiming pattern
Decode illumination mode: Enable illumination causes the terminal to turn on the illumination to aid
decoding. Disable illumination to turn off illumination for the terminal during decoding. Better quality
images could be obtained with illumination support. The effectiveness of the illumination decreases as
the distance to the target increases.
Decode aiming pattern: When this option is enabled, the terminal will project the aiming pattern during
the code capture.
Multiple-scan setting
Single-scan setting

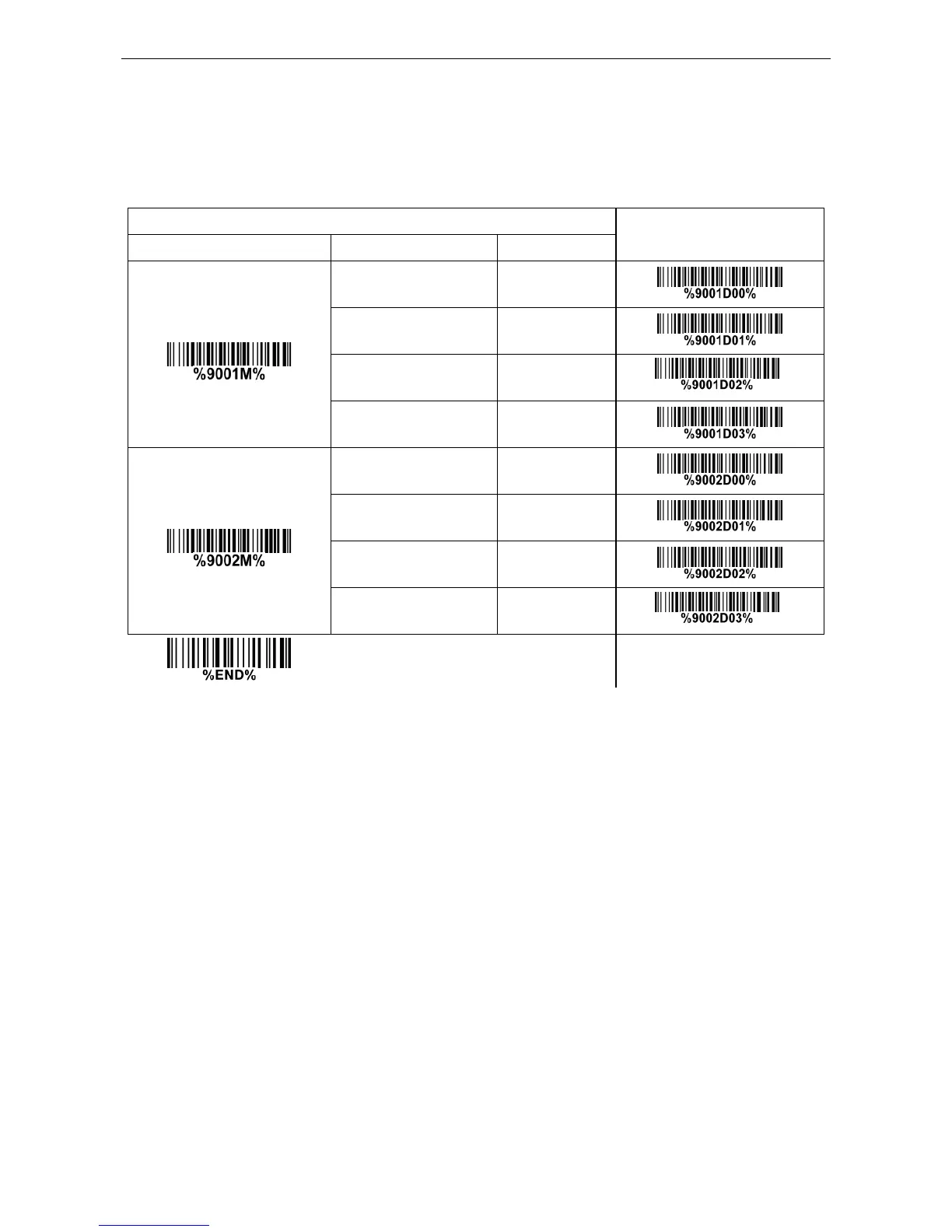

Option barcode Option Alpha. Entry
Decode illumination
Always Off 00
Always On 01
Flashing 02*
*
Always-On when
reading
03
Decode aiming pattern
Always Off 00
Always On 01
On before reading 02
On when reading 03*
*
