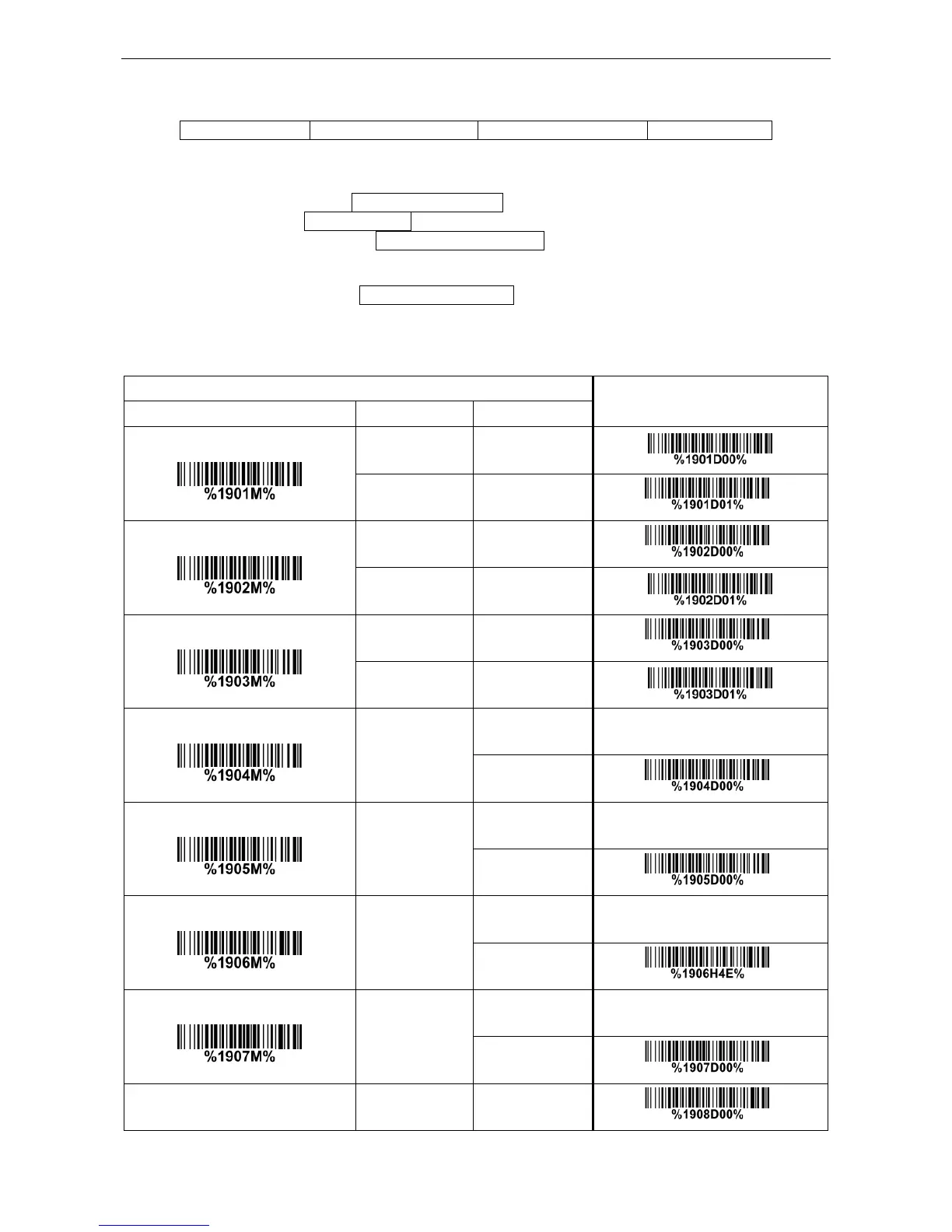

Mindeo MS3690 - Codabar

58
7-14 Codabar
Read:
Format
Start character
Data digits (variable)
Check digit (optional)
End character
Check digit verification: The check digit is made as the sum module 16 of the numerical values of all
data digits.
Check digit transmission: By setting Enable, check digit will be transmitted.
Max./Min. code length: Refer to Max./Min. code length of 7-10 Code 39
.
Code ID setting: Refer to Code ID setting of 7-5 UPC-A.
Insertion group selection: Refer to Insertion group selection of 7-5 UPC-A.
Start/End type: Codabar has four pairs of Start/End pattern; you may select one pair to match your
application.
Start/End transmission: Refer to Start/End transmission of 7-10 Code 39
.
Start/End character equality: By setting Enable, the start and end character of a Codabar barcode
must be the same.
Multiple-scan setting
Single-scan setting
Option barcode Option Alpha. entry
Read
Disable 00
Enable 01*
*
Check digit verification
Disable 00*
*
Enable 01
Check digit transmission
Disable 00*
*
Enable 01
Max. code length
00-99
00-99
00*
*
Min. code length
00-99
00-99
00*
*
Code ID setting
00-FF
16
(ASCII)
00-FF
16
<N>*
*
Insert group selection
00-66
00-66
00*
*
Start/End type ABCD/ABCD 00*
*
