85
Truncate leading G5 string setting: By setting, a defined leading character or string can be truncated.
Also a single character can be un-defined.
Repeat of a G5 character setting: While G5 is set as a single defined/un-defined character, G5 can
also be set to be repeated. This setting is ignored when the truncate number is more than the barcode
data characters. The option of “FF” for this setting is not active while the option of Truncate leading G5
string setting is “00”.

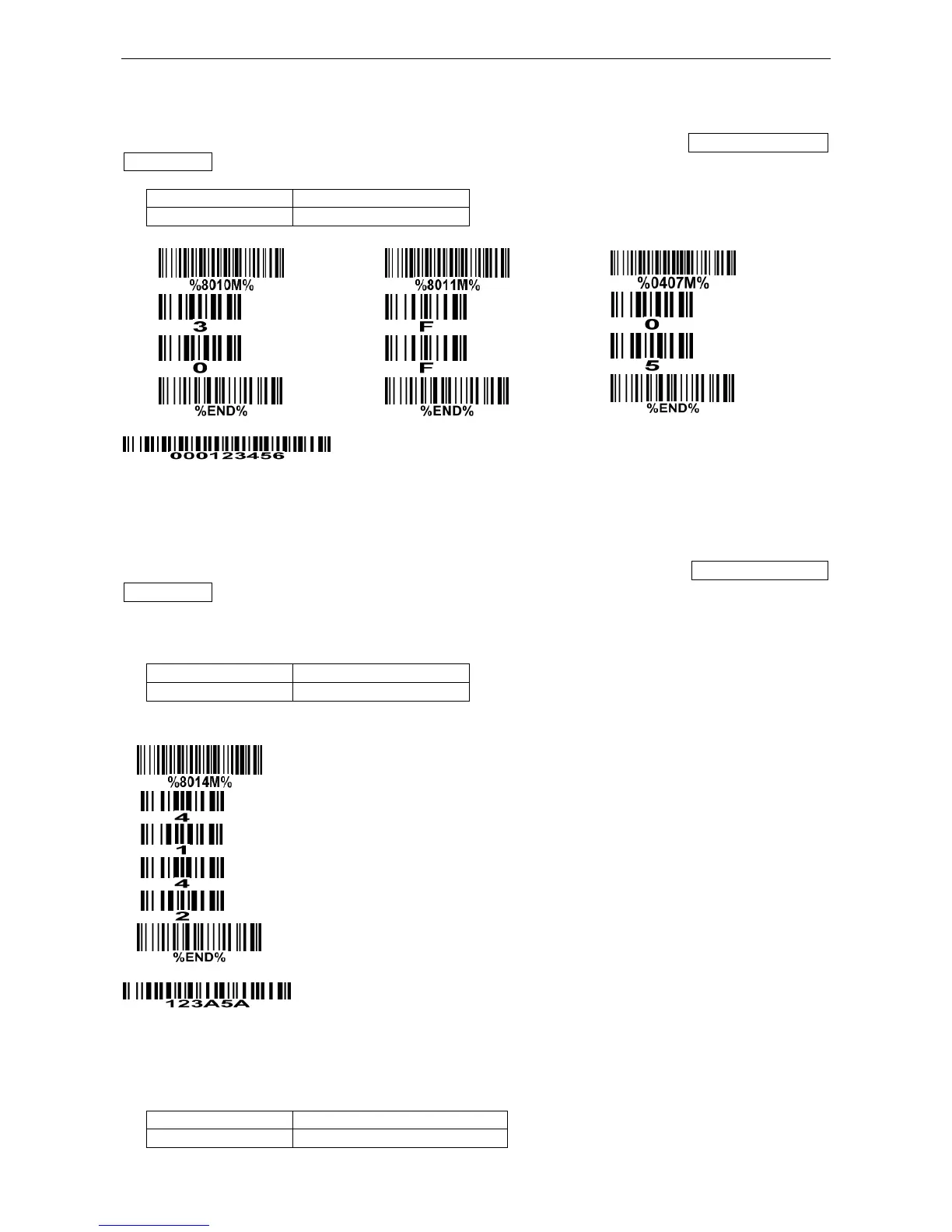

Example: Truncate all leading zeros for all symbols.
Original code data
“0 0 0 1 2 3 4 5 6”
Output code data
“1 2 3 4 5 6”
Steps: scan the following data in order.
Testing barcode:
Truncate ending G6 string setting: By setting, a defined ending character or string can be truncated.
Also a single character can be un-defined.
Repeat of a G6 character setting: While G5 is set as a single defined/un-defined character, G6 can
also be set to be repeated. This setting is ignored when the truncate number is more than the barcode
data characters. The option of “FF” for this setting is not active while the option of Truncate ending G6
string setting is “00”.
Single character C1/C2 replacement: By setting, a defined character in the data string can be replaced
by another defined character. The C1 and C2 replacement can be applied simultaneously.
Example: Replace all the “A” character in a data string with “B” character.
Original code data
“1 2 3 A 5 A”
Output code data
“1 2 3 B 5 B”
Steps: scan the following barcodes in order. The ASCII value for “A” is 41, and the ASCII value for “B”
is 42.
Testing barcode:
Multiple characters C3 replacement: By setting, a number of defined characters in the data string can
be replaced by other defined characters. The maximum number of characters to replace is 11.
Example: Replace all the “A” character in a data string with “B” character; replace “C” with “D”; replace
“E” with “F”.
Original code data
“1 2 3 A 4 C 5 6 E 7 8”
Output code data
“1 2 3 B 4 D 5 6 F 7 8”
