Mindray BA-88A Operation Manual

4-
5
Buttons Function
Add Add new tests. Do not enter a test name already exists.
Delete Delete selected test.
Save Save the test information.
Cancel After selecting a test and setting or modifying parameters for it, click
this button to cancel the setting or modification.
Return Click this button to return to the main screen.
4.2.1.2 Restriction
Enter the test reference range, linearity range, absorbance limit and so on in
Restriction page to evaluate the result and to note the operator.

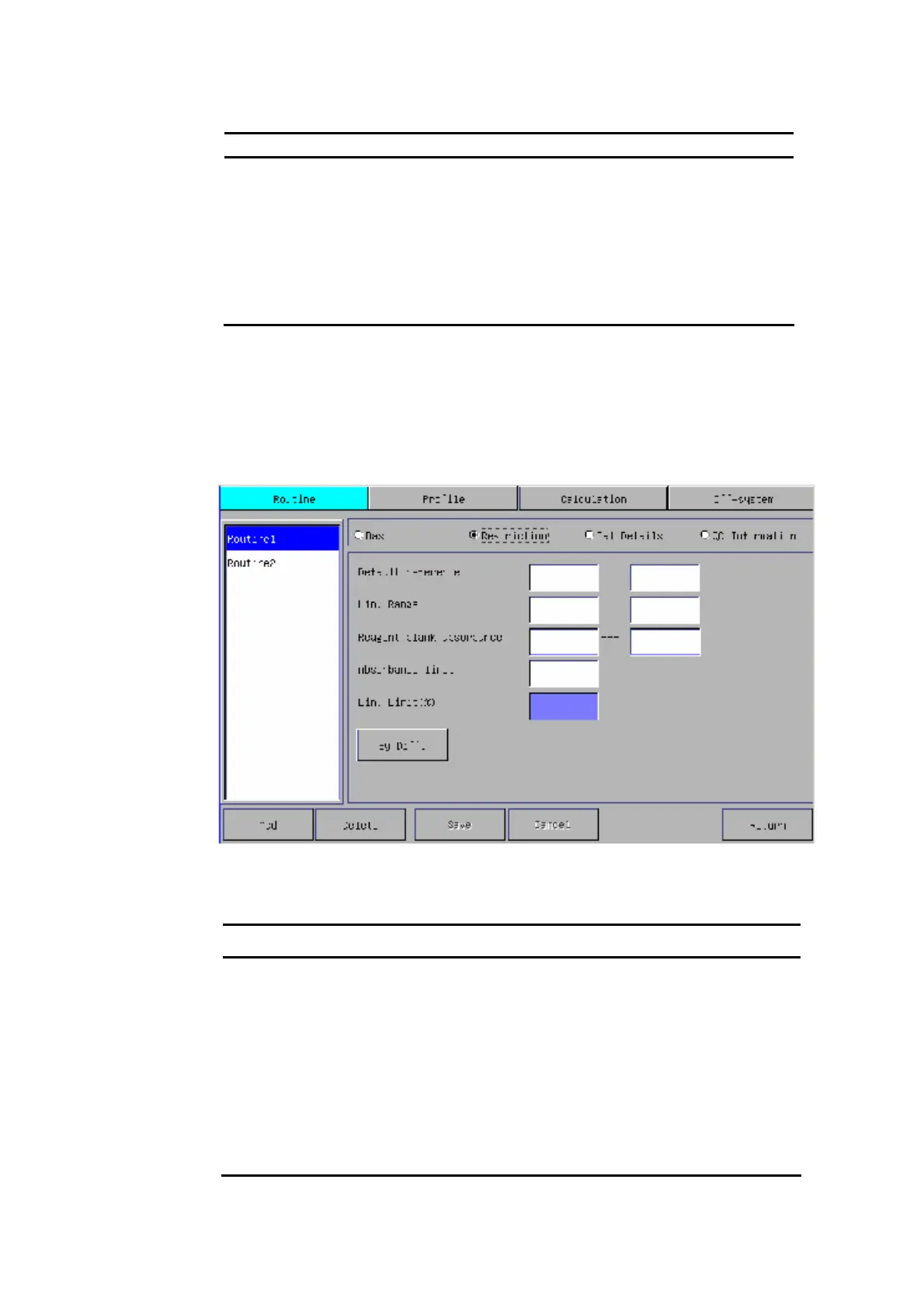

Figure 4-4 Restriction information
The following table explains the parameters on the Restriction Page.
Parameter Description
Default
reference
Normal range of test result. System will determine whether the
test result is normal based on the reference range. The default is
void.
The reference range can not be lower than 0 and should be
entered from low to high. The high and low limit should not be
equal.
Lin. Range The reportable range of the test result. The default is void.
The linearity range can not be lower than 0 and should be
entered from low concentration to high concentration. The high
and low limit should not be equal.

Mindray BA-88A Specifications

General

Light source	Halogen lamp
Display	7 inch touch screen
Printer	Thermal printer
Interface	RS232
Wavelengths	340, 405, 546, 578, 630nm
Carry-over	< 1%
Power Supply	AC 100~240V, 50/60Hz
Operating Temperature	15-30°C
