6.5.3 Removing the Bluetooth Board

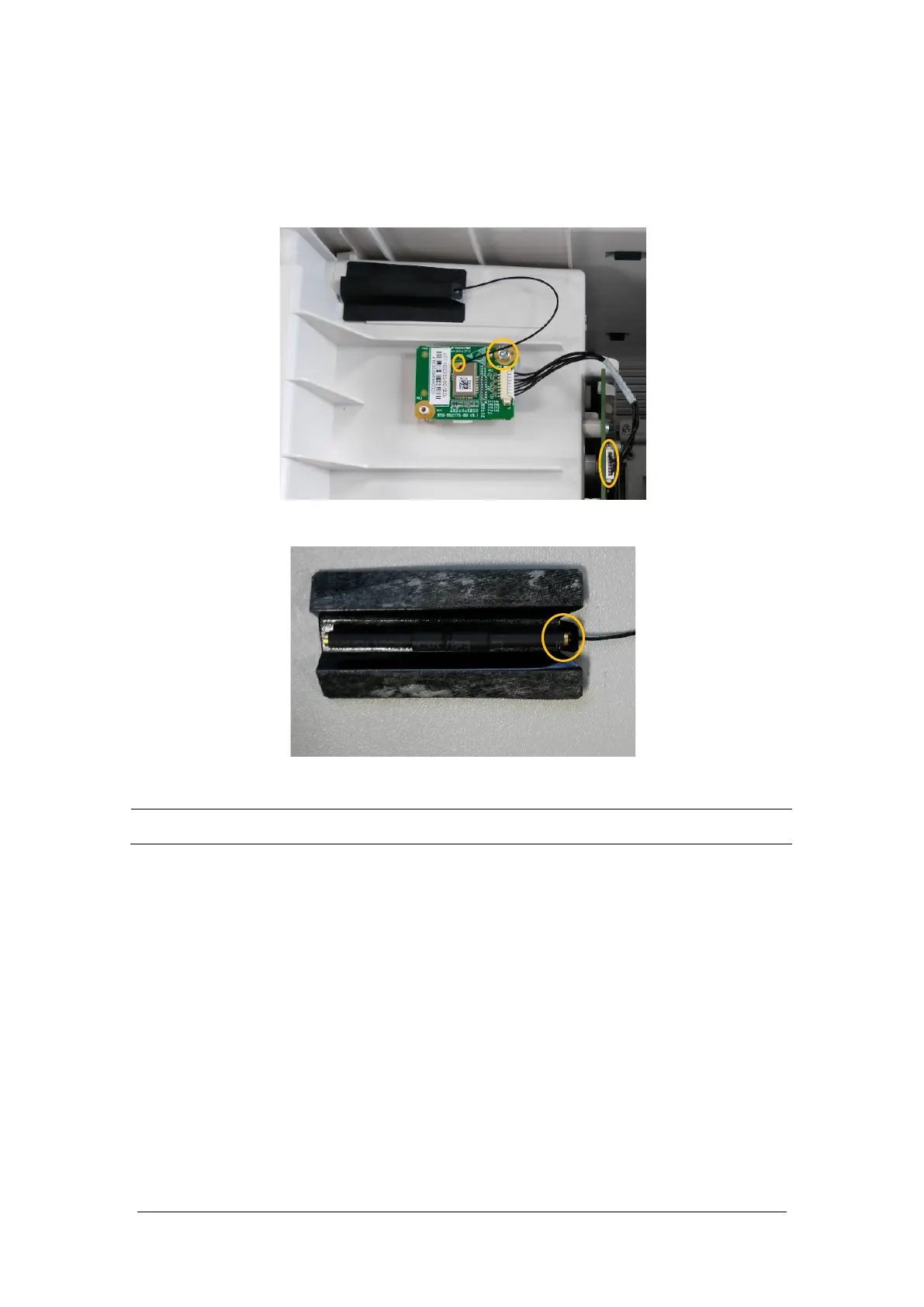

1. Pull out the MPAN board cable at the end of internal module rack communication board; then pull
out the MPAN antenna connector inserted on the Bluetooth board; unscrew one M3×6 screw to
remove the MPAN board.
2. Tear the MPAN antenna fixing piece. Then, the MPAN antenna can be removed.
NOTE
Use care when disconnecting the cable to avoid damage.
