7.2.2 N15-NLT Front Housing Assembly

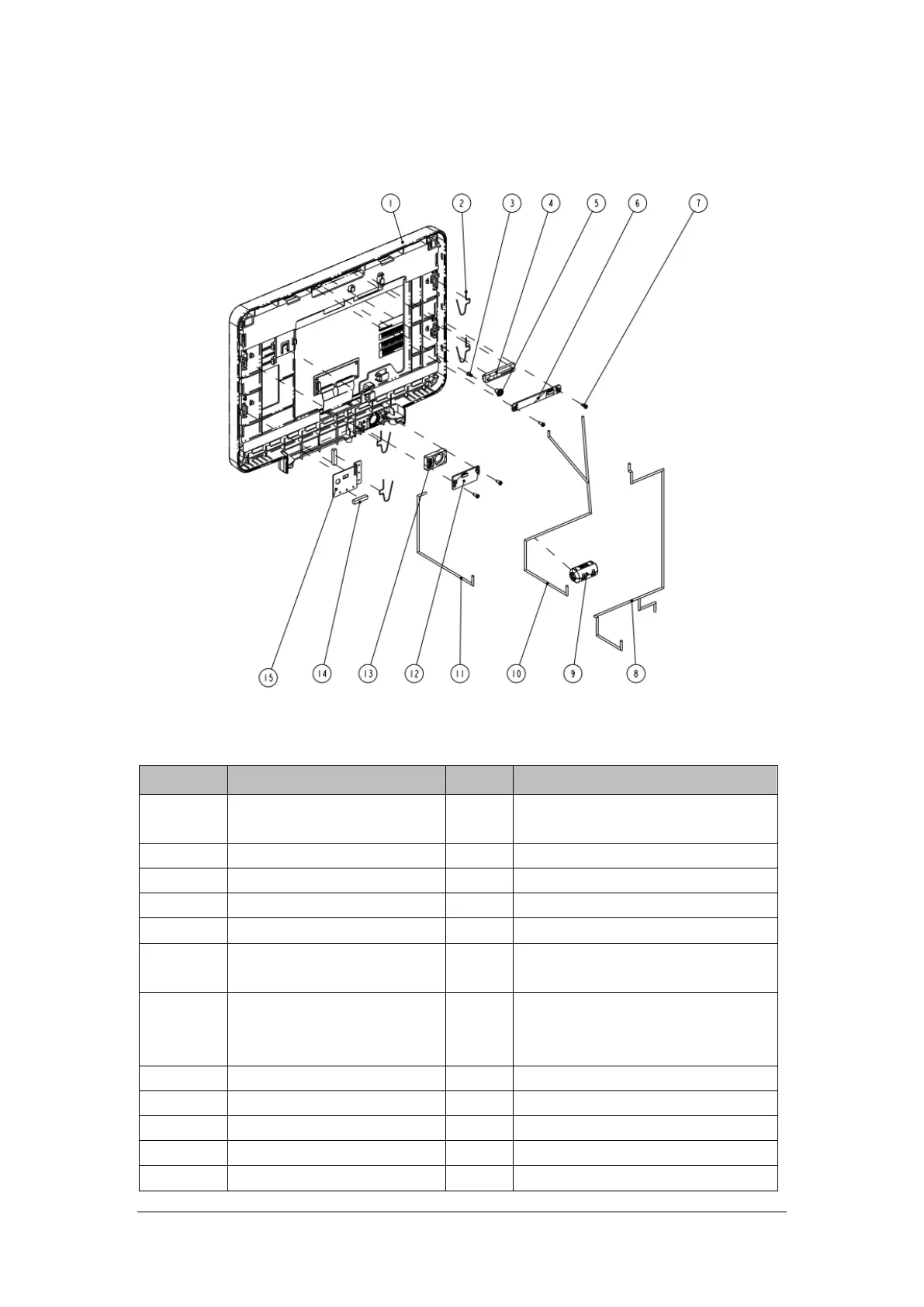

7.2.2.1 Exploded View
7.2.2.2 Parts List
ITEM No. Description Qty FRU Part No.
1
N15-NLT Front Housing Assembly
(FRU)
1 115-044544-00
2 Screen clip 4 033-000636-00*
3 Light guild pillar 1 043-007582-00
4 MK alarm cap 1 049-001135-00
5 MK hood 1 049-001214-00
6
Alarm LED and Light Sensor Board
PCBA
1 051-002693-00
7
Cross recessed pan head
thread-cutting tapping screws
PT3X8 plated with green color zinc
4 /
8 N15N17 front shell plate cable 1 009-006736-00*
9 CORE O.D=21.5mmI.D=9.5mm 1 1 /
10 N15 Mainboard to LCD cable (NLT) 1 009-006408-00*
11 N15N17 touch screen cable (NLT) 1 009-006397-00*
12 Power Switch and Indicate LED 1 051-002711-00
