3. Removing the blood oxygen board

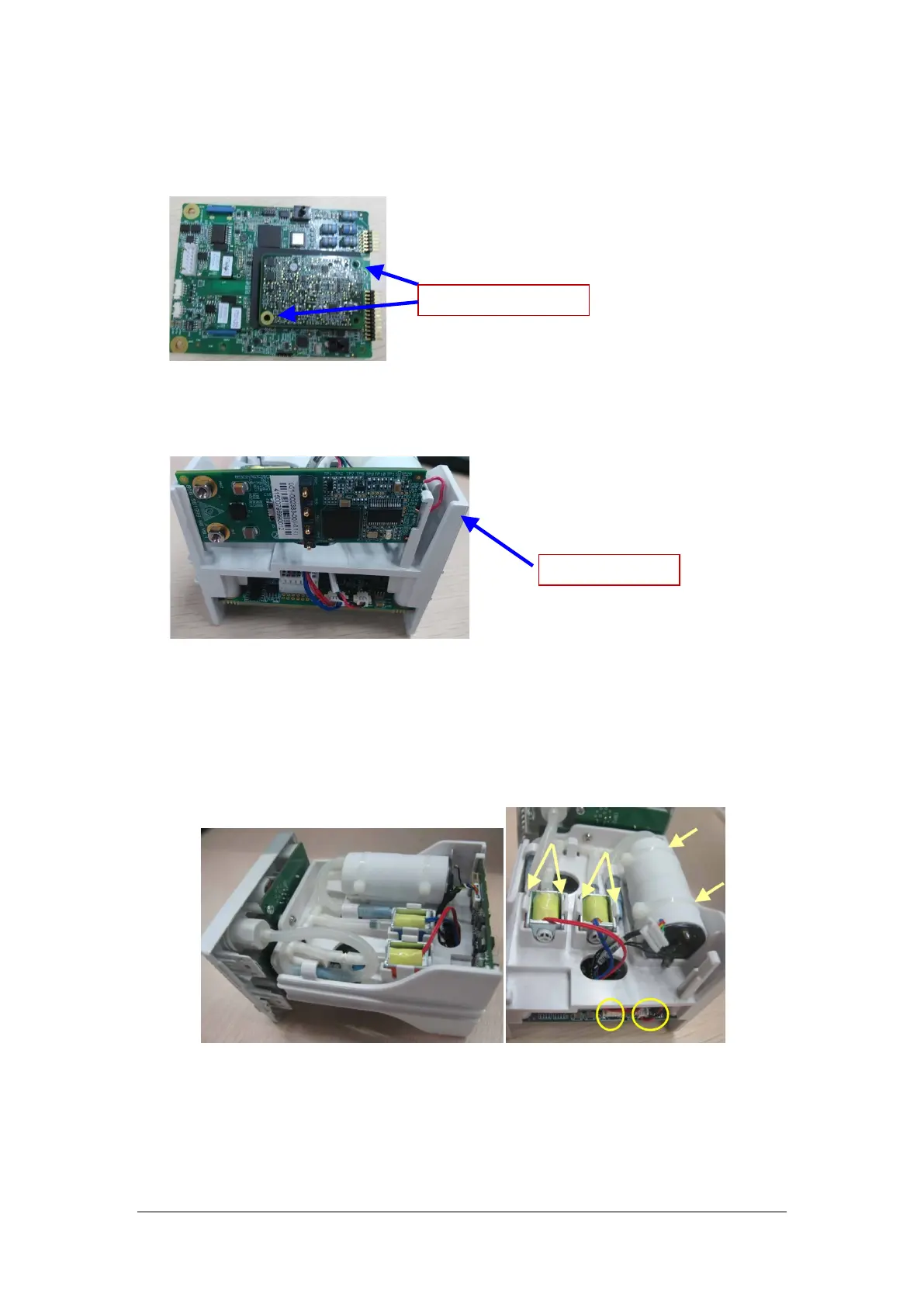

As shown in the following figure, remove the blood oxygen board screws, and then remove the blood
oxygen board.
4. Removing the infrared board
As shown in the following figure, remove the infrared board cable and then remove the infrared
board.
5. Removing the pump and valve
Cut the cable tie, disconnect the pump power cable and NIBP air tube, and then remove the pump.
Disconnect the valve power cable and NIBP air tube, use a flat-bladed screwdriver to release the clips
on the sides of the valve, and then remove the valve assembly.
Remove the screws here
Remove from this end
Cut the
cable tie
s
Release the clips
Disconnect power lines
