Mindray DP-50 User Manual

Probes and Biopsy 12-3
No.
Probe Model
Illustration
11. D6-2EA
Note:
For details of storage time and condition for disinfected probes or sterilized probes
and brackets, please refer to Technical standard for Disinfection of Medical and Health
Structures

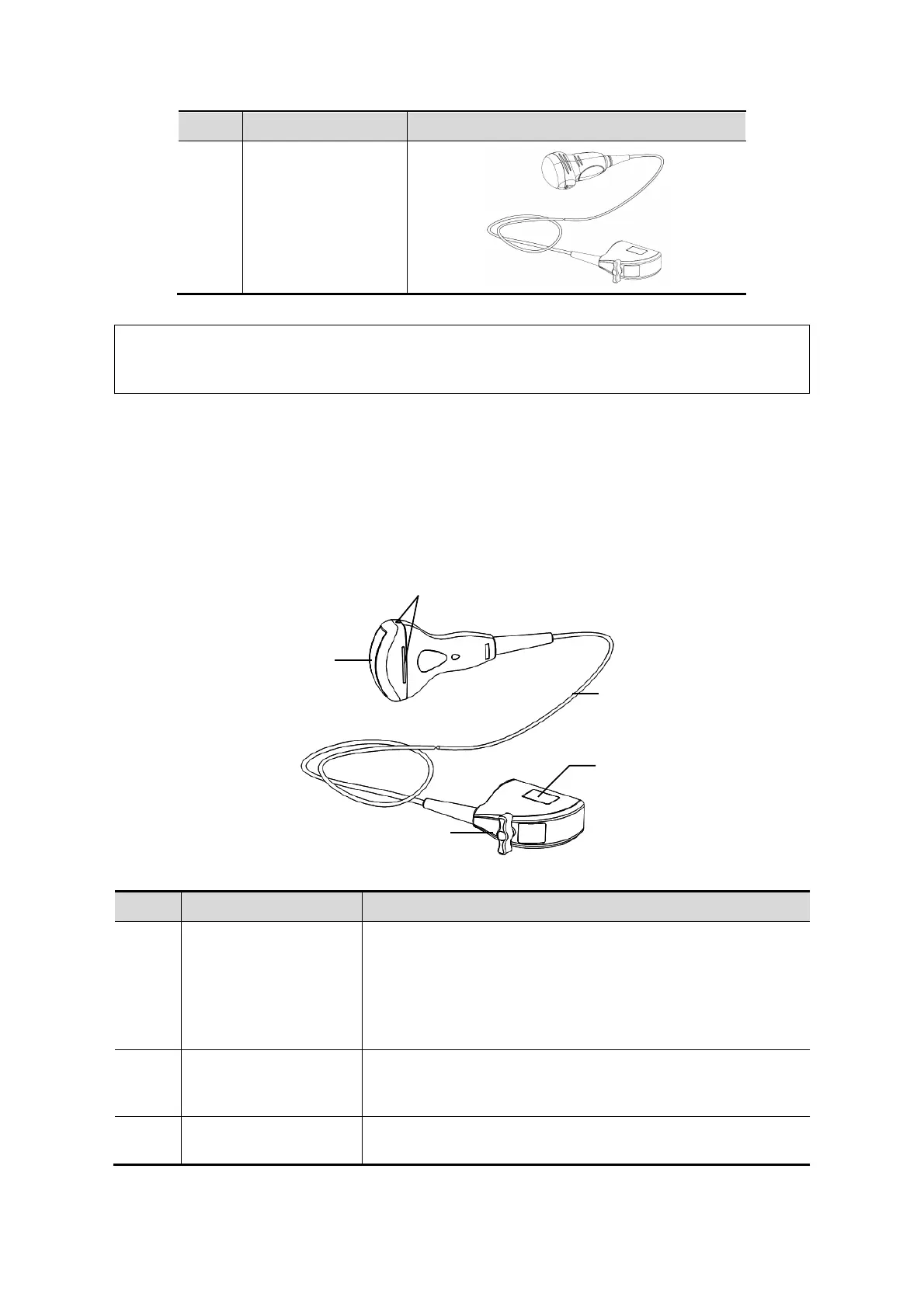

12.1.1 Name and Function of Each Part of the
Transducer
Basic structures and functions of all probes listed above are similar, and are described as
follows.
 Probe 35C50EA
<1>
<2>
<3>
<4>
<5>
No.
Name
Function
<1> Transducer head
It converts the electrical signal into ultrasound signal,
making the sound beams focus in the given direction;
meanwhile, it will receive the ultrasound signal and then
convert the received signal into electrical signal.
The lens on the surface is the acoustic lens. Apply
ultrasound gel on the acoustic lens.
<2>
Needle-guided
bracket fix tabs and
grooves
Used to mount the needle-guided bracket.
<3> Transducer cable
Used to transmit electrical signals between the transducer
body and connector.

Mindray DP-50 Specifications

General

Transducer Ports	2
Cine Loop	Yes
Type	Portable Ultrasound System
Probes	Convex, Linear
Connectivity	USB, DICOM
Power Supply	100-240V~ 50/60Hz
Applications	Obstetrics, Gynecology, Urology, Cardiology
