Probes and Biopsy 12-33
Click [Exit], and the system will exit the verification status of the guide line.

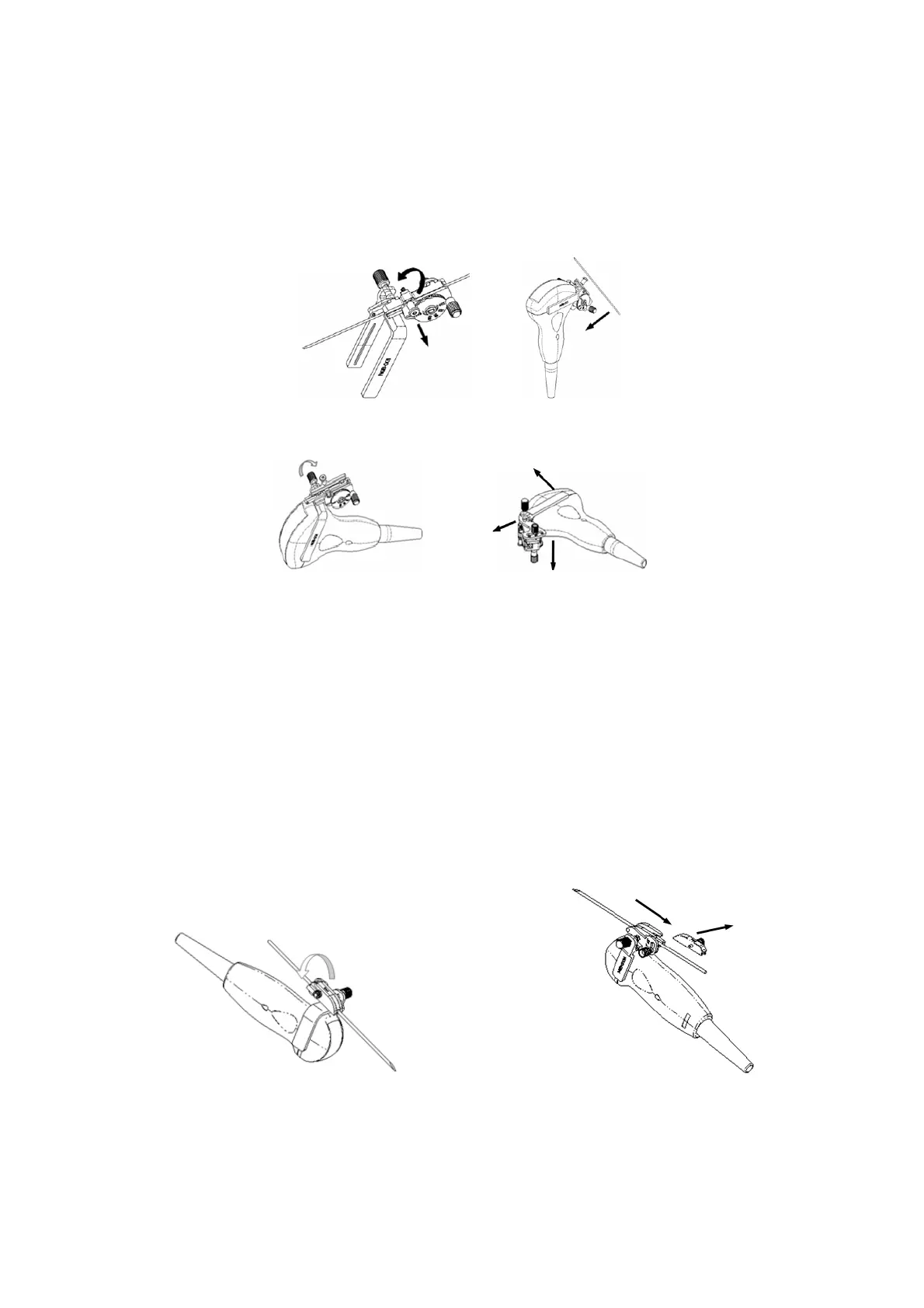

12.2.7 Removing the Needle-guided Bracket
 NGB-001
 Metal-needle detachable
1. Pull the lock pin and open up the V-shaped cover to expose the needle.
2. Separate the bracket and the transducer from the needle.
3. Screw the pinch nut to release the needle-guided bracket.
4. Separate the bracket and the transducer.
 Metal-needle undetachable
While holding the transducer and the needle-guided bracket, open the Grip knob of the
needle-guided bracket.
 NGB-002
While holding the transducer and the needle-guided bracket, open the Grip knob of the
needle-guided bracket.
 NGB-003
Metal/needle detachable needle-guided bracket:
(1) Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle’s tail.
(2) Separate the residual part of the needle-guide bracket and the transducer from the
needle.

Mindray DP-50 Specifications

General

Transducer Ports	2
Cine Loop	Yes
Type	Portable Ultrasound System
Probes	Convex, Linear
Connectivity	USB, DICOM
Power Supply	100-240V~ 50/60Hz
Applications	Obstetrics, Gynecology, Urology, Cardiology
