Mindray DP-9900Plus - Disassembly of Keyboard Board; Disassembly of TGC Board

Disassembly of DP-9900Plus/DP-9900
3-5

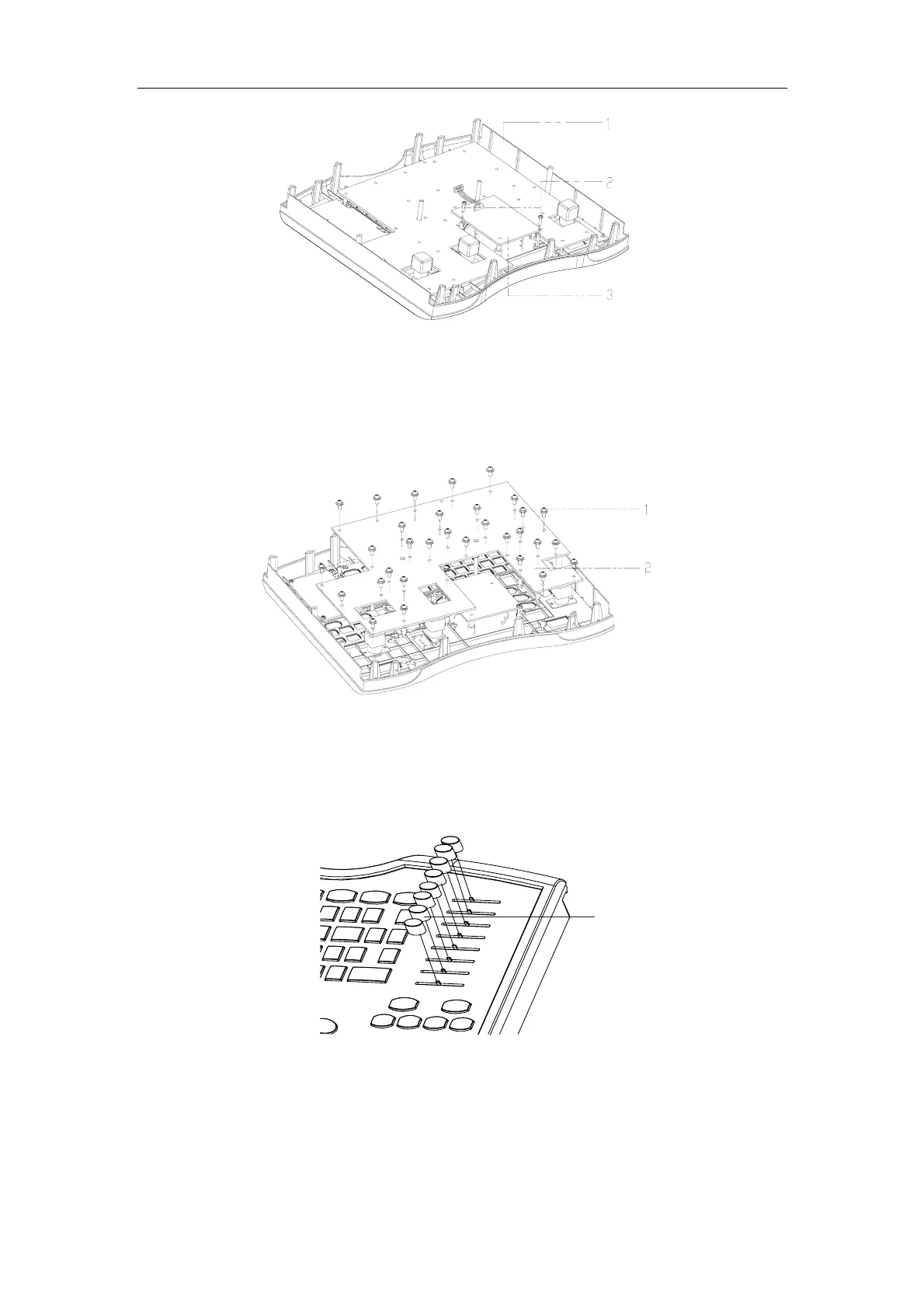

1 – Keyboard Cover 2 - M2.5×16 Screws 3 - Trackball
3.4.3. Disassembly of Keyboard Board
1. Release the 31 M3×6 screws and then remove the keyboard board.
1 - M3×6 Screws 2 – Keyboard Board
3.4.4. Disassembly of TGC Board
1. Remove the eight TGC sliders.
2. Place the keyboard face down. Disconnect the cable from the TCG board and
release the four M3×6 screws.
3. Remove the TGC board.
TGC Sliders
