Disassembly of DP-9900Plus/DP-9900
3-24
the support arm upward.

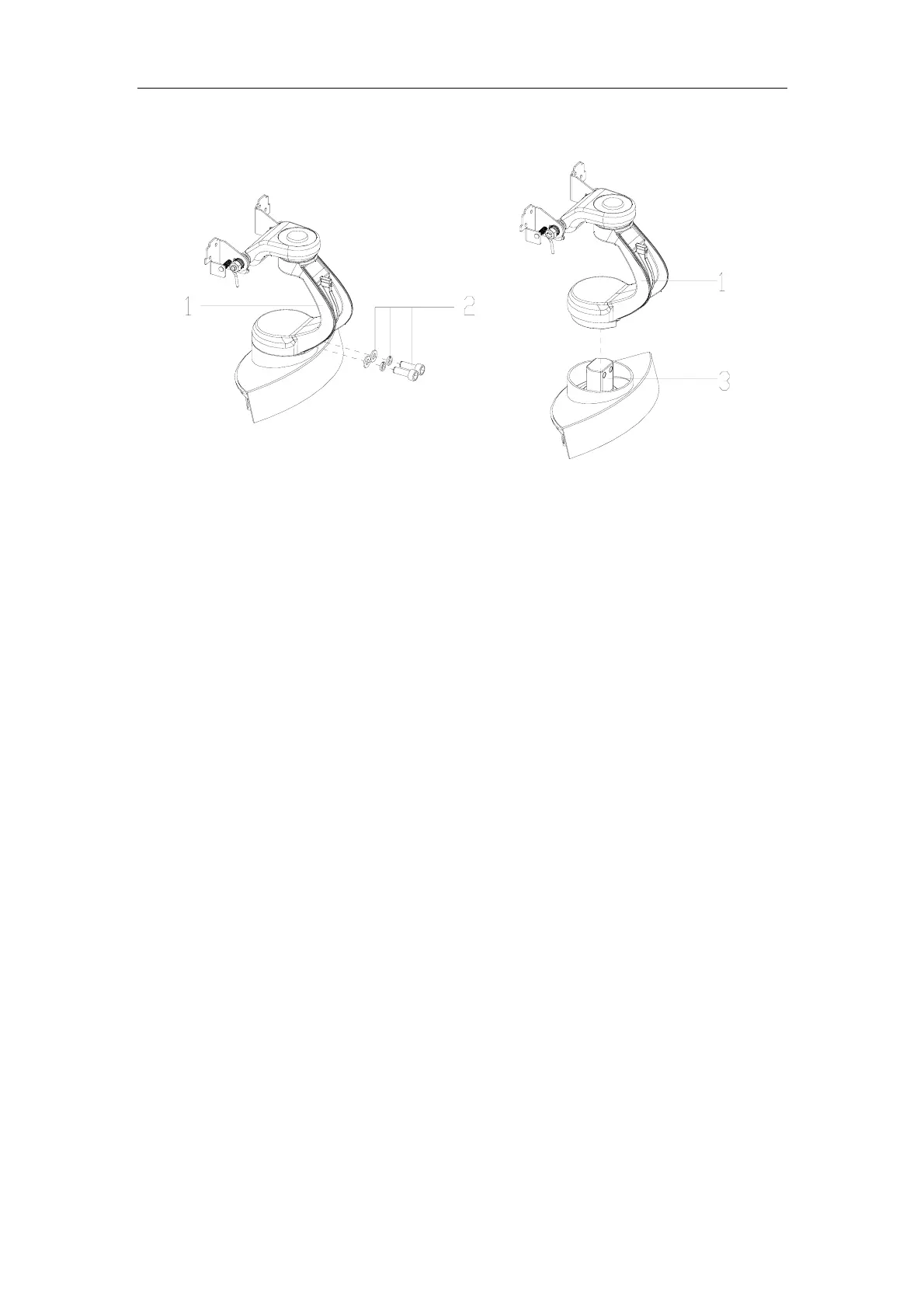

1. Support arm assembly 2. M8X25 inner hex screws with washers 3. Fixing base for
rotation (DP-7700)
Disassembly of the LCD support arm assembly (2)
