17 Probes and Biopsy
Operator’s Manual 17 - 79
10~17G hard needle (vTRAX). Diameter: 2.0-3.3mm. Needle should be of non-inference to
the sensor. Refer to manual provided by manufacturer for disinfection information.
• Needle sensor
Manufacturer: CIVCO.
Product number: 610-1080
• Needle sensor support and sterile cover (disposable)
Manufacturer: CIVCO
Product number: 610-1059
• Probe sterile sheath
Manufacturer: CIVCO
• Magnetic navigator
Magnetic controller, generator and probe sensor. Refer to “6.15.2 Magnetic Navigator” for
details. Abdomen sensor is necessary under Fusion imaging mode.
Refer to manufacturer manual for details about installation and disinfection of the magnetic
navigator. Contact the magnetic navigator if necessary.
To order needle sensor and needle sensor support, contact:
• CIVCO Medical Instruments Co.
• 102 First Street South, Kalona, IA 52247-9589 USA
• Tel: 1-319-656-4447
• E-mail: info@civco.com
• http://www.civco.com
Perform the following procedure:
1. Refer to “6.15.2 Magnetic Navigator” for installation of magnetic controller, auxiliary power
line, USB cable, and magnetic generator and probe sensor. Abdomen sensor is necessary under
Fusion imaging mode.
2. Wear the probe sterile sheath after probe sensor and bracket are installed.

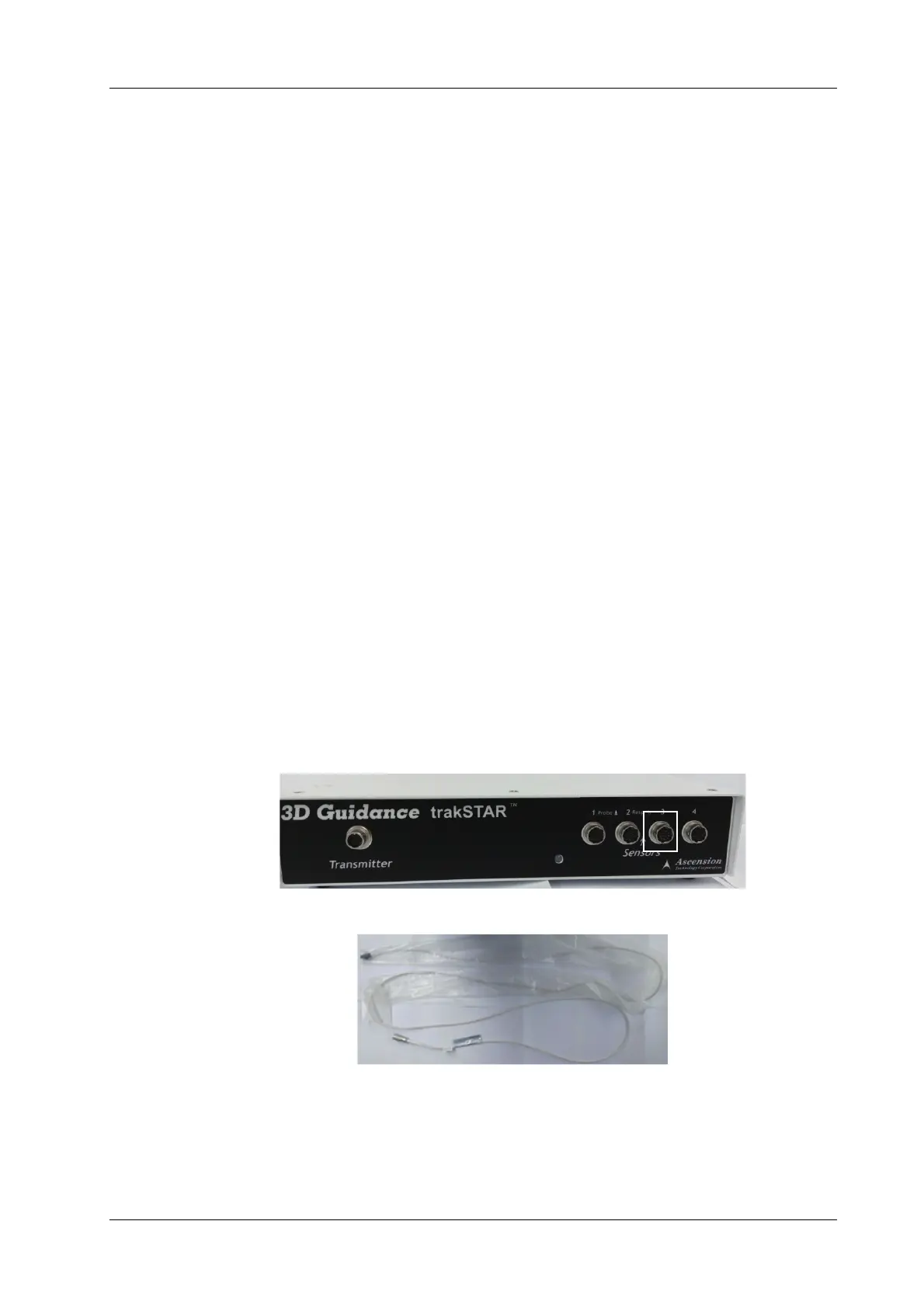

3. Connect the needle sensor to the 3rd port on the magnetic controller.
4. Put on the sterile cover onto the needle sensor.
