17 - 80 Operator’s Manual
17 Probes and Biopsy

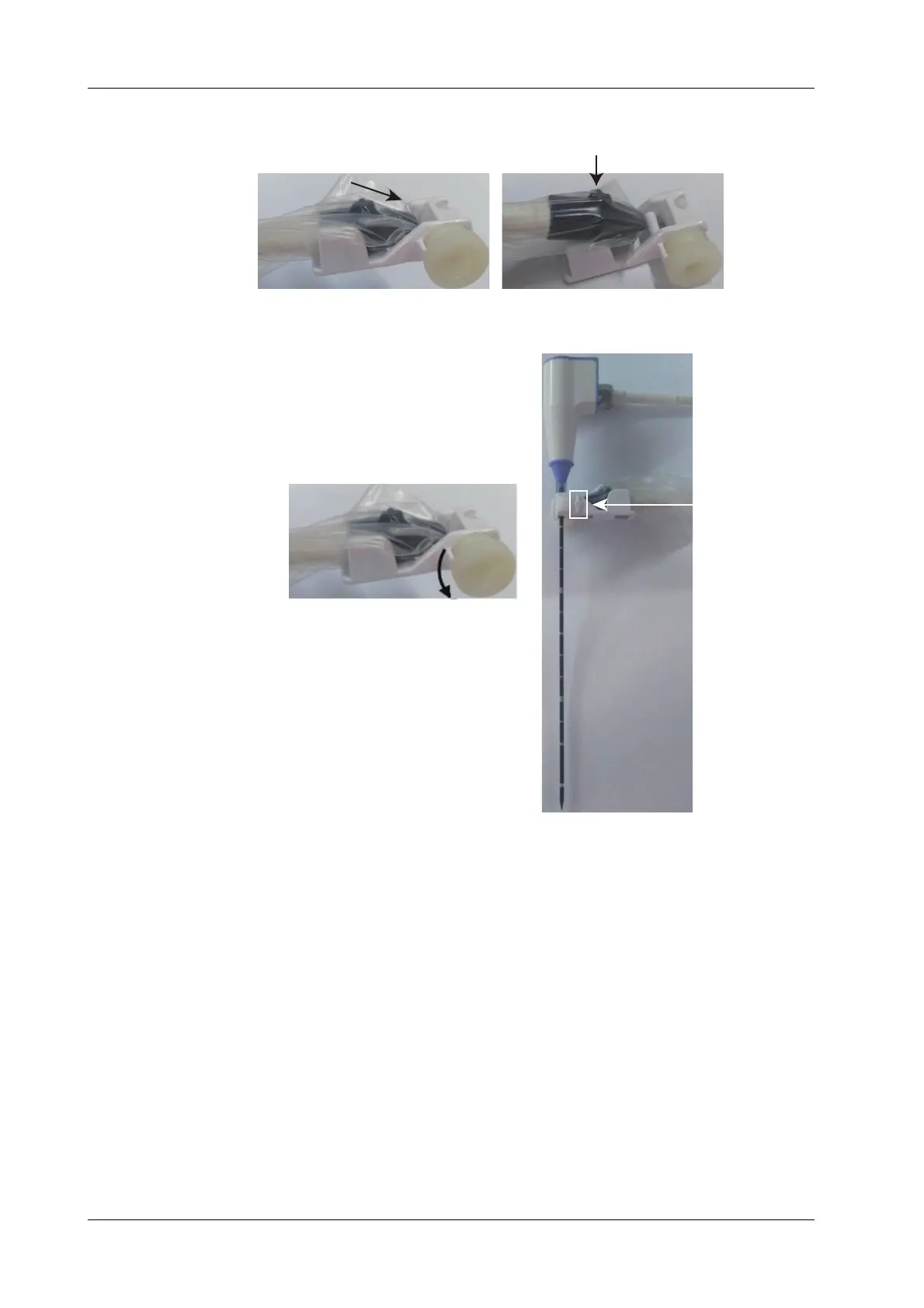

5. Connect needle sensor to the bracket.
6. Loose the knob on the bracket anti-clockwise and insert the vTRAX needle into the bracket by
the arrow direction. Anchor the bracket at the bottom of the needle and then tighten the knob.
7. Turn on the magnetic navigator power and perform needle navigation guiding operation after
the signal is stabilized.
eTRAX
eTRAX needle is used to biopsy, melt, drainage, administere, vascular access, local anaesthetic.
