2-2

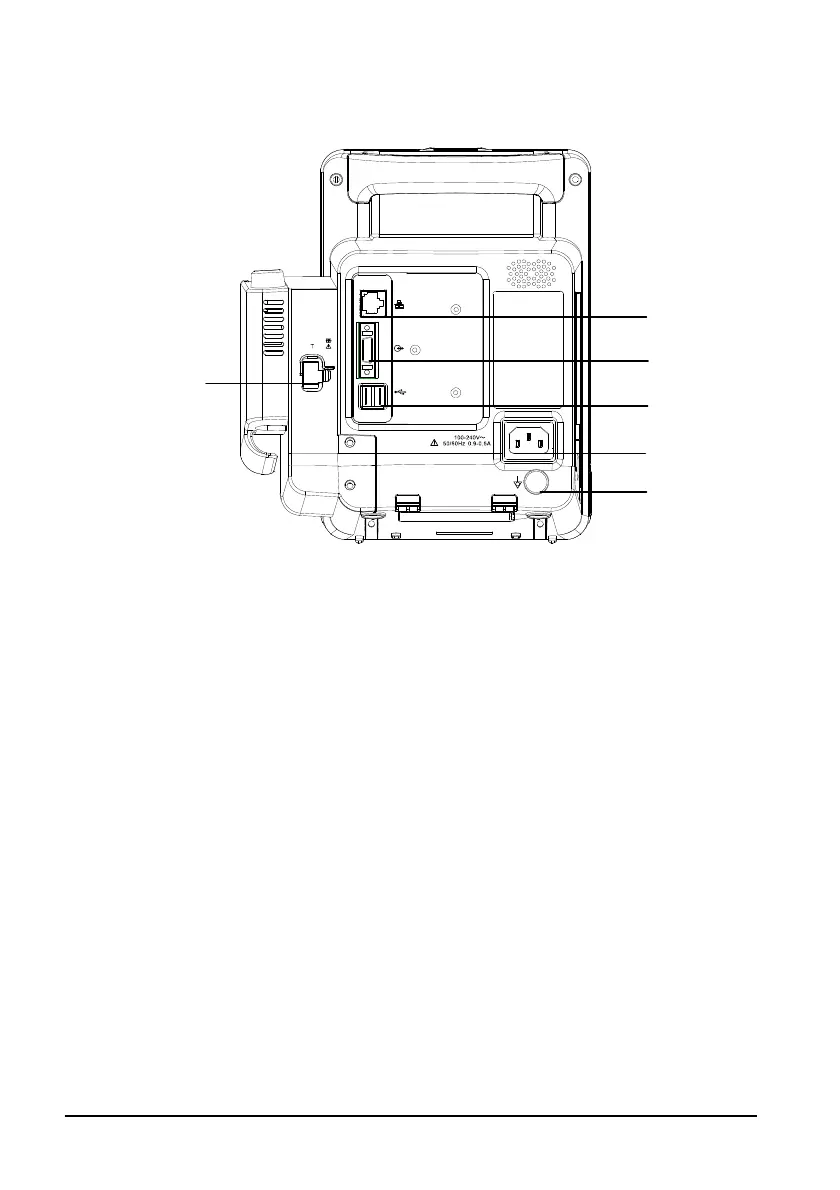

2.2 Connectors for Peripheral Devices
1. Connector for Temperature probe
2. Network connector: It is a standard RJ45 connector used to communicate with
external devices, such as central monitoring system, e-Gateway, or used to export
data or upgrade the system.
3. Multi-function connector: connects to the hospital's nurse call system, or connects
external devices through DIAP protocol.
4. USB connector: connects to barcode scanner or USB disk.
5. AC Power Input
6. Equipotential grounding terminal: When the equipment and other devices are to
be used together, their equipotential grounding terminals should be connected
together to eliminate the potential difference between them.
2.3 Main Unit
The main unit of the vital signs monitor consists of three parts:
Front housing assembly: main board, Wi-Fi module (only available for Accutorr 7),
keypad board assembly (knob), display, touchscreen, and alarm lamp board.
Rear housing assembly: power module (AC/DC), power management and
interface board (including SpO
2
isolation power), recorder, speaker, battery, NIBP
module, and SpO
2
board.
External module:Temperature module.
1
2
3
4
5
6
