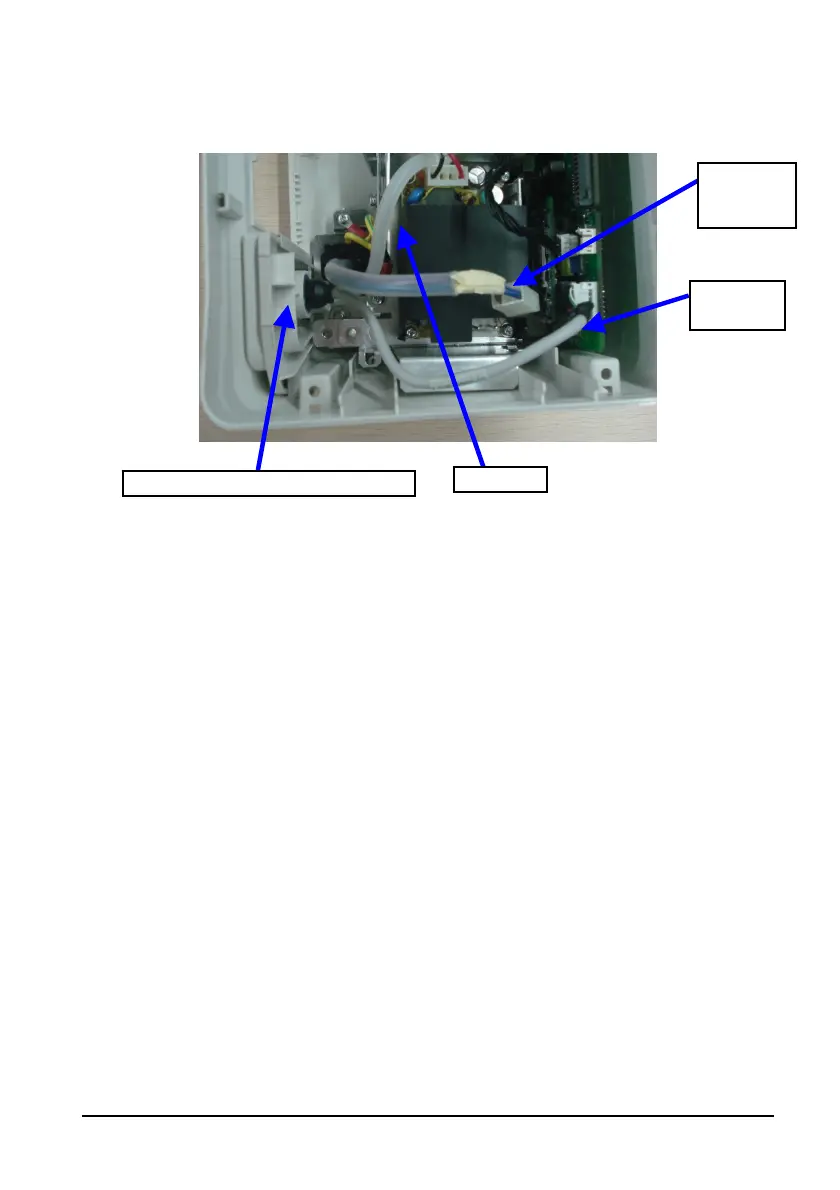

6-5
6.3.4
Removing the Par
ameter Connector Panel Assembly
Lay the r
ear housing assembly of the equipm
ent on a table. Disconnect the cable for AC
receptacle and SpO2 cable
, and then the silicon tube.
Parameter c
onn
ector panel assembly
SpO
2
signal
cable
Cabl
e for AC
input
rece
pta
cle
Silicon tube
50
52
Table of Contents
Table of Contents
7
Introduction
11
Manual Information
11
Safety Information
11
Warnings
12
Cautions
12
Notes
12
Equipment Symbols
12
Theory of Operation
13
Overview
13
Connectors for Peripheral Devices
14
Main Unit
14
Front Housing Assembly
16
Main Board
16
Rear Housing Assembly
17
External Module
18
Equipment Installation
19
Unpacking the Equipment
19
Preparation for Installation
19
Preparation for Installation Site
19
Environmental Requirements
19
Electrical Requirements
20
Equipment Installation
20
Preparation for Power on
21
Testing and Maintenance
23
Introduction
23
Performance Tests
23
Performance Test Frequencies
23
Visual Inspection
24
Spo Test
24
NIBP Test
25
Temperature Test
29
Test (Only Available for Accutorr 7)
29
Electrical Safety and Other Tests
30
Electrical Safety and Other Test Frequencies
30
Electric Safety Tests
30
Power-On Test
30
Touchscreen Calibration
31
Recorder Check
31
Bar Code Scanner Test
31
Battery Check
31
Nurse Call Reply Performance Test
32
Factory Maintenance
33
Accessing Factory Maintenance Menu
33
Drawing Waves
33
Software Version
34
Monitor Information
35
Troubleshooting
37
Overview
37
Part Replacement
37
Checking Equipment Status
37
Checking Software Version
37
Checking Technical Alarms
38
Troubleshooting Guide
38
Power On/Off Failure
38
Display Failures
39
Alarm Lamp Failures
40
Button and Encoder Failures
40
Sound Failures
41
Battery Failures
41
Recorder Failures
42
Output Interface Failure
43
Data Storage Failure
43
Wired Network Related Problems
44
Wi-Fi Related Problems (Only Available for Accutorr 7)
45
Module Defective
45
Module Problems (Only Available for Accutorr 7)
46
Technical Alarm Messages
46
Disassembly and Repair
47
Tools Required
47
Preparations for Disassembly
47
Disassembling the Main Unit
48
Disassembling the Temperature Module (Optional)
48
Removing the Recorder
49
Separating the Front and Rear Half of the Monitor
49
Removing the Parameter Connector Panel Assembly
51
Disassembling the Main Bracket Assembly
52
Removing the Parameter Board (Spo Optional) and Power Management Board
54
Removing the Parameter Connector Panel Assembly (with CO Only Available for Accutorr 7)
55
Disassembling the CO
56
Module Assembly (Only Available for Accutorr 7)
56
Disassembling CO2 Main Module (Only Available for Accutorr 7)
56
Disassembling the Main Bracket Assembly (with CO Accutorr 7)
57
Disassembling Pumps and Valves
58
Disassembling AC/DC Power Board and Battery Converter Board
58
Disassembling the Front Housing Assembly
59
Removing the Touchscreen Control Board
59
Removing the 2.4G Wi-Fi Module (Optional, Only Available for Accutorr 7)
60
Removing the 5G Wi-Fi Module (Optional, Only Available for Accutorr 7)
61
Removing the Main Control Board
63
Removing SD Card
63
Removing the Touchscreen
64
Disassembling the Display
64
Removing the Keypad
65
Removing the Encoder
65
Removing the Alarm Lamp
65
Disassembling the Temperature Module (Optional)
66
Removing the Temperature Module PCBA and Module Power Board PCBA
66
Disassembling the Temperature On-Position Detection Board PCBA
67
Parts
69
Introduction
69
Main Unit
69
Exploded View
69
Parts List
70
Front Housing Subassembly (Touchscreen)
71
Exploded View
71
Parts List
72
Rear Housing Assembly
73
Rear Housing Assembly (Without CO Module, CO Only Available for Accutorr 7)
73
Rear Housing Assembly
75
Parts List
77
Power Management Board Assembly
78
Parts List
78
Exploded View
78
Parts List
79
Parameter Connector Panel Assembly
79
Predictive Temperature Assembly
81
Exploded View
81
Parts List
81
Hardware and Software Upgrade
83
Hardware Upgrade
83
Upgrade Package
83
Upgrading Parameter Modules
83
Upgrading Temperature
84
Upgrading Wi-Fi (Only Available for Accutorr 7)
84
Enabling Parameter Functions
85
Software Upgrade
85
A Electrical Safety Inspection
87
Power Cord Plug
87
Device Enclosure and Accessories
88
Device Labeling
88
