6-17
6.4.4

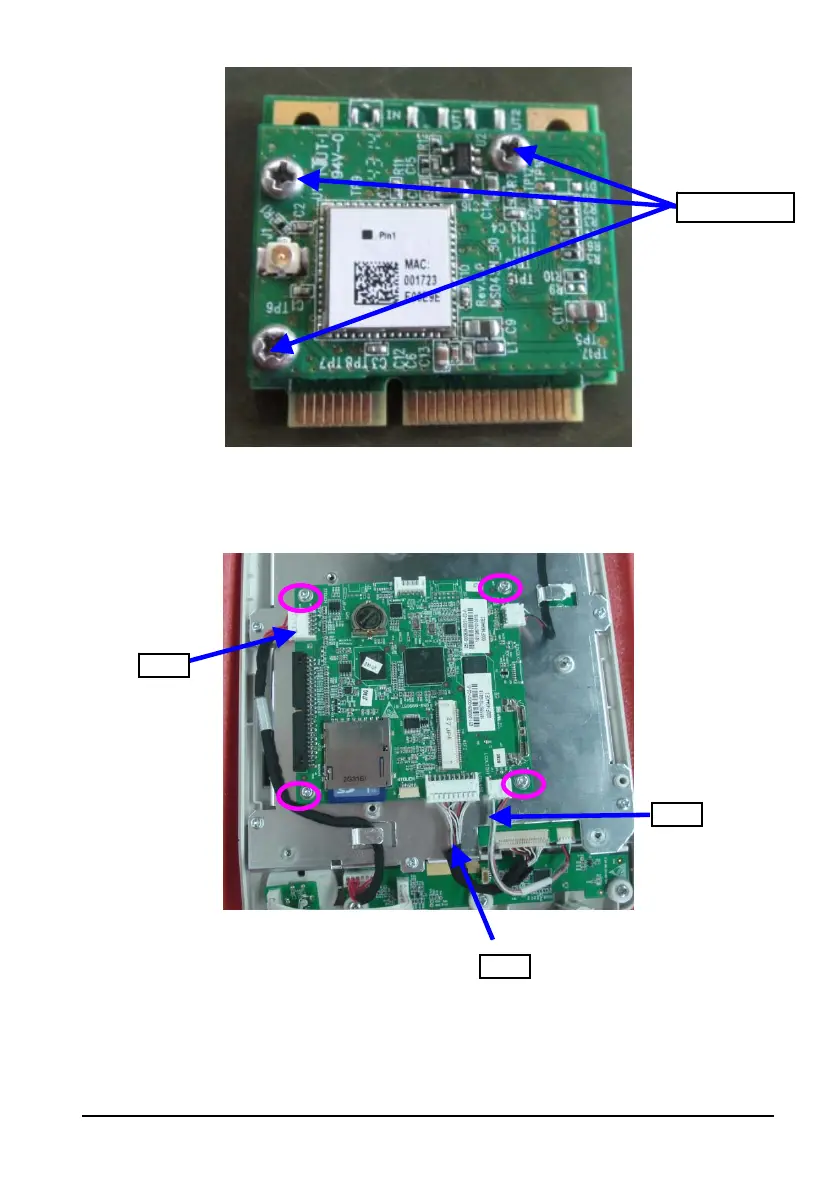

Removing the Main Control Board
Disconnect the alarm lamp cable, cable for display backlight, display cable, and the cable
between the main board and keypad board respectively
. Unscrew the four M3×8 screws
and remove
the main board, as shown below:
6.4.5
Removing SD C
ard
Remov
e the main board, and push the SD card
as indicat
ed below to remove the SD car
d.
Cable
Cable
Cable
Wi-F
i module
62
