2-4
2.4 Front Housing Assembly
2.5 Main Board
The main board is the control center of the equipment. It provides communication, display,
and data storage functions, including:
 Communication with SpO
2
board, NIBP module, and Temperature module
through connector;
 Communication with power management board, keypad board, and recorder
through connectors;
 Providing drive for display and backlight;
 Providing 2 USB connectors, a network connector, and a multifunctional
connector;
 Communication with touchscreen control board through I2C;
 Providing drive for SD card; and,
 Providing drive for Wi-Fi module(only available for Accutorr 7).

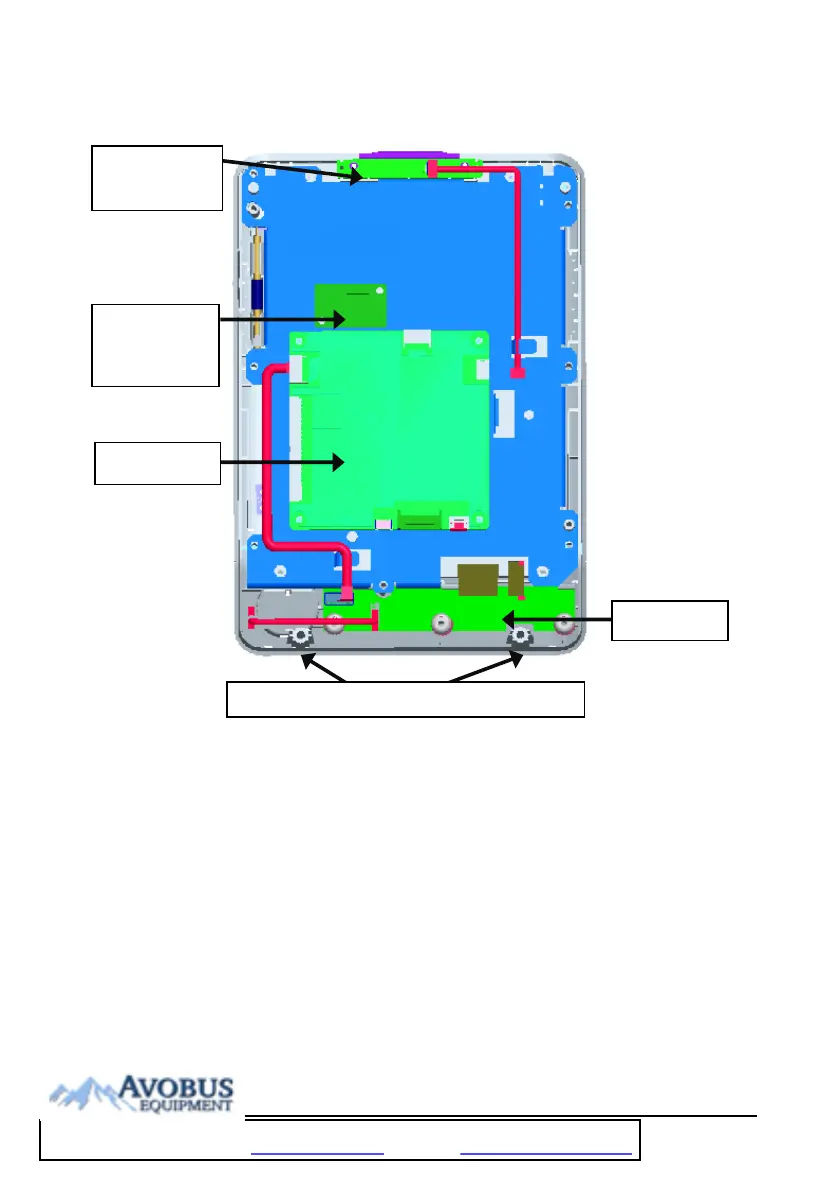

Alarm lamp
board
T
ouchscreen
control
board
Main board
Keypad
Screws securin
g
the front and rear housin
g
