7-10
7.7
P
ower Managemen
t Board Assembly

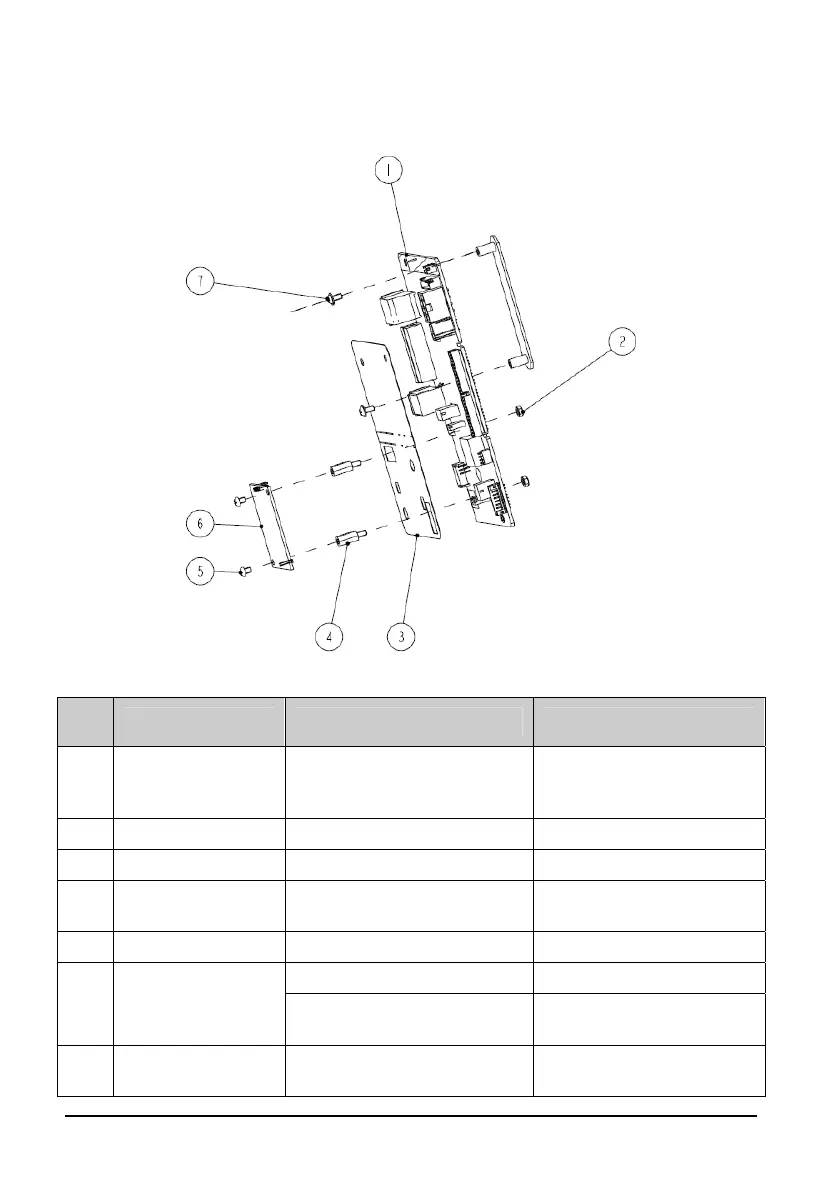

7.7.1
Exploded V
iew
7.7.2
Parts List
Item
No
.
Description
FRU part number
Remarks
1
Power
management
board
service kit
115-018262-00
with multifunctional
connector
2 Plastic
hexagon
nut
M90-000156---
N/A
3 SpO
2
shield
047-010576-00
N/A
4
Plastic hexagon
bolt
099-000129-00 N/A
5
Screw, pan head
M04-051001-01
N/A
6 SpO
2
board
100-000106-00 Nellcor
SpO
2
board (MDU)
040-000109-0
1
SpO
2
board, Masimo
MS-2013
7
Screw, Pan head
w/washer
M04-004012--- N/A
77
79
