7.1.16 Rear Plate Assembly

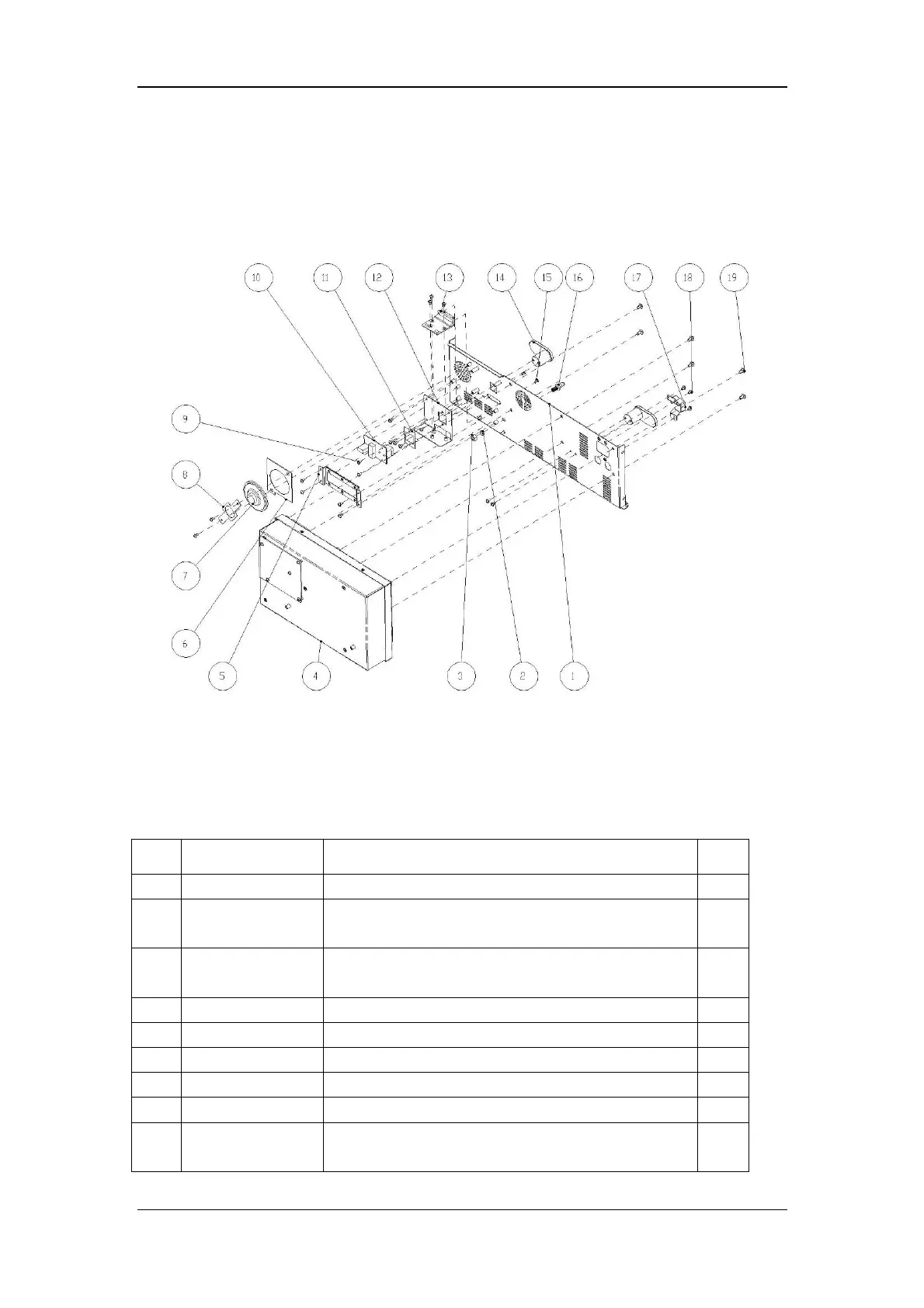

7.1.16.1 Exploded View
7.1.16.2 Parts List
Note: The P/N of this assembly is 0621-30-69516.
S/N P/N Description Qty
1 0621-20-69406-51 Rear plate (100-240V) 1
2 M04-004504--- Single coil spring lock washer, normal type
GB/T93-1987 6 rustproof nickel plating
1
3 M04-004401--- Stainless steel hexagon nut GB/T6170-2000 M6
polishing
1
4 0621-30-69407 Power box assembly 1
5 0621-20-69420 Dustproof net 1
6 0621-20-69561 Speaker EVA cushion 1
7 9200-21-10633 2.25" speaker and speaker cable 1
8 9200-20-10620 Press bar for speaker 1
9 M04-051140--- Cross recessed small pan head screw
assemblyGB/T9074.8 M3X8 rustproof nickel plating
15
To Next Page
