Minelab E-Trac User Manual

46
47
Discrimination Menu
Manual Mode

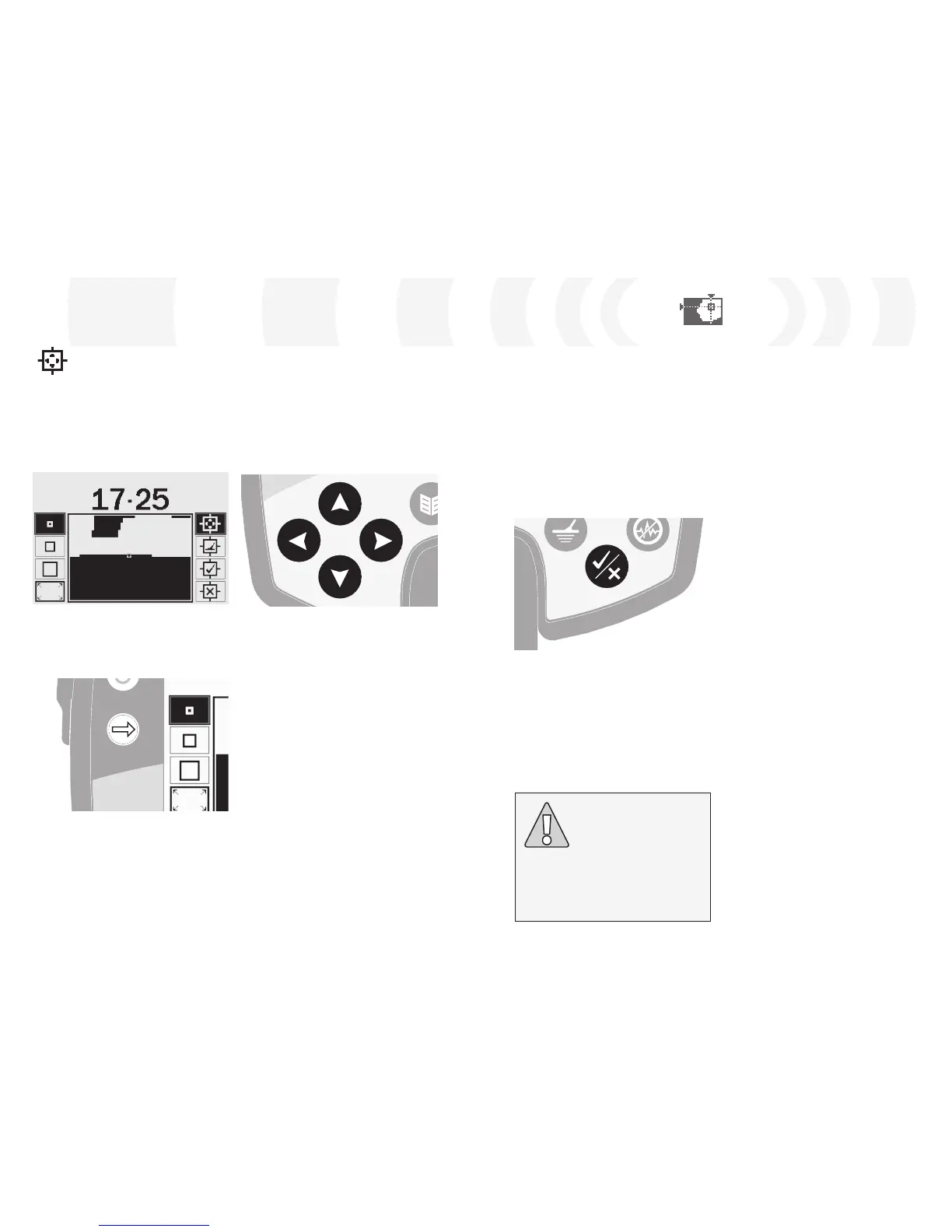

Manual Mode allows you to manually move
the Edit Frame around the Discrimination
Pattern. By using the Accept/Reject button
you can edit areas of the Discrimination
Pattern to either accept (white areas) or reject
(black areas) certain targets.
To move the Edit Frame:
Press, or press and hold, the Navigation
buttons (Up, Down, Left and Right) to move
the Edit Frame around the Disc. Pattern.
To reject the framed area:
Press the Accept/Reject button. A cross will
appear above the Smartfind Window and the
area of screen within the Edit Frame will turn
black. You can now move the Edit Frame to
another part of the Discrimination Pattern
and continue Editing.
To accept the framed area:
Press the Accept/Reject button. A tick will
appear above the Smartfind Window and the
area of screen within the Edit Frame will turn
white. You can now move the Edit Frame to
another part of the Discrimination Pattern
and continue Editing.
Tip: Holding down the Accept/Reject button
while moving the Edit Frame around the
Smartfind Window continually edits the pattern.
To change the size of the Edit Frame:
Press the Left Shift button to switch between
the four Edit Frame sizes.
CAUTION: Pressing the Menu button
while in Edit will take you back to the
Discrimination Menu and all changes
made in Edit will be lost.
If you are moving the Edit Frame across
the Smartfind Window, either horizontally
or vertically, and you reach the edge of the
Smartfind Window the Edit Frame will loop
back to the opposite side. This feature is
designed to allow you to quickly move
from one edge of the Smartfind Window
to the other.

Minelab E-Trac Specifications

General

Transmission Technology	Full Band Spectrum (FBS) Multifrequency Technology
Microprocessor	32bit, 48MHz microprocessor – fast and powerful
Coil	Ultra-lightweight 11” Double D (DD) waterproof coil
Connectivity	USB connector for communication with Personal Computer
Software	Intuitive User Interface; Fast Target processing; Multi-language functionality
QuickMask™	Fast and Easy adjustment of Ferrous and Conductivity Discrimination
User Modes	4 Minelab Modes and 4 My Modes
Depth Gauge	Accurate Gauge active in Normal detecting and Pinpoint mode
Pinpoint	Non-motion with modulated audio and visual Crosshair on LCD, 2 Modes – Normal and Sizing
Discrimination	2 Dimensional Smartfind™ Discrimination
Target Identification	2 Dimensional Smartfind™ Size / Conductivity and Ferrous characteristics Conductivity 1-50, Ferrous 1-35
Sensitivity Adjustment	Fully Automatic; adjustable to be more aggressive or conservative, Manual Setting 1-30
Sensitivity Gauge	Auto Level, Manual Level, Suggested Level
Threshold	Fine adjustment level from 1-50
Recovery Speed	Selectable Fast & Deep
Trash Density	Low for areas with isolated targets or High, for areas with more trash
Noise Cancel	Automatic & Manual selection of 11 channels
Audio Response	4 Settings: Normal, Long, Smooth, Pitch Hold
Tone ID Number of Tones	1, 2, 4 and Multi-tone; customizable for Conductivity or Ferrous response
Tone ID Variability	30 adjustable steps for better Target Identification
Headphone	Input ¼” 100Ω Stereo Jack
Ground Balance Modes	Auto Ground Compensation - Advanced Digital Filtering
Ground Settings	Neutral for most ground conditions, Difficult for more mineralized soils
Batteries	1600 mAh NiMH or Alkaline batteries
Low Battery Audio Alarm	Audio and visual indication
Visual Display	Large 3.4” (8.65cm) greyscale LCD panel with Contrast adjustment and Backlight
Patents	US 4890064; US 5537041; US 5506506
