28

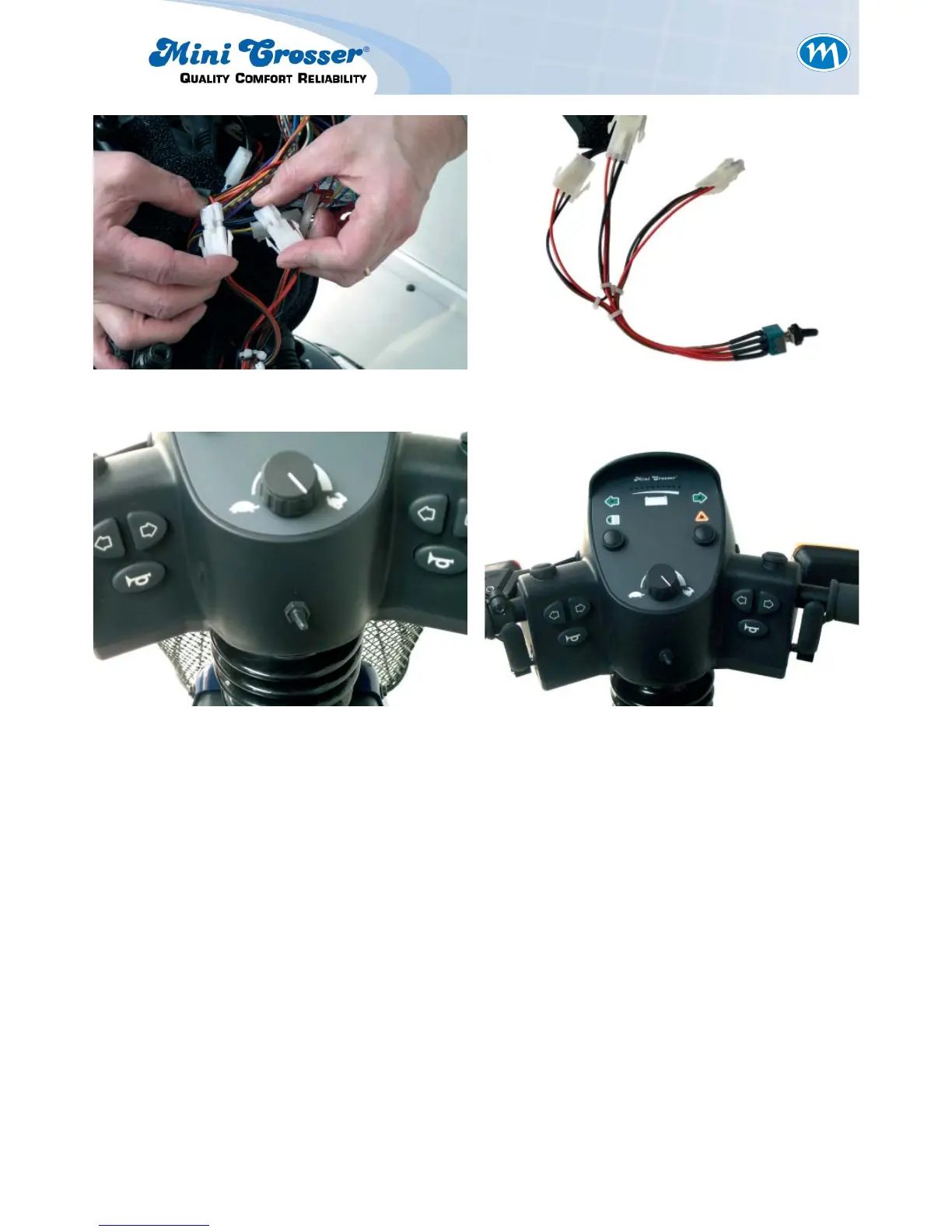

Figure 5: Install the two throttle regulators. Figure 6:
Figure 7: Install the switch so that it points to
the correct side.
Figure 8: Install the operating panel. Take care
not to pinch or stretch wires.
Switch on the scooter and check that the magnetic brake clicks when the throttle is activated.
When the throttle is released it should not be possible to push the scooter.
