Mini Crosser 125 - Electric Seat Adjustment

39

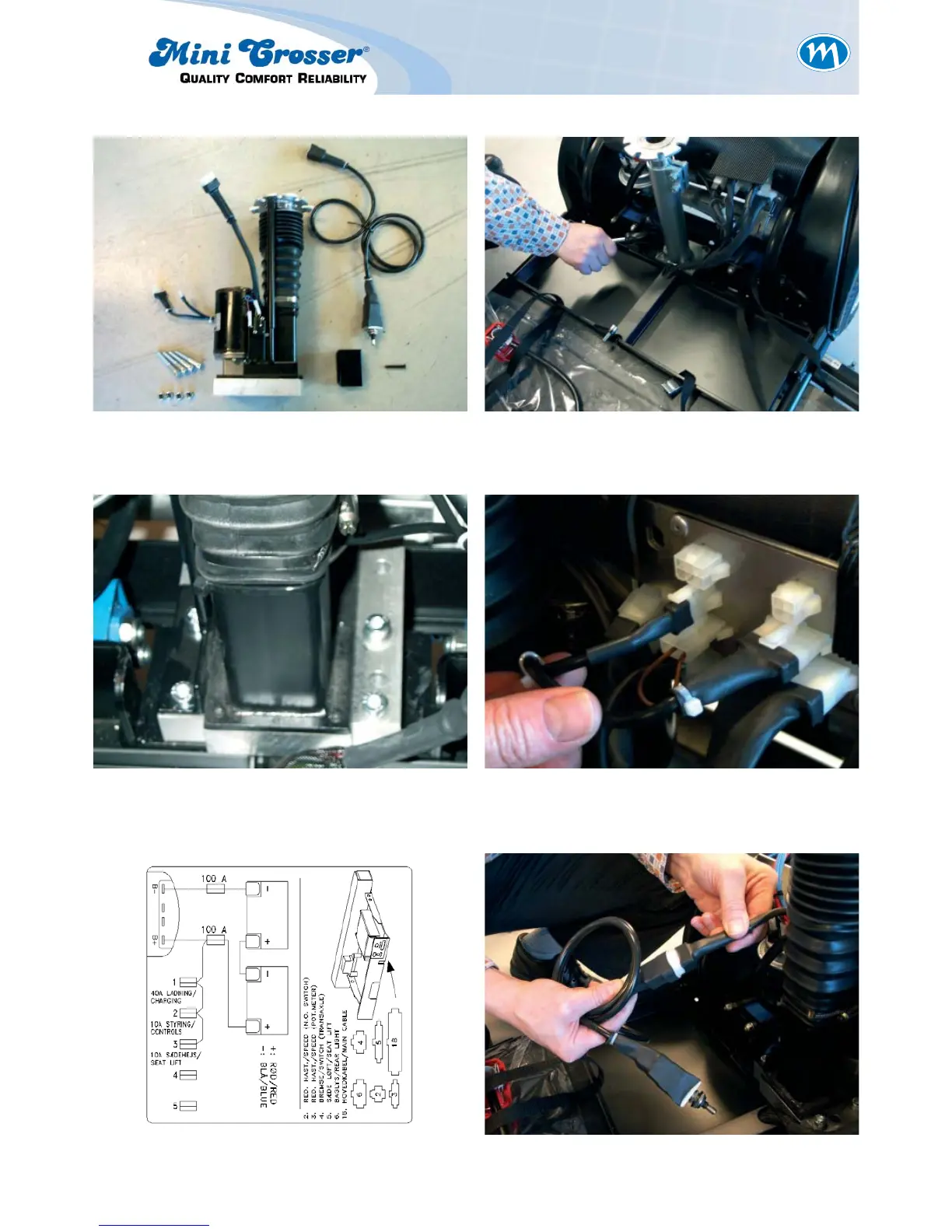

15.8 Electric seat adjustment
Figure 1: Complete electric seat adjustment
unit.
Figure 2: Remove the fi xed seat post.
Figure 3: Install the electric seat adjustment
unit in the same holes.
Figure 4: Connect the two-pin and fi ve-pin
plugs to the wiring plate.
See drawing.
Figur 5 Figure 6: Connect the heavy-duty four-pin
plug to the cable from the up/down
switch.
