6.0 Fuses and bulbs
The fuses are located beneath the rear shroud.
1 2 3 4 5
40 A 10 A 10 A 40 A 10 A
Fuse 1: 1 x 40 A fuse Charging Product number SR-00066 (40 A)
Fuse 2: 1 x 10 A fuse Control system Product number SR-00066 (10 A)
Fuse 3: 1 x 10 A fuse Seat adjustment Product number SR-00066 (10 A)
Fuse 4: 1 x 40 A fuse Extra
Fuse 5: 1 x 10 A fuse Extra (Discontinued, mid-2004).
Main fuses, 100 A, type of fuse DIN 2581 – 100 A Product number SR-00977

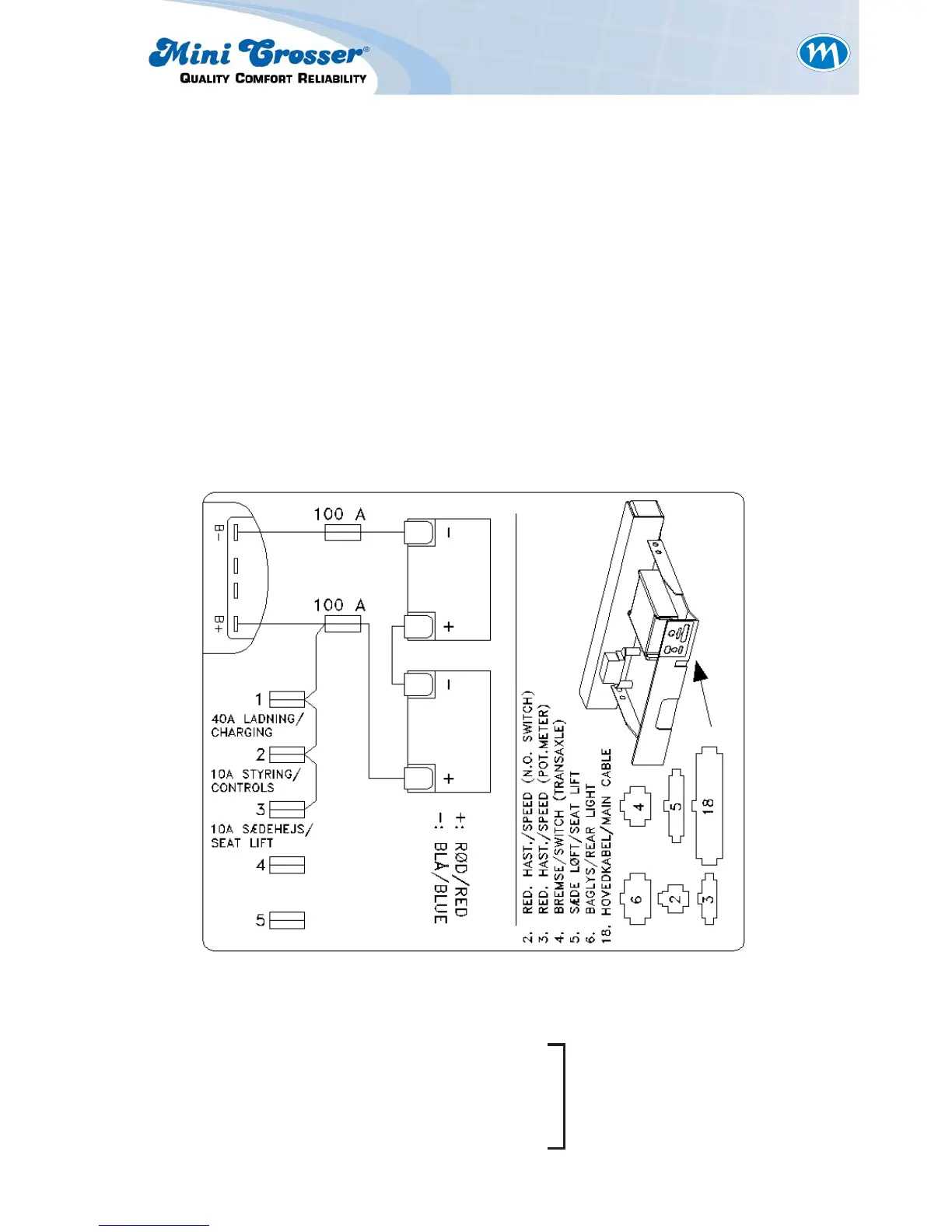

6.1 Diagram of battery connections
Fuses and extra sockets on PCB
Fuses on the PCB in the operating panel. Use a pair of tweezers to replace these.
F1: Lamp 2A: Little fuse: 154 002 RA900
F2: Lamp, rear 2A: The same
F3: Right indicator 2A: The same Discontinued, beginning
F4: Left indicator 2A: The same of 2004
F5: Braking lamp 2A: The same
F6: Horn 5 A: Little fuse 154 005 RA 900
