15.4 Parent potentiometer

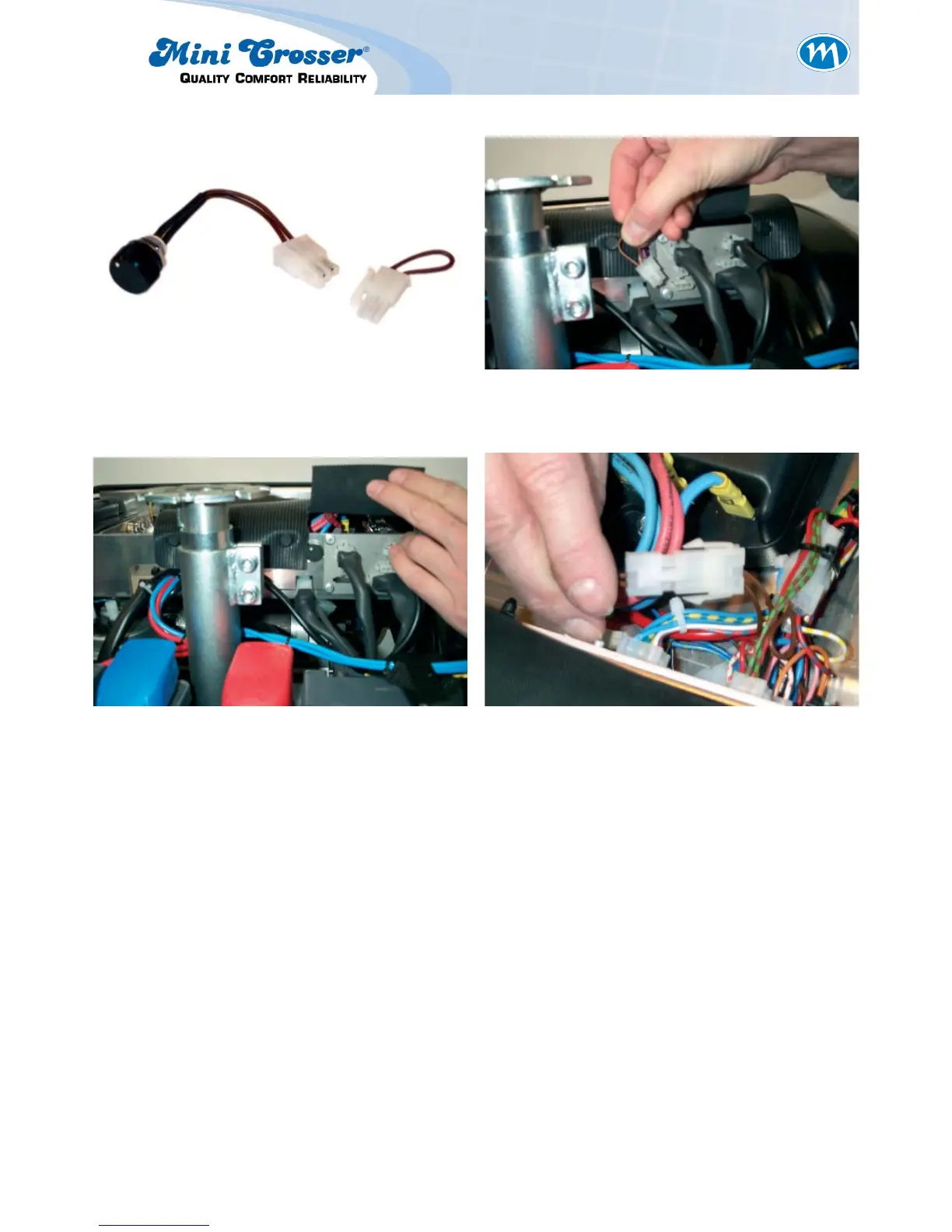

Figure 1: The potentiometer with plug and
jumper.
Figure 3: Install the potentiometer and push
the three-pin plug out of the
aluminium plate.
Figure 4: Install the potentiometer plug as
shown. Remove the plastic cover
from the operating panel as
described under »Twist grip throttle
– right, left”. Remove the plug from
the maximum speed potentiometer
and install the two-pin plug with the
jumper instead. Replace the plastic
cover.
Switch on the scooter and check
that the solenoid brake clicks when
the throttle is activated. When the
throttle is released it should not be
possible to push the scooter.
Figure 2: Remove the three-pin jumper.
