Mini Crosser 125 - Foot Pedal Throttle 3 W and 4 W

36
15.7 Foot pedal throttle 3W and 4W

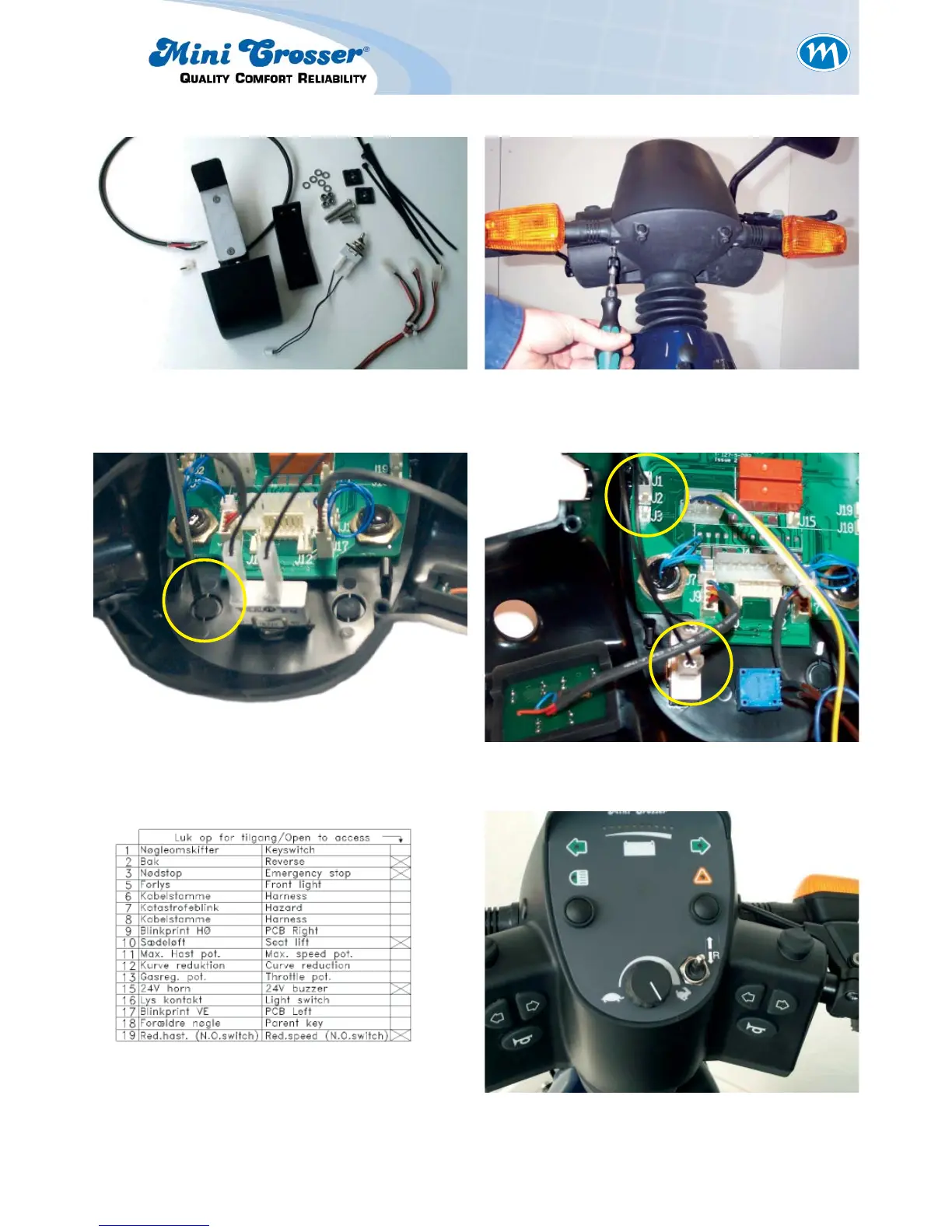

Figure 1: Complete foot pedal throttle. Figure 2: Open the operating panel to install
the forward/reverse switch.
Figure 3: Cut out a hole for the reverse switch. Figure 4: Connect the forward/reverse switch
to socket no. 2.
Figure 5: Figure 6: Install the reverse switch as shown.
