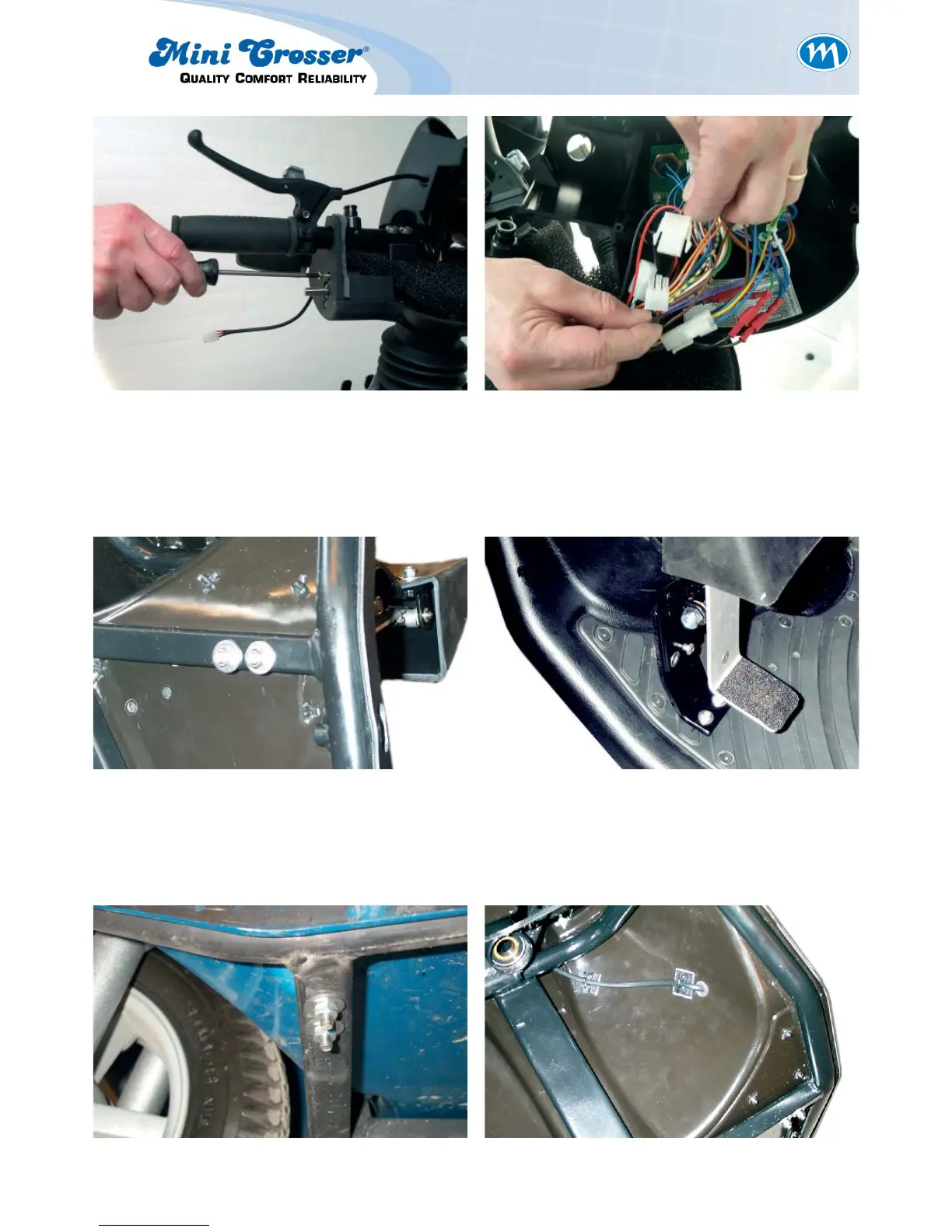

Figure 7: Remove the standard throttle regula-
tor. Remove the rocker arm itself. If
you remove the potentiometer it
is important to close the holes with
the accompanying plugs.
Figure 8: Connect the wires to the foot
pedal throttle to the socket where
the standard throttle regulation was
installed.
Figure 9: Install the foot pedal throttle on the
footplate. Drill through the holes in
the transverse square tube and up
through the plastic plate and the
rubber mat.
Figure 10: Connect the foot pedal throttle to
socket number 4 beneath the
handlebar cover.
Figure 11: Installing the foot pedal throttle on a
4W model.
Figure 12: Install the cable beneath the vehicle.
