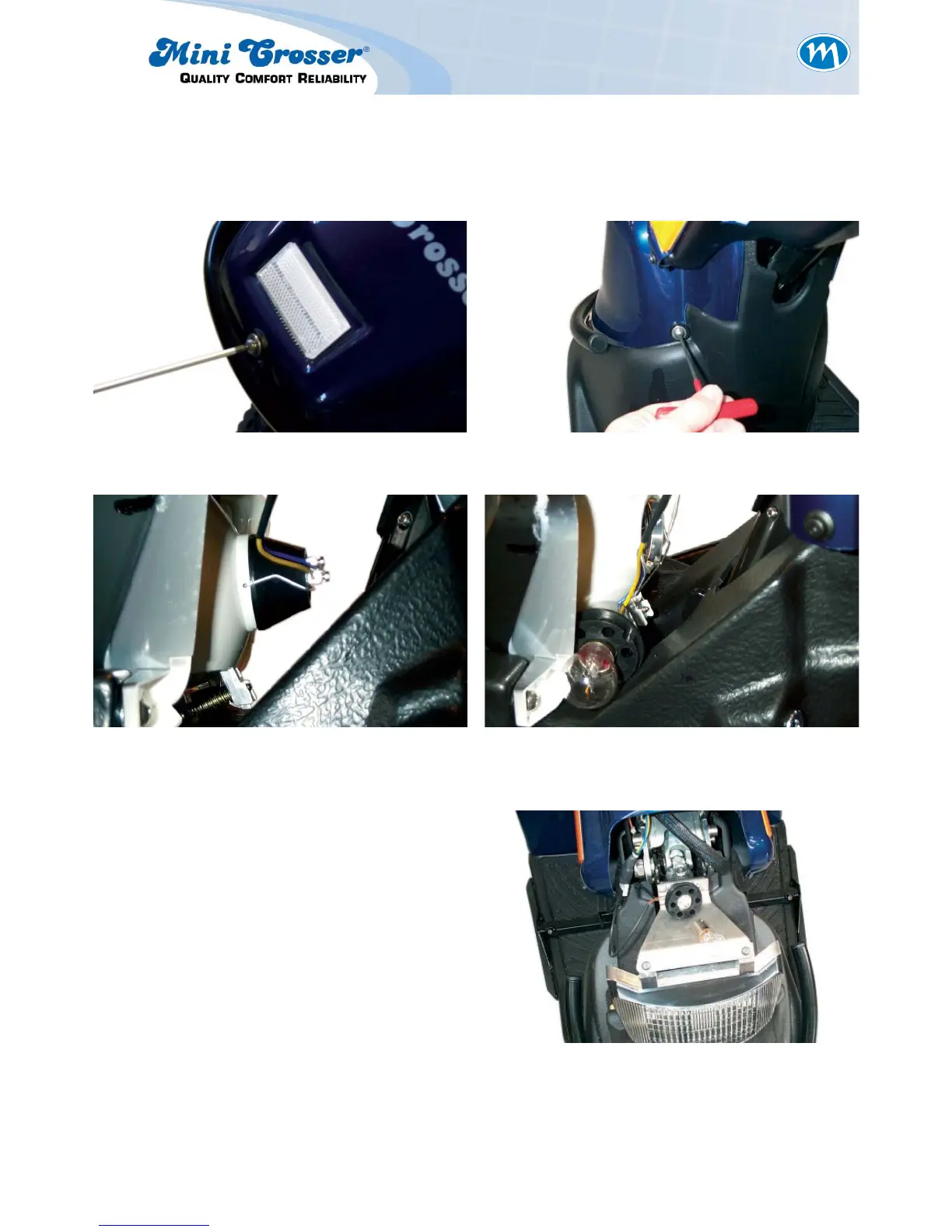

Figure 1 Figure 2
Figure 3: Lift the bracket at the back of the
headlight upwards and remove it.
Make sure to turn the socket in the
same way again. The bracket must
not touch the conductive parts of the
socket.
Figure 4: The socket holder can now be pulled
out of the headlight assembly.
Figure 5: Remove the bulb by twisting it and
pulling it forwards out of the socket.
Switch off the scooter.
Remove the front shroud by removing the three screws as shown. The shroud can then be lifted
off towards the front.
Make sure that the wires are not pinched when
replacing the front shroud.
15.11 Replacing bulb in headlight
