15.3 Lowering curve

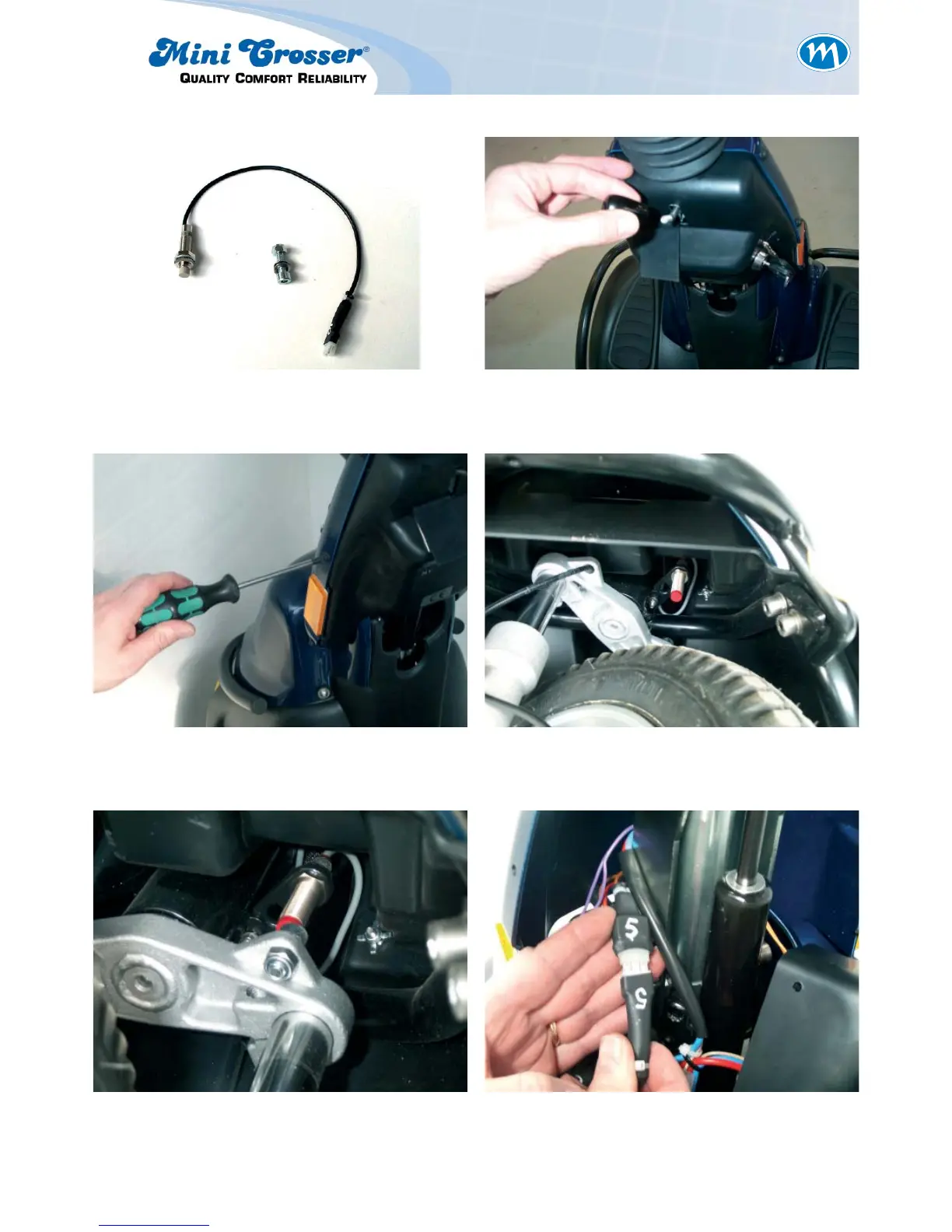

Figure 1: The set comprises these parts. Figure 2: Remove the plastic handle from the
»gas spring release«.
Figure 3: Remove the rear plastic shroud by
removing the six plastic screws.
Figure 4: Install the sensor in the holder.
Figure 5: Adjust the height of the sensor so
that it is 1 mm above the head of the
bolt.
Figure 6: Connect the sensor to socket no. 5.
Take care to secure the cable with cable
binders so that it cannot be pinched by
the front forks and/or handlebars.
