30

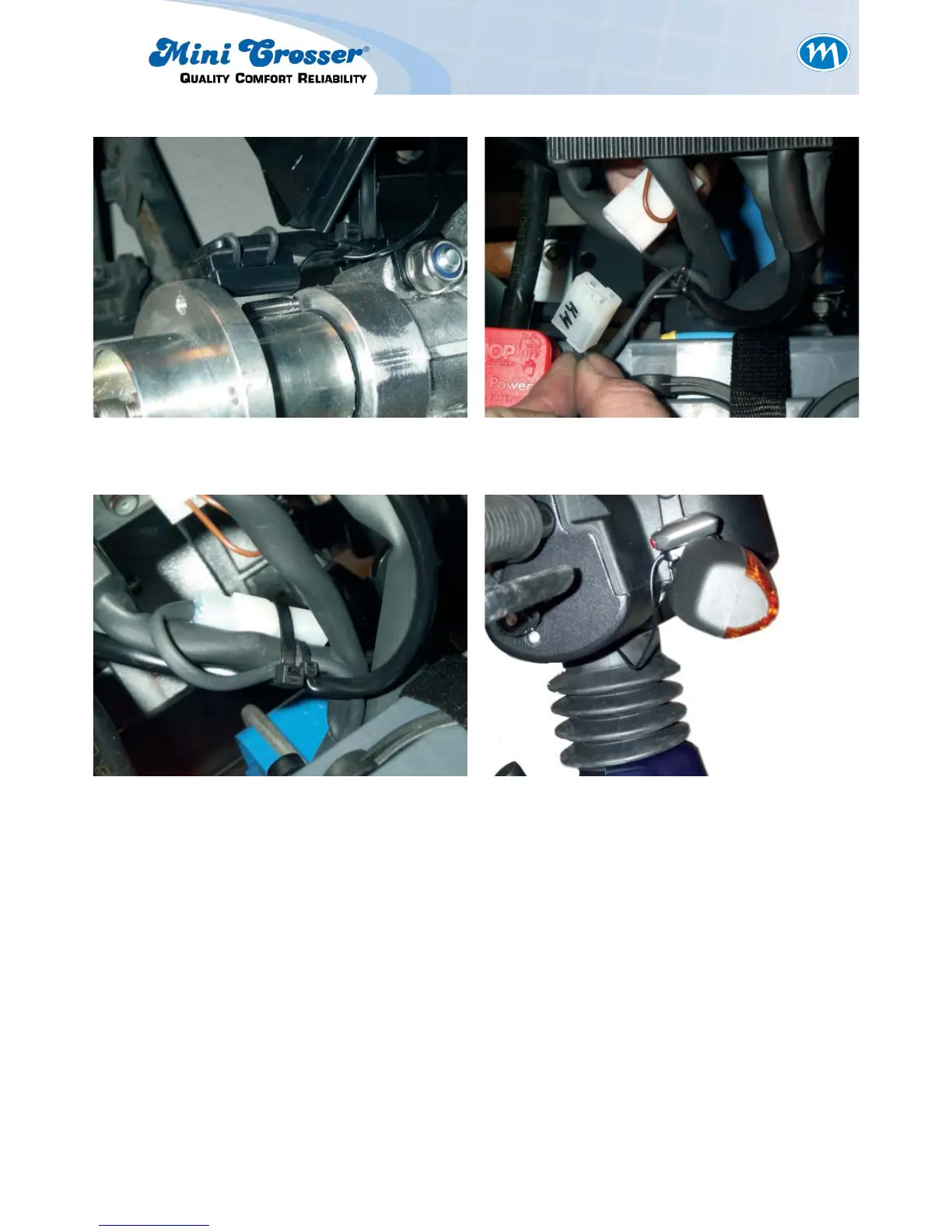

Figure 7: Distance between sensor and
magnet.
Figure 8: Connect the sensor to the socket on
the aluminium plate.
Figure 9: Attach the cable binder. Figure 10: Connect the speedometer to the
plug beneath the rubber bellows.
