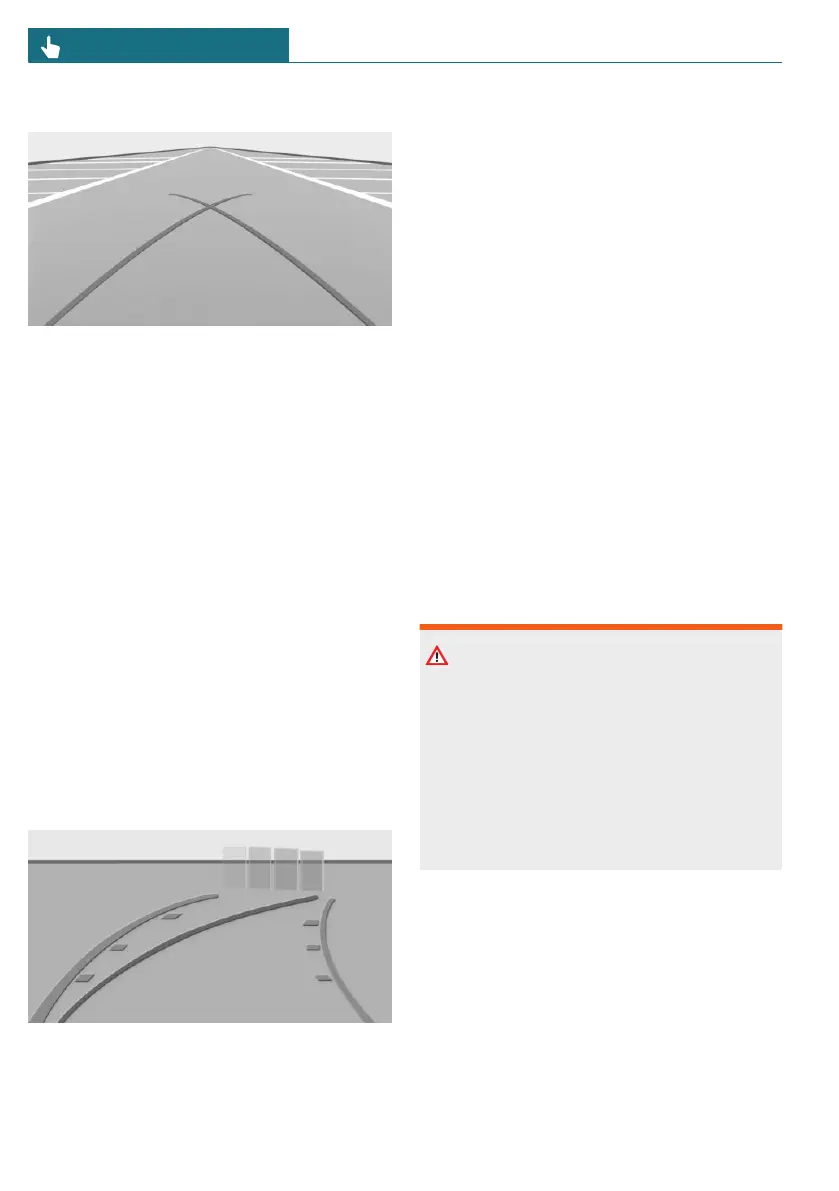

Turning circle lines
The Interaction Unit camera view includes
turning circle lines that show the path with
the smallest possible turning circle on a
level road.
Only one turning circle line is displayed
after the steering wheel is turned past a
certain angle.
Turning circle lines can only be superim-
posed on the camera image together with
pathway lines.
Using parking aid lines
1. Position the vehicle so that the red turn-
ing circle line leads into the boundaries
of the parking space.
2. Turn the steering wheel so that the
green pathway line covers the corre-
sponding turning circle line.
Obstacle marking
The sensors detect obstacles when parking.
Obstacles detected by Park Distance Control
are shown and marked in the camera view
on the Interaction Unit.
Colored gradients for the obstacle markings
in green, yellow and red indicate the distan-
ces.
Functional limitations
The parking assistance systems can only be
used to a limited extent in the following
situations:
– With a door open.
– With open cargo area.
– With exterior mirrors folded in.
Areas with gray hatching with an icon in
the camera image identify areas that are
currently not shown such as an open door.
System limits
Safety information
Warning
Because of system limitations, this system
may either not respond, or respond too
late, incorrectly, or without cause. There
is a risk of accident, injury, or property
damage. Actively intervene as warranted.
Refer to the information in this Owner’s
Manual regarding the scope of the sys-
tem’s operation and limitations.
System limits of the sensors
Parking assistance systems may be re-
stricted by the system limits of the sensors.
Additional information:
Sensors of the vehicle, refer to page 34.
Seite 222
CONTROLS Parking
222
Online Edition for Part no. 01405B37A59 - II/24
