INSTALLING THE RIPTIDE POWERDRIVE

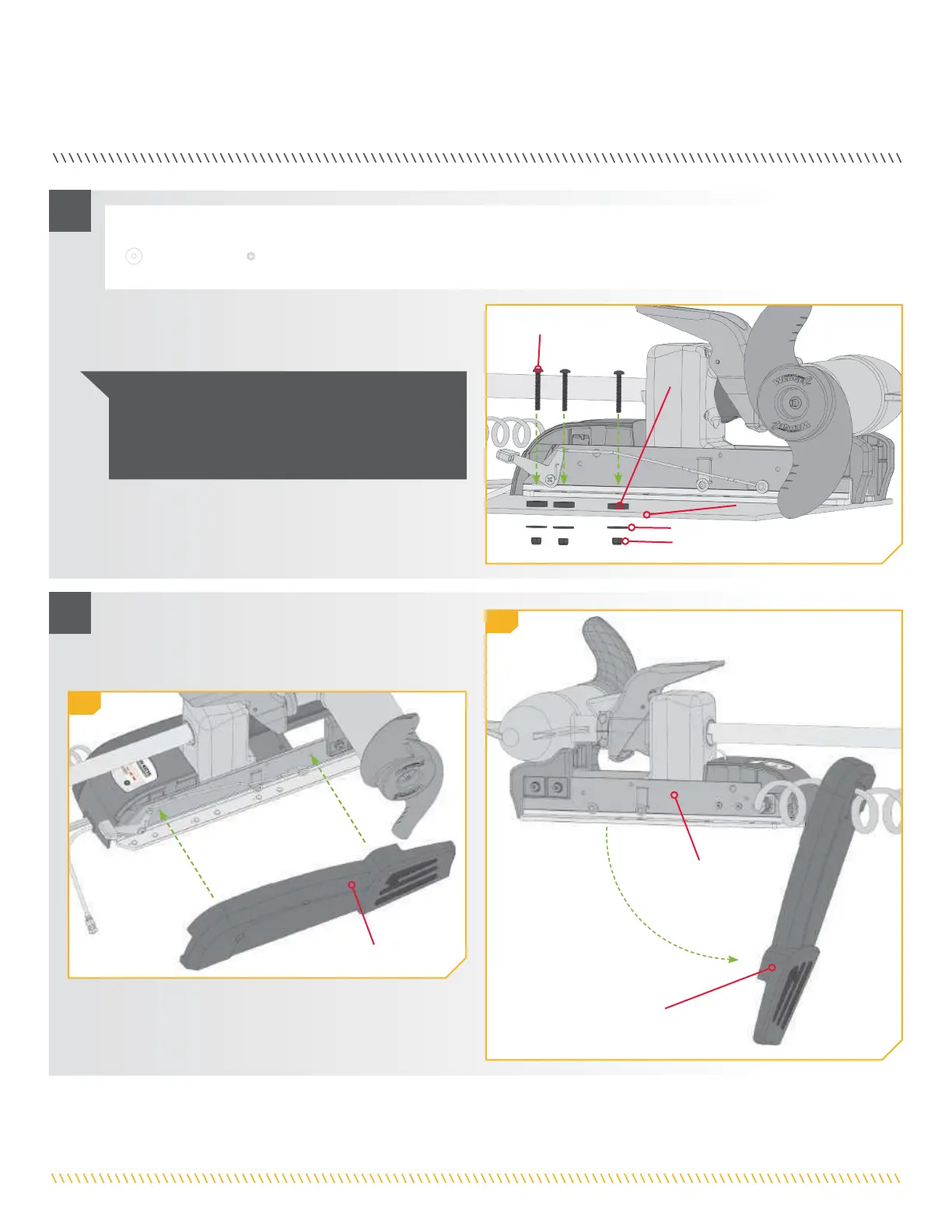

m. Replace the Right Sideplate.
n. Swing the Left Sideplate back into its correct
position on the Base Extrusion.
Right SideplateRight Sideplate
Left SideplateLeft Sideplate
Base ExtrusionBase Extrusion
l. Place a Flat Washer (Item #2) and then a Nylock Nut
(Item #3) at the end of each screw as shown and
secure. Make sure all hardware is secure.
#2 x 6 #3 x 6
1/4-20 x 3 1/2" Screw
Rubber WasherRubber Washer
Boat DeckBoat Deck
Nylock Nut
Flat Washer
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high speed installation tools.
Wetting the screws or applying an anti-seize may help
prevent seizing.
