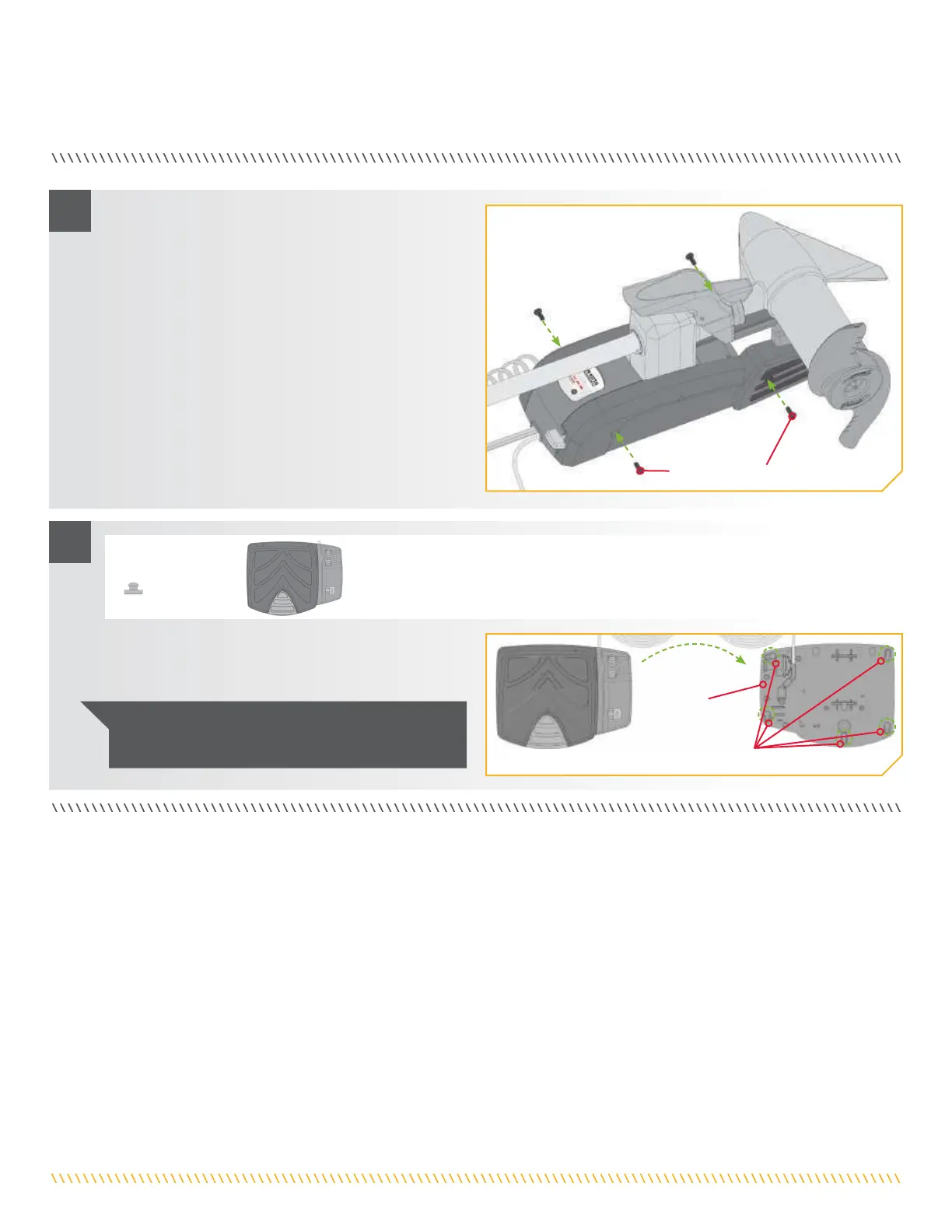

INSTALLING THE RIPTIDE POWERDRIVE
Sideplate ScrewSideplate Screw
o. Replace the four sideplate screws using a #3 or #2
Phillips screwdriver. Two of these screws will be
located on each side of the mount.
10
NOTICE: The pads are recommended when using
the Foot Pedal on non-carpeted surfaces.
Foot Pedal Foot Pedal
BottomBottom
Foot Pedal Foot Pedal
Pad Pad
PlacementPlacement
ITEM(S) NEEDED
#10 x 1
p. Take the Foot Pedal (Item #10) and turn it over.
Put a Foot Pedal Pad (Item #17) in each of the
pad locations.
11
#17 x 5
To Next Page
