Minuteman E24 - 4. Squeegee Cable and Gasket

4. Squeegee Cable And Gasket
4. The squeegee cable is attached to the lift lever (top) via a spring (Fig. 5/5). The bottom is
attached to the eyebolt at the squeegee mechanism (Fig. 5/6). The squeegee lift cable can be
d ft i th l t i d l t th f th hi
accesse
d
a
ft
er open
i
ng
th
e e
l
ec
t
ron
i
c mo
d
u
l
e cover a
t
th
e rear o
f
th
e mac
hi
ne.
The vacuum motor is connected to the A1 at A1.X34:5+6 on the controller. Current
consumption of the vacuum motor amounts to approx. 25A max.
The vacuum water lift in the closed tank is at least 65 inches (150mbar).
Recovery Lid Gasket
Recovery
Lid
Gasket
Insert the recovery tank cover gasket (Fig. 5/7) so that the seam is positioned at the front center
with a gap of approx. 1mm. The dirty drip water on the top sealing surface will be drawn into the
recovery water tank.

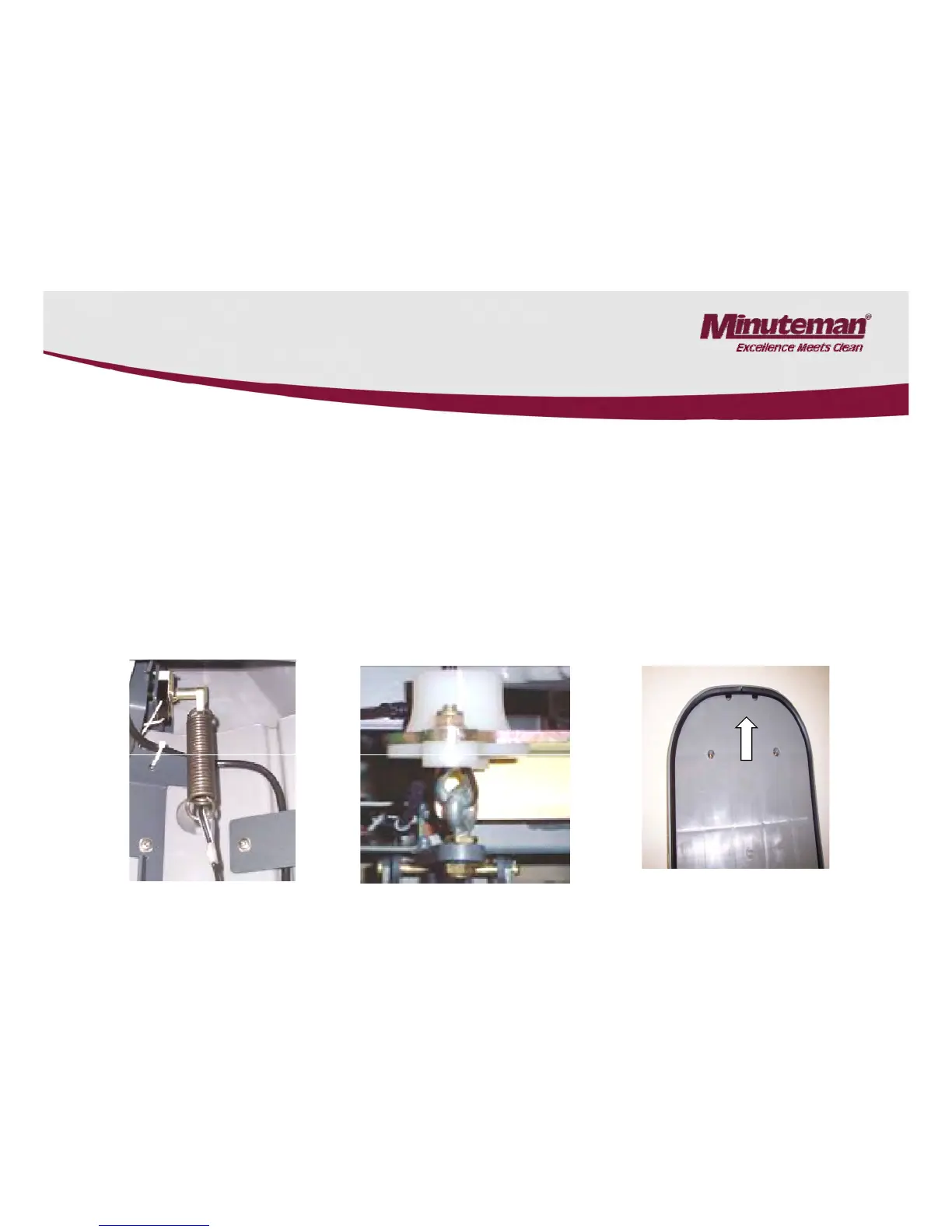

Fig. 5/5
Fig. 5/6
Fig. 5/7
13
