13. Fuse Locations (Version 2 Controller)

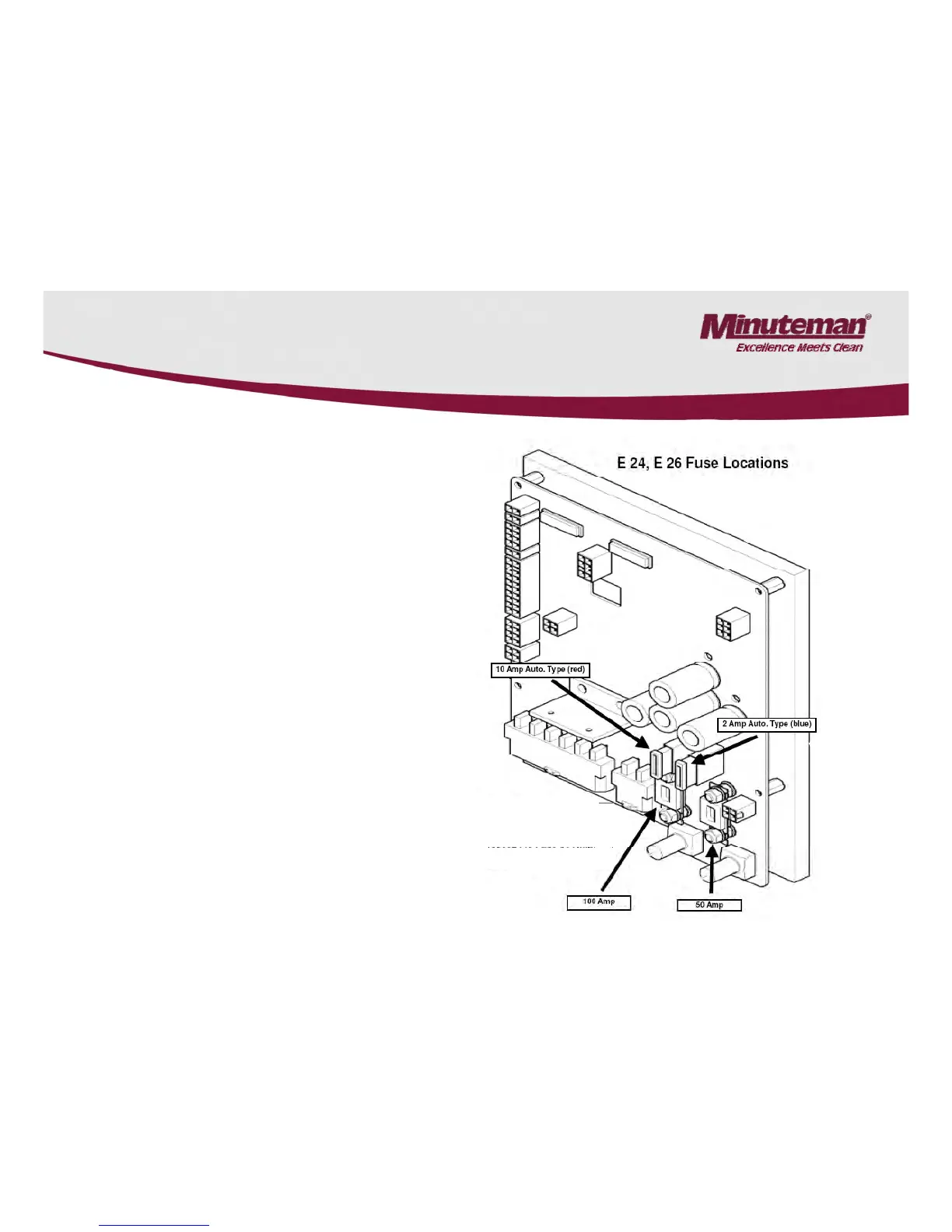

All the fuses are located on the main
control circuit board.
Part Numbers
00059580 Fuse 125 Amp 80 Volts (Brush & Vac. Motors)
00972420 Fuse 100 Amp. 80 Volts (Brush & Vac. Motors)
00733630 F 10 A 32 80 V lt (P & W t S l )
00733630
F
use
10
A
mp.
32
or
80
V
o
lt
s
(P
ump
&
W
a
t
er
S
o
l
.
)
00902440 Fuse 50 Amp. 80 Volts (Drive)
00972430 Fuse 2 Amp. 32 Volts (Switch)
Note: If the 2 amp fuse blows,
check the main contactor for
bad contacts.
Warning: Do not substitute the value
of the 50, 100 and 125 amp fuses.
They must be correct voltage and
amperage Doing so will produce
amperage
.
Doing
so
will
produce
system errors. Fuses are used as
shunts in the circuit.
