4.1 Squeegee Adjustment
Correct squeegee adjustment is prerequisite for optimal suction results.
Before ad
j
ustment first check the
p
itch of the s
q
uee
g
ee and re-ad
j
ust if re
q
uired.
jpqg
jq
1. Place machine on level ground.
2. Loosen nut of the adjustment screw (pos. 3, Fig. 5/1) and adjust sealing strips in
parallel to the floor. Turn adjustment screw clockwise: clearance between squeegee
blade and floor broadens in the center. Turn ad
j
ustment screw counte
r
-clockwise:
j
clearance between squeegee blade and floor narrows in the center.
3. Turn machine on, lower squeegee and check drying pattern.

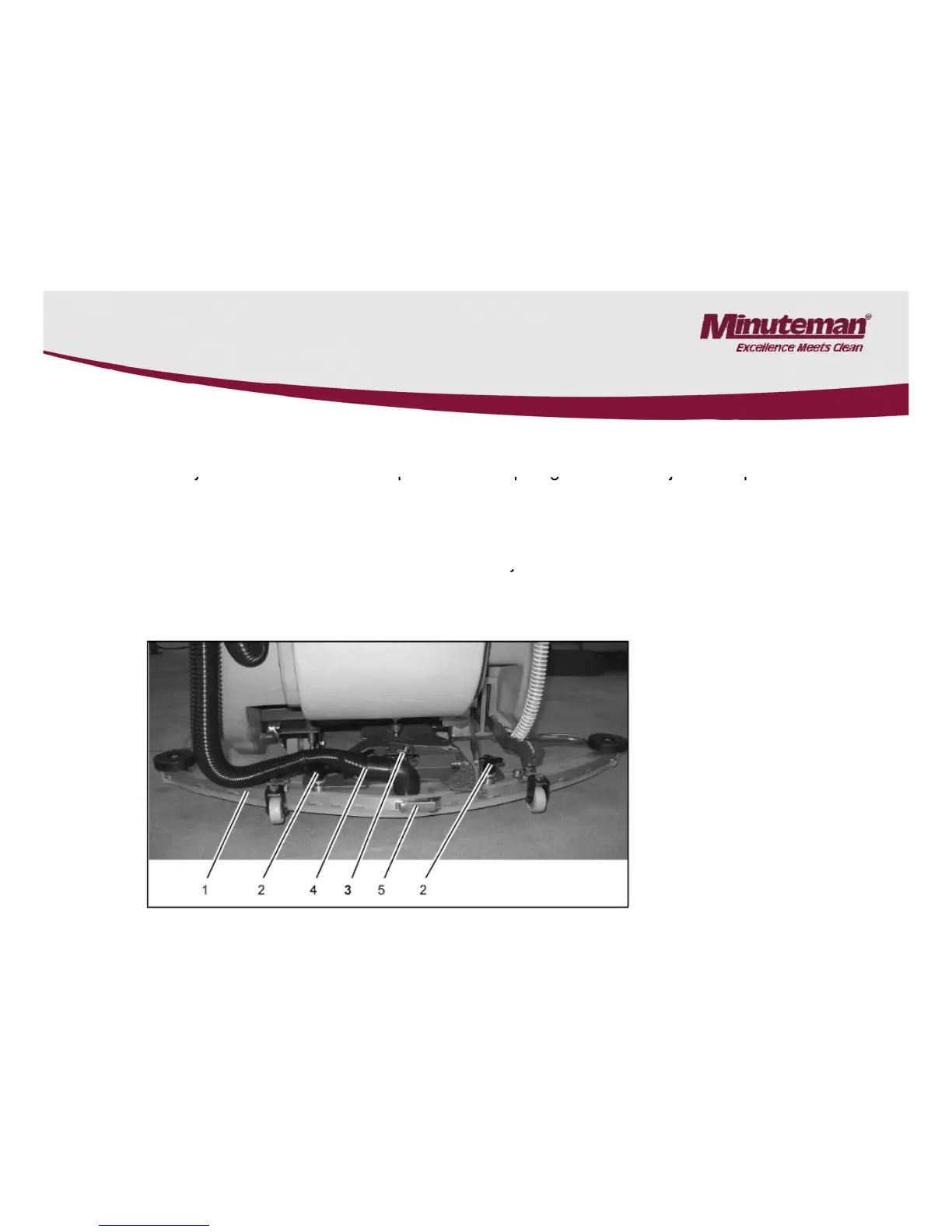

1 Squeegee
2 Star-shaped knob
3 Adjustment screw
4 Suction hose
4
Suction
hose
5 Toggle-type fastener
Fig. 5/1
