Minuteman E24 - Page 49

11.5 Programming the Charger Cont.
9. To save the desired mode, press and hold the button for more than 5 seconds
and release. The picture on the display will blink rapidly indicating the setting
has been stored.
has
been
stored.
10. To end the programming mode function, wait about 60 seconds. The charger
will automatically return to its normal operation.
11

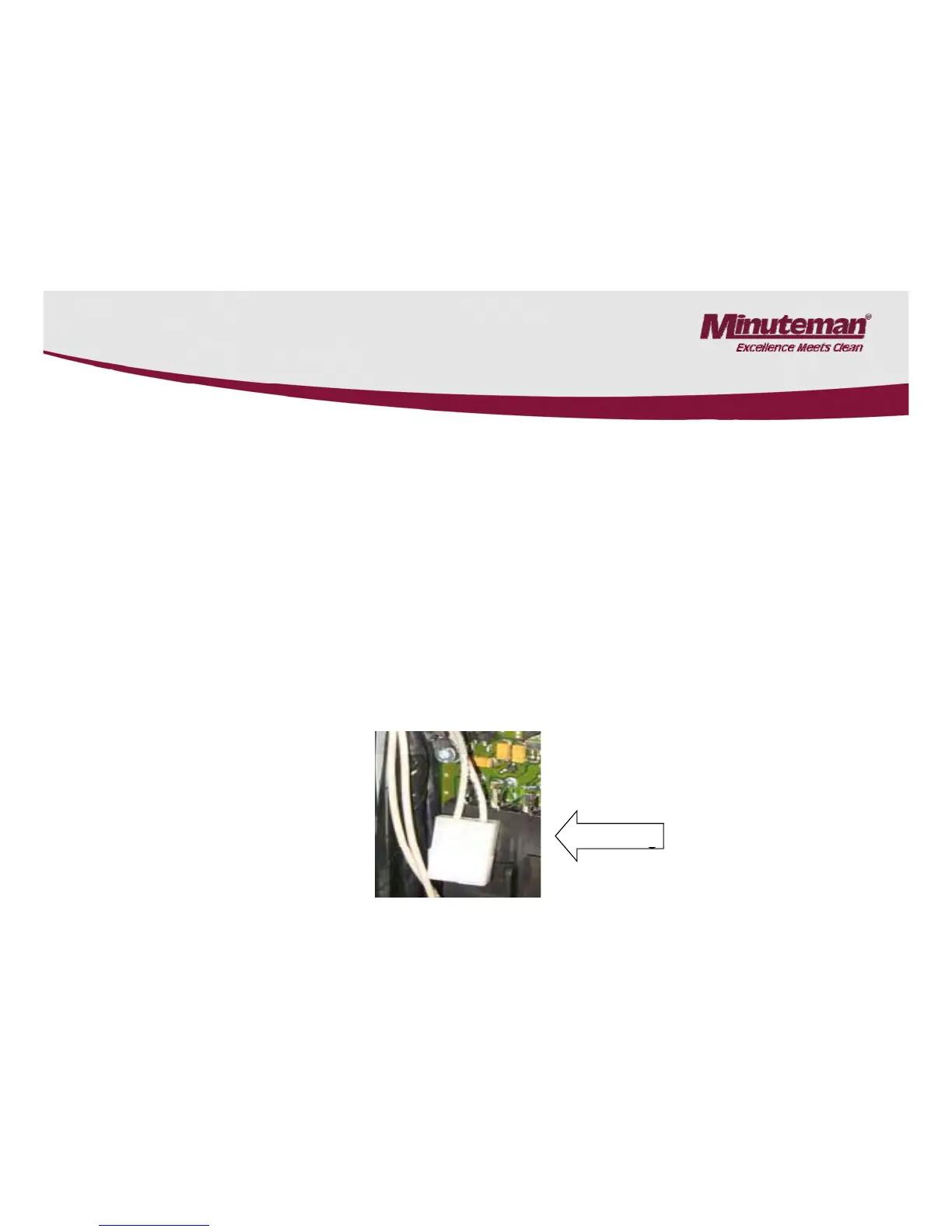

Unplug the X31 jumper connector on the main control board harness for the gel
11
.
Unplug
the
X31
jumper
connector
on
the
main
control
board
harness
for
the
gel
and AGM maintenance free batteries. Connect the X31 plug to the harness for
the lead acid type batteries. Secure the X31 connector with a plastic tie in the
control board area when not in use.
12. Install the plastic cover with the nut and washer.
13. Install the two screws and secure the charger/controller cover to the original
position.
X31 Plu
g
g
49
