1.2.6. Additional Information
Please do not hesitate to contact MIR if you require additional information.
Manufacturer’s address:
MIR srl
Medical International Research
Via del Maggiolino, 125
00155 Rome
Italy
Tel.: +39/06/2275 4777
Fax.: +39/06/2275 4785
Email: mir@spirometry.com
1.2.7. Installation
Warning:
Before using spirodoc check internal battery pack charge level.
 turn on the SPIRODOC by pressing and release the
power key placed in the middle on the side of the
device

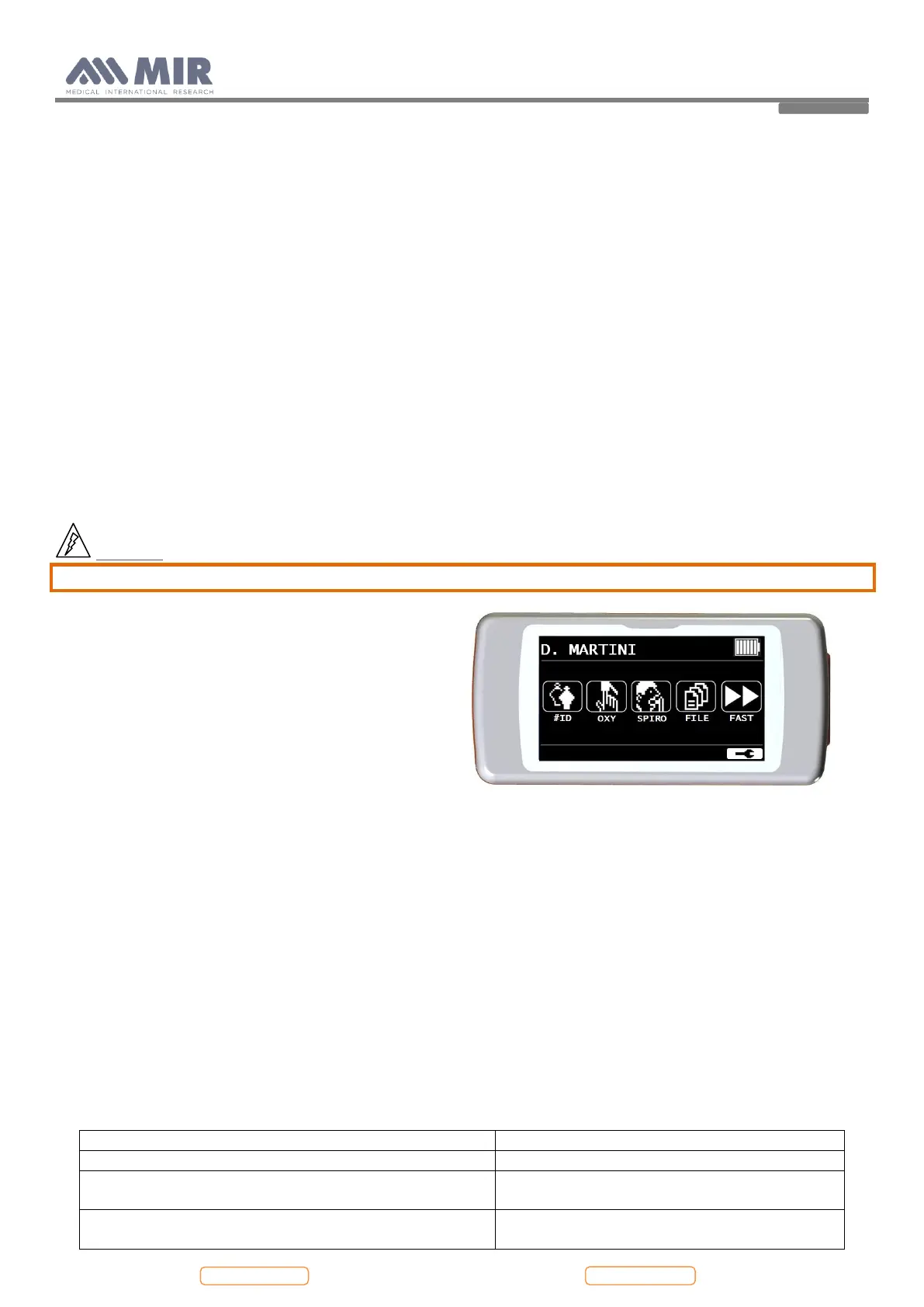

 Check battery level on the upper right of the display
as shown in the image.
1.3. GENERAL
spirodoc is an “open circuit system” for the measurement of inspiratory and expiratory lung function parameters and
oximetry values, such as pulse rate and SpO2. It is suitable for basic lung function analysis of the mechanical respiratory
tract parameters. Three different respiratory tests can be performed:
 the forced vital capacity test (FVC),
 the slow Vital Capacity test (VC/IVC)
 the Maximum Voluntary Ventilation test (MVV)
spirodoc has been designed and manufactured to ensure the highest level of safety and the unit fully complies with the
stringent international EN 60601-1 and EN 60601-1-2 standards.
1.3.1. Technical Data
1.3.1.1. spirodoc unit
Max. current inside the unit
90 mA (with LCD at the maximum lightness)
Internal batteries
Rechargeable Battery pack Li-ion 3.7 V 1100mAh
Approval
CE 0476 EC mark for Medical Devices
FDA
Dimensions
101x48x16 mm;
turbine housing 46x47x24 mm
